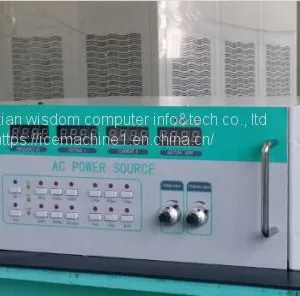

AF400M Series Static Frequency Converter / AC Power Supply
AF400M is one of the most popular 400Hz static frequency converters. AF400M is designed to change conventional 50 Hz or 60 Hz electrical energy to 400hz or 300-500hz adjustable.
It integrates IGBT and other modules made by Mitsubishi, Siemens, and combines analog signal control design together for conpact size and higher reliability.
AF400M as a power source is ideal for testing aviation electronics and aviation electrical equipment.
It can simulate 115V 400Hz aircraft power with clean sine wave output and excellent line and load regulation, high efficiency and low harmonic distortion.
Main Features
★Isolated output transformer, suitable for any unbalance loads.Every
single phase can be used independently.
★ Compatible with both 50Hz and 60Hz power supply network.
★ Galvanically isolated, low harmonic distortion.
★ Pure sine wave, sinusoidal output.
★ Display real-time data:voltage, current, frequency and power
Models Selection

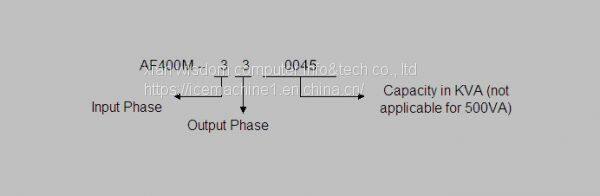

The Acsoon® AF400M series power supply model designation is shown below:
Acsoon® AF400M series power supply single units are available with the following capacities:
Single phase output: 1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA
Triple phase output: 1kVA, 3kVA, 6kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA
Input
★ Voltage: 1 phase 120V ＋/-15％ 1 phase 220V ＋/-15％ 3 x220V/380V ＋/-15％3 x127V/220V ＋/-15％ Or as your specific requirement ★ Frequency: 50Hz, 60Hz, 40-70Hz ★ Power factor: ≥0.8 (standard type) ≥0.9 (12-pulse type, optional item)
| Output
★ Voltage: 1 phase: 115V fixed 1 phase: 97-132V adjustable 3 phase: 3 x115V(L-N)/200V(L-L) fixed 3 phase: 98-133V(L-N) /170-230V(L-L) adjustable Or 21/36 V can be customized. ★ Frequency: 400Hz fixed, or 300-500hz adjustable ★ Voltage Regulation: ＋/-1％ ★ Frequency Regulation: ＋/-0.1％ ★ Distortion: clean sine wave THD<3％@ linear load
|
