Allen-Bradley 5204-DFNT-PDPMV1 EtherNet/IP Communication Module

Allen-Bradley 5204-DFNT-PDPMV1 EtherNet/IP Communication Module photo-1

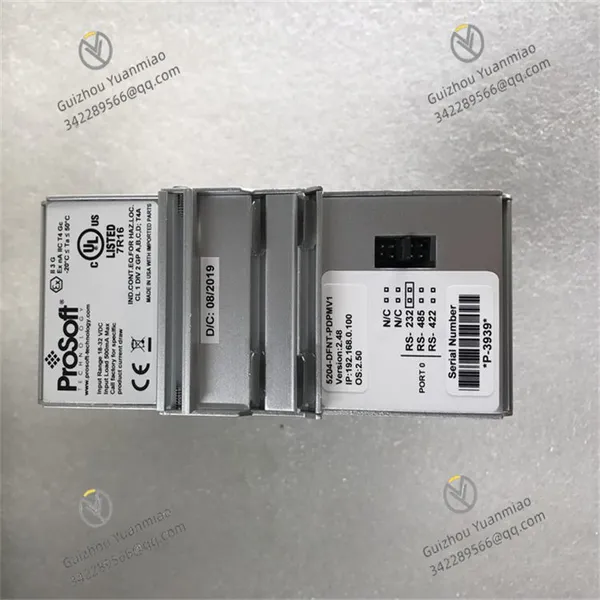

Allen-Bradley 5204-DFNT-PDPMV1 EtherNet/IP Communication Module photo-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature 0°C to 60°C (32°F to 140°F)

Humidity 5% - 95% (non - condensing)

Input Voltage 24V DC

I. Overview

5204-DFNT-PDPMV1 is a high-performance EtherNet/IP to PROFIBUS DPV1 master gateway. In today's complex and diverse industrial automation systems, devices with different communication protocols often have difficulty working together. This gateway plays a crucial "bridge" role, successfully establishing a communication channel between the EtherNet/IP network and the PROFIBUS DPV1 bus, effectively promoting data transmission and precise control between industrial automation devices. As a standalone DIN rail-mounted protocol gateway, it has one Ethernet port and one DB9F port configurable as a PROFIBUS DP master. This carefully designed port layout provides great convenience for connecting different types of devices, making the construction of industrial automation systems more flexible and efficient.

II. Technical Parameters

(1) Power Parameters
Input Voltage: The rated voltage is 24V DC, and the allowable input voltage range is between 18V DC and 32V DC. The device is equipped with positive, negative, and ground (GND) terminals, which can be connected using a 2.5mm screwdriver blade. This wide voltage adaptation range enables the product to stably obtain power support in different industrial power supply environments, ensuring the normal operation of the device and reducing the probability of failures caused by voltage fluctuations or mismatches.

Current Load: Under the maximum input voltage condition of 32V DC, the maximum current load is 500mA. This parameter clearly defines the upper limit of power consumption of the device under extreme working conditions, helping engineers accurately evaluate power supply requirements and reasonably configure power supply equipment during the system design phase to ensure the stable operation of the entire system.

(2) Environmental Adaptability Parameters
Operating Temperature: The operating temperature range of the device is 0°C to 60°C (32°F to 140°F). Within this temperature range, the internal electronic components and circuits of the device can maintain good performance, ensuring accurate data transmission and stable realization of device functions. At the same time, in terms of storage temperature, it has a wider tolerance range, reaching -40°C to 85°C (-40°F to 185°F). This means that during transportation, long-term idle storage, or in extreme temperature environments waiting for installation, the product can effectively resist potential damage caused by temperature changes, significantly improving the applicability and reliability of the product and reducing the risk of device damage due to temperature factors.

Protection Level and Special Environmental Adaptability: The gateway has excellent protection performance, with a waterproof/dustproof rating of IP67, which can effectively resist dust intrusion and water immersion under certain pressure and time. It is suitable for relatively harsh industrial production environments, such as workplaces with a lot of dust or possible water splashing. In addition, it is specifically designed for extreme temperature (-40°C to +70°C) environments, high vibration/impact environments, and hazardous locations (compliant with UL C1D2, ATEX Zone 2 standards). In these special environments, the device can still maintain stable operation, demonstrating excellent environmental adaptability and providing a solid guarantee for the continuous and reliable operation of industrial automation systems under complex working conditions.

(3) Communication Parameters
EtherNet/IP Protocol: The EtherNet/IP protocol driver fully supports the explicit message implementation mechanism of the protocol. Its Ethernet port, under user configuration, can not only act as a client to establish communication connections with other devices and actively initiate data requests and interactions but also serve as a server to receive and process connection requests and data access from other devices. This flexible configuration method makes it an extremely powerful data transmission tool, greatly enhancing the communication flexibility and adaptability of the device in the EtherNet/IP network and being able to meet data interaction needs in different industrial automation application scenarios.

PROFIBUS DP Master Protocol: The PROFIBUS DP master protocol driver strictly complies with the IEC 61158 standard, and can fully support all functional specifications of the master station in both single-master network architectures and more complex multi-master network environments. Moreover, this module fully supports the DPV1 specification, enabling it to communicate efficiently and stably with various slave devices that meet the DPV1 standard, realizing precise control and data collection of slave devices, and effectively ensuring the stable operation of the PROFIBUS DPV1 bus in industrial automation systems and the accuracy of data interaction. At the same time, the gateway supports the connection of up to 128 DPV1 slave devices, demonstrating strong network expansion capability and meeting the demand for the number of device connections in large-scale industrial automation projects. In addition, it also has an EtherNet/IP scanner function with an I/O connection capacity of up to 256 bytes, which can quickly and accurately scan devices in the network and read data, further improving the efficiency of data transmission and processing.

III. Functional Features

(1) High-Speed Data Transmission
The 5204-DFNT-PDPMV1 gateway fully supports high-speed data transmission, enabling extremely fast data exchange between the EtherNet/IP network and the PROFIBUS DPV1 bus. This high-speed data transmission characteristic ensures that the transmission delay of data between different networks is minimized, achieving seamless integration with the PROFIBUS DPV1 bus. Whether in industrial control processes with extremely high real-time requirements or in complex automation systems that require rapid interaction of large amounts of data, it can ensure the stability and real-time performance of data transmission, effectively improving the response speed and operating efficiency of the entire industrial automation system, and providing a solid data transmission foundation for efficient and precise control of the production process.

(2) Powerful Data Processing Capability
With its advanced hardware architecture and optimized software algorithms, the gateway has strong data processing capability. It can efficiently handle data transmission tasks from multiple PROFIBUS DPV1 slave devices simultaneously, quickly parse, organize, and forward data collected from different slaves, and accurately distribute control commands from the EtherNet/IP network to corresponding slave devices. This excellent data parallel processing capability greatly improves the data processing efficiency of the entire system, avoids system lag or delay caused by excessive data volume or untimely processing, ensures that the industrial automation system can still operate stably and efficiently under complex working conditions, and fully meets the strict requirements of modern industrial production for data processing speed and accuracy.

(3) Rich Interface Support
The gateway provides users with a variety of interface options, supporting multiple mainstream industrial communication interfaces such as EtherNet/IP and PROFIBUS DPV1. This multi-interface support feature enables it to easily adapt to different types of industrial automation equipment. Whether it is advanced intelligent equipment using the EtherNet/IP protocol or traditional industrial equipment based on the PROFIBUS DPV1 bus, they can achieve interconnection through this gateway. Users can flexibly select and connect corresponding interfaces according to actual industrial automation application scenarios and equipment configuration requirements, greatly improving the convenience and flexibility of system integration, reducing the difficulty and cost of system construction caused by interface incompatibility, and providing strong support for the diversified and personalized construction of industrial automation systems.

(4) Convenient Operation and Maintenance
The 5204-DFNT-PDPMV1 gateway is equipped with a user-friendly human-machine interface and a series of easy-to-operate functional features. Through these convenient operation interfaces and functions, users can easily set parameters for the device, flexibly adjust key parameters such as communication parameters of the gateway in different network environments and connection configurations of slave devices according to actual industrial production needs. At the same time, users can use this interface to monitor the operating status of the device in real-time, such as key indicators like data transmission rate, connection stability, and device load, to keep abreast of the device's working conditions. In terms of equipment maintenance, its built-in diagnostic function can quickly detect and locate potential fault points, providing maintenance personnel with detailed fault information and troubleshooting suggestions, greatly shortening the time for equipment fault detection and repair, reducing maintenance costs, and improving the overall availability and reliability of the industrial automation system.

(5) Integrated Web Server
The gateway has a built-in integrated Web server. This innovative design provides users with a new and convenient way of configuration and monitoring. Users can easily access the server within the local area network through a standard Web browser without installing additional complex configuration software or drivers. On the Web interface, users can intuitively perform operations such as device parameter configuration, operating status monitoring, and fault diagnosis. This Web-based remote management method breaks the spatial limitations of traditional device configuration and monitoring methods, enabling engineers to manage and maintain the device in real-time as long as they can access the network in the same local area network as the gateway, greatly improving work efficiency and providing great convenience for remote operation and maintenance of industrial automation systems.

Product Tags: 5204-DFNT-PDPMV1
