Allen-Bradley 1756-PSCA2 Chassis Adapter Module

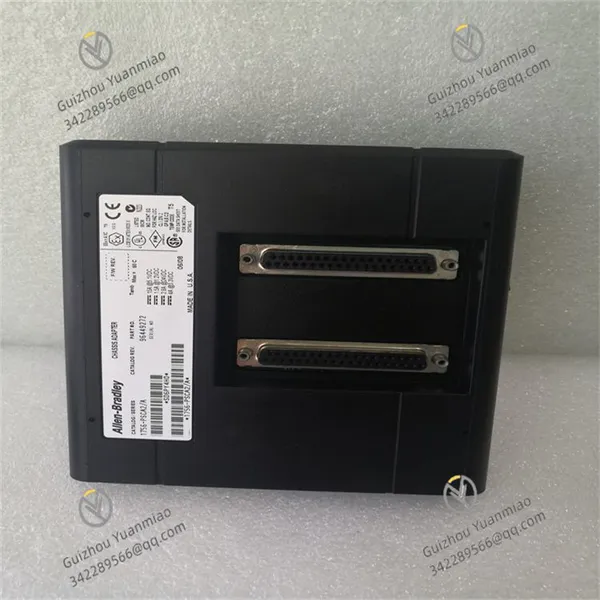

Allen-Bradley 1756-PSCA2 Chassis Adapter Module photo-1

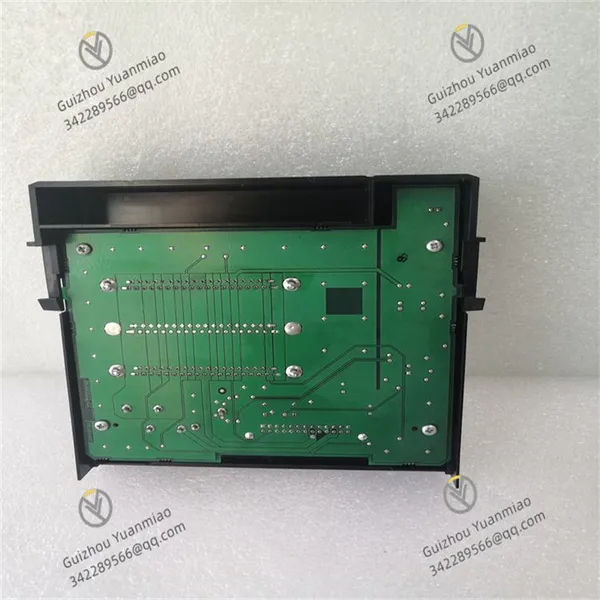

Allen-Bradley 1756-PSCA2 Chassis Adapter Module photo-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature 0°C to 60°C

Humidity 5% - 95% (non - condensing)

Power Input 24V DC

I. Overview

1756-PSCA2 is a key power supply module in Rockwell Automation's ControlLogix series. Its main function is to provide stable DC power for various modules on the ControlLogix rack (including controllers, input/output modules, communication modules, etc.), and it serves as the "energy hub" ensuring the normal operation of the entire automation control system.

This module has excellent compatibility with racks and other modules of the ControlLogix series, enabling seamless integration. It features efficient power conversion capability and outstanding stability, and can continuously supply power to the system in complex industrial environments, ensuring stable operation of all modules. With its reliable performance, comprehensive protection mechanisms, and wide environmental adaptability, 1756-PSCA2 is widely used in various control systems in the industrial automation field, such as large-scale production line control, complex process control, and smart factory equipment control.

II. Technical Parameters

Input voltage range: It supports AC input, and the input voltage range is usually 85V AC - 264V AC (specific parameters are subject to the product manual). This wide voltage range design allows it to adapt to grid voltages in different countries and regions, enhancing the versatility and application range of the module.
Output voltage and current:

The main output voltage is 5V DC, which is the standard working voltage for most modules in the ControlLogix series. The output current can reach 20A (specific parameters are subject to the product manual), which can provide sufficient power for a large number of modules on the rack.
Some models may provide 24V DC auxiliary output for powering small sensors, actuators and other devices. The output current is generally 2A (specific parameters are subject to the product manual), meeting the power supply needs of low-power devices.
Power output: The rated output power is usually 100W (specific parameters are subject to the product manual), which can meet the power supply requirements of medium and large ControlLogix control systems and ensure stable operation of the system under full load conditions.
Efficiency: It has a high conversion efficiency, usually above 85% (specific efficiency value is subject to the product manual). It can effectively reduce energy loss, lower operating costs, reduce heat generation of the module itself, and extend the service life.
Protection functions:
Overcurrent protection: When the output current exceeds the rated value, the module will automatically limit the output current or cut off the output to prevent damage to the power module and connected equipment due to overload.
Overvoltage protection: If the output voltage rises abnormally and exceeds the set threshold, the module will activate the protection mechanism to avoid damage to downstream modules caused by high voltage.
Short-circuit protection: When a short-circuit fault occurs at the output end, the module can respond quickly and cut off the output. It can resume normal operation after the short-circuit fault is eliminated, ensuring system safety.
Over-temperature protection: When the internal temperature of the module exceeds the specified limit, it will automatically reduce the output power or stop output to prevent the module from being damaged due to overheating.
Undervoltage protection: When the input voltage is too low, the module will trigger protection to avoid abnormal operation of equipment caused by insufficient voltage.
Environmental adaptability:
Operating temperature: It can work stably within the temperature range of 0°C - 60°C, adapting to common temperature changes in industrial sites.
Relative humidity: It can operate normally in a relative humidity environment of 5% - 95% (non-condensing), suitable for humid production workshops and other environments.
Vibration and shock resistance: It complies with relevant industrial standards such as IEC 61131-2, has certain vibration and shock resistance capabilities, and can work reliably in industrial occasions with slight vibrations (such as near production lines and heavy machinery).

III. Functional Characteristics

Stable and reliable power supply output: 1756-PSCA2 adopts advanced power supply voltage stabilization technology, which can provide a stable 5V DC voltage for modules on the ControlLogix rack. The output voltage ripple is small, ensuring that controllers, I/O modules and other equipment work normally in a stable voltage environment, reducing system failures caused by power fluctuations, and improving the reliability of the control system.
Comprehensive protection mechanisms: It has multiple protection functions such as overcurrent, overvoltage, short-circuit, over-temperature, and undervoltage. It can quickly respond to various abnormal situations, cut off the output or limit the current in time, protect the power module and the entire control system from damage, reduce fault repair costs, and improve system safety.
High efficiency and energy saving: The high conversion efficiency can not only save energy and reduce the energy consumption cost of enterprises, but also reduce the heat generation of the module itself, reduce the thermal impact on the surrounding environment, extend the service life of the module, and is suitable for industrial scenarios with long-term continuous operation.
Convenient installation and integration: It adopts a standardized rack mounting method and can be directly installed in the power slot of the ControlLogix rack. The installation process is simple and fast, without complex wiring and debugging. It can seamlessly cooperate with other modules on the rack to quickly build a complete automation control system.
Intuitive status indication: The module is equipped with LED status indicators, which can clearly display the working status of the power supply, such as normal operation, overcurrent, over-temperature, short-circuit and other fault statuses. Operators can quickly judge the operation status of the power module through the indicators, facilitating daily maintenance and fault troubleshooting of the system, and improving maintenance efficiency.
Wide voltage input adaptation: It supports a wide input voltage range of 85V AC - 264V AC, enabling it to be used in different power grid environments without replacing the power module due to different voltage standards, improving the versatility and flexibility of the module, and reducing the complexity of system integration.

IV. Application Scenarios

Large-scale production line automation: In large-scale production lines of industries such as automobile manufacturing and electronic appliances, 1756-PSCA2 provides stable power for ControlLogix controllers, a large number of digital and analog I/O modules, communication modules, etc., ensuring the smooth operation of the automated control process of the production line, realizing the collaborative work and precise control of equipment, and improving production efficiency and product quality.
Complex process control: In complex process control of industries such as chemical industry, petroleum, and metallurgy, it supplies power to ControlLogix system modules that control key parameters such as temperature, pressure, and flow, ensuring that the control system can collect data in real time, execute control commands, maintain the stability of the production process, and ensure production safety and product quality.
Smart factory equipment control: In smart factories, it provides power for ControlLogix control systems connected to various smart devices, sensors, and actuators, supporting the intelligent operation and management of the factory, such as equipment status monitoring, data transmission, and remote control, promoting the factory to achieve an efficient and flexible production mode.
Heavy machinery automation: In the automation control systems of heavy machinery such as mining machinery and engineering machinery, 1756-PSCA2 can supply power to control modules in harsh environments, ensuring the normal operation of systems such as operation control and safety monitoring of heavy machinery, and guaranteeing the safe operation and work efficiency of the equipment.

Product Tags: 1756-PSCA2
