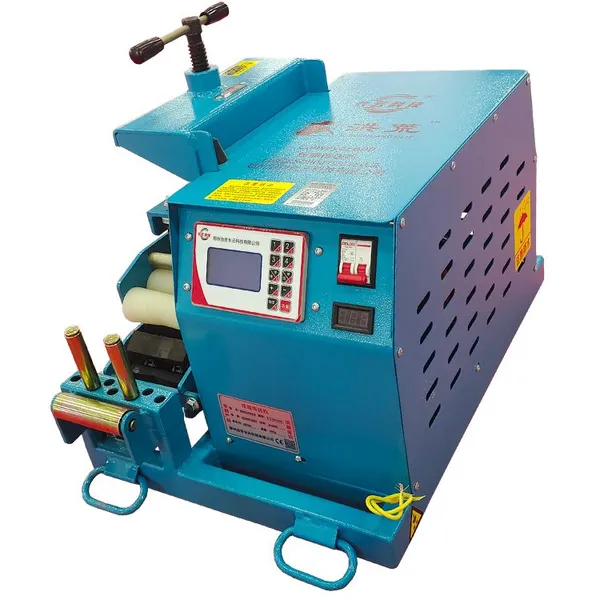

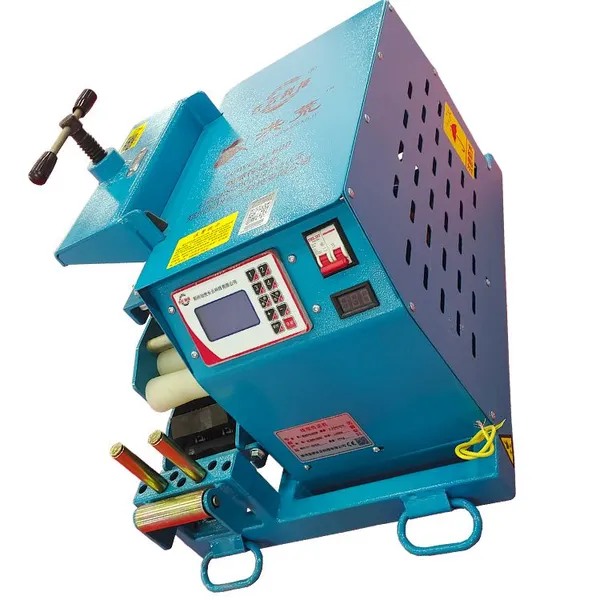

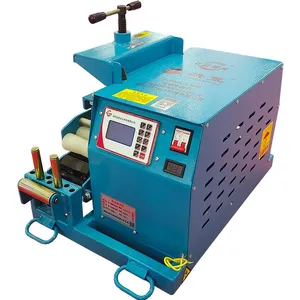

Conveyor Cable Conveyor - Conveyor 600 Honghuang Version
Manufacturer: Changyun Technology
Power Supply: AC380V/220V (dual - voltage), providing flexibility for different power environments.
Speed Regulation: It features 4 gear positions and stepless speed regulation. This allows for precise control of the cable - conveying speed according to different work requirements. The conveying speed ranges from 3 - 22m/min, with the optimal speed being 10 - 16m/min when using the 2nd and 3rd gears.
Control Mode: Equipped with both a control panel and a remote control, enabling convenient on - site and long - distance operation. In addition, it supports multi - machine coordinated control, which is highly efficient for large - scale cable - laying projects.
Power: With a power of 1500W, it can provide strong power support for cable conveying.
Maximum Tensile Force: The maximum tensile force reaches 3800N, ensuring stable and reliable cable conveying even for thicker and heavier cables.
Cable Diameter Compatibility: It can handle cables with a diameter ranging from 1 - 10cm, covering a wide range of cable types.
Dimensions and Weight: The external dimensions are 74X46.5X55.5cm, and the net weight is 86kg, making it relatively compact and easy to move and install.
Product Advantages:
High - performance Conveying: It has a large tensile force, fast speed, and stable operation, which can effectively improve work efficiency.
Multi - machine Coordination: All series are equipped with a coordinated control module, allowing multiple machines to work in a team, reducing labor costs and improving the overall efficiency of cable - laying projects.
Convenient Operation: The external antenna and panel protection cover are designed for better signal reception and equipment protection. The four - gear control combined with stepless speed regulation provides a wide speed range and a broad application scope.
It should be noted that the product parameters are closely related to the working conditions. Different working conditions, such as cable slippage or environmental changes, may lead to differences in parameters.
