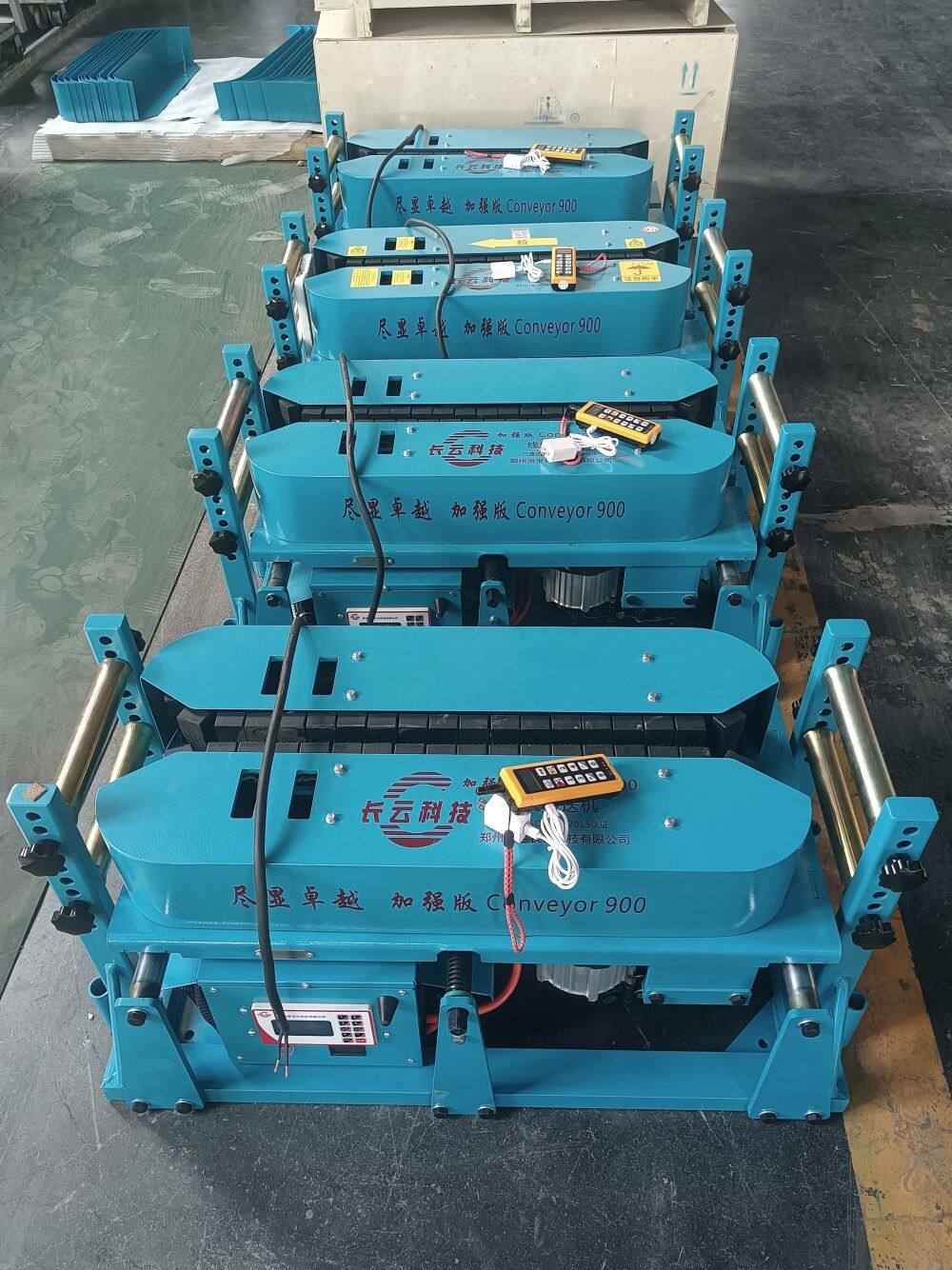

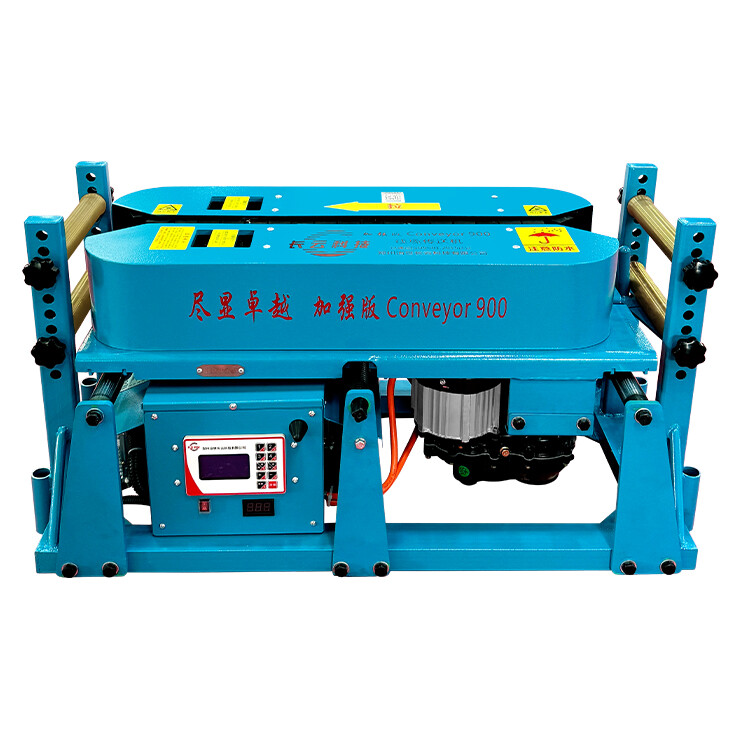

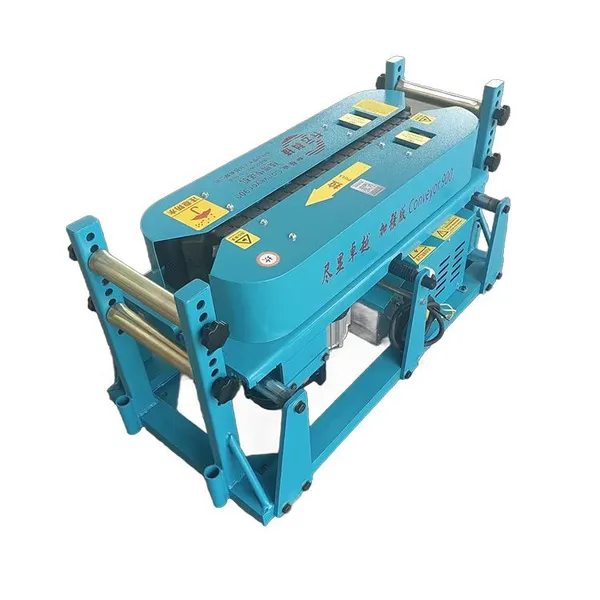

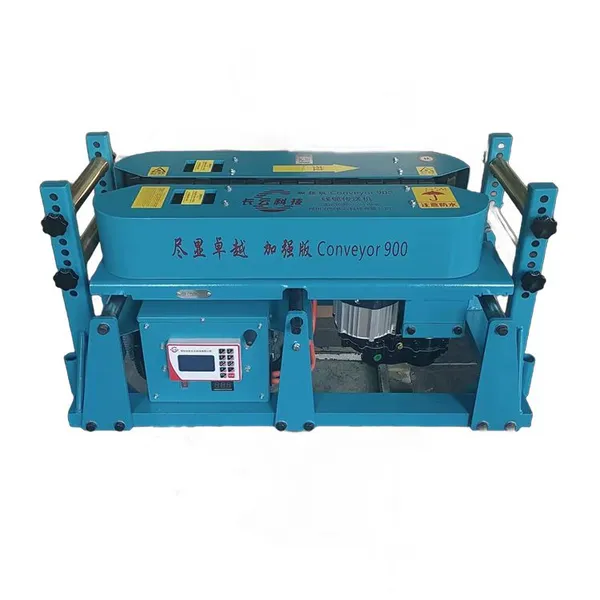

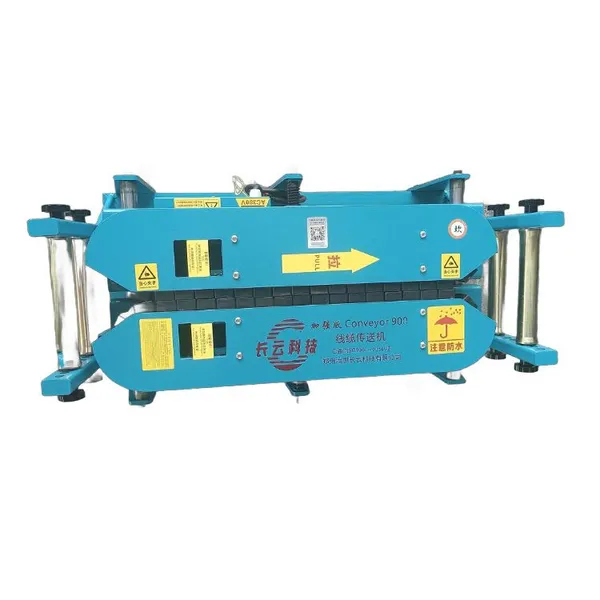

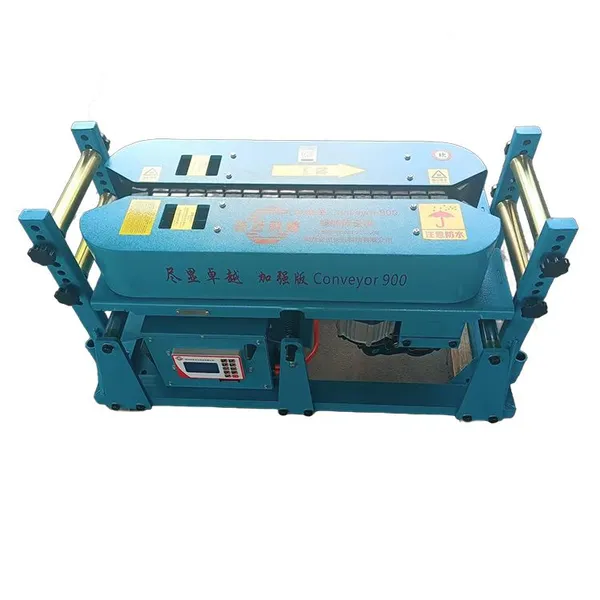

Conveyor Cable Conveyor - Enhanced Version 900
Brand: Changyun Technology
Model: Enhanced Version 900
Power Supply: AC380V (standard); AC220V (customizable)
Speed Adjustment: 4 gear positions + stepless speed - regulation
Control Method: Control panel + remote control
Power: 1800W x 2
Conveying Speed: 4 - 26m/min
Optimal Speed: 10 - 16m/min (2nd and 3rd gears)
Maximum Tensile Force: 8000N
Cable Diameter: 2 - 24cm
Overall Dimensions: 106.4X57X53cm
Net Weight: 214kg
This conveyor cable conveyor features a large tensile force, high speed, stable operation, and low noise. Equipped with dual pure copper core motors, it can achieve a maximum conveying tensile force of 8000N. The speed can be freely adjusted within the range of 4 - 26m/min. It adopts a four - gear stepless speed - change system that can be started and stopped at any time, and the push - pull function can be switched with one key. The whole series is equipped with a linkage control module, allowing multiple units to be controlled in linkage. With remote control, it is more convenient to operate. The high - quality wear - resistant rubber blocks are thick and wear - resistant without slipping. The control panel and remote control make the operation simpler and more convenient.
