Cable Conveyor
US$ 2,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
ChangLan
Model Number:
JSD
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
ChangLan
Model Number
JSD
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas

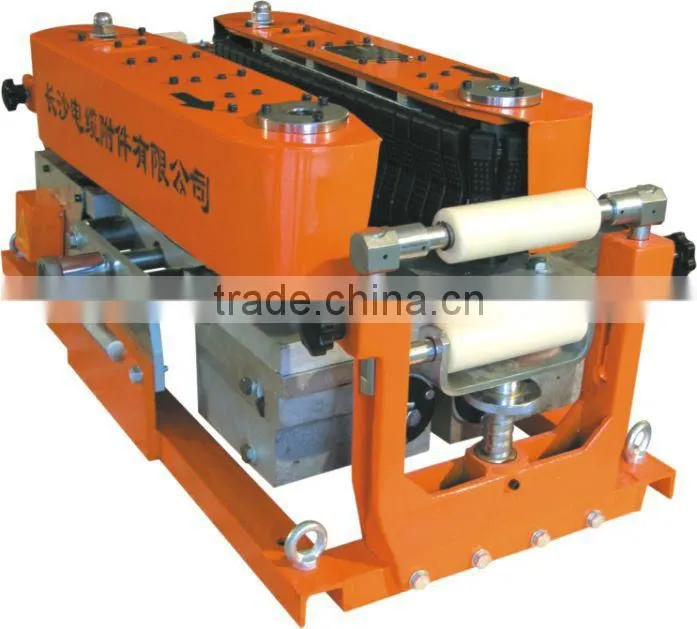

Cable Conveyor

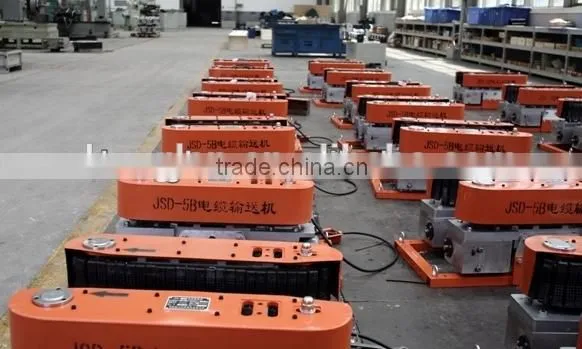

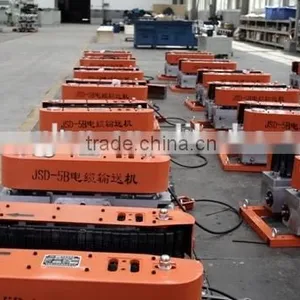

Model No.: JSD-3,JSD-5B, JSD-5C,JSD-8
Application: JSD is a motor-driven machine for laying power cable (or communication cable)
Characteristic:
- Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.
- The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.
- Equipped with adjusted barrel, easy to operate.
- It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.
- Low noise, small temperature rise for and easy maintenance.
- We can provide other matching product like JSD electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.
- one control box can control 12 pieces JSD-3; 8 pieces JSD-5B / JSD-5C; 6 pieces JSD-8. Each hauling machine should equip one branch box.
Technical Data
Specification |
JSD-3 |
JSD-5B |
JSD-5C |
JSD-8 |
Cable Diameter(mm) |
48-140 |
74-180 |
48-180 |
48-180 |
Rated Delivery Force (kN) |
3 |
5 |
5 |
8 |
Delivery Speed(m/min) |
6 |
|||
Clamping Force(N.m) |
50 |
|||
Power Supply (VAC) |
380 |
|||
Motor Power (kW) |
0.37X2 |
0.75X2 |
0.75X2 |
1.1X2 |
Net Weight (KG) |
155 |
165 |
185 |
270 |
Dimension (mm) |
920*500*370 |
970*485*385 |
1015*585*425 |
1238*680*475 |
Quality warranty & after sales service:
1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
