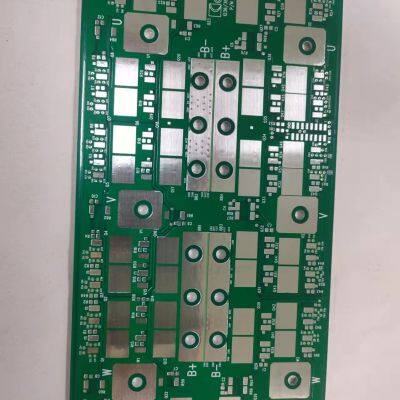

6layers of Copper With a Thickness of 210um, Thermoelectric Separation Aluminum BasedPCB

Product areas: Automotive new energy, high-power equipment, LED high-power lights

Layers: 4 layers of copper with a thickness of 210um, thermoelectric separation aluminum based

Board thickness: 2.89mm

Size: 268 * 132mm/1 * 1 pcs

Process structure: Caierde aluminum base+copper thickness 210um+Caierde 8W adhesive

Voltage withstand test: DC2500

The minimum mechanical hole is 0.65mm,

Minimum line width and spacing 10/8mil

Surface treatment: lead-free tin, green solder mask

Features: Heat dissipation, capable of withstanding high power currents

Usage: high-power equipment, high-power power supply, electrical appliances, high-power LED lights and other products
