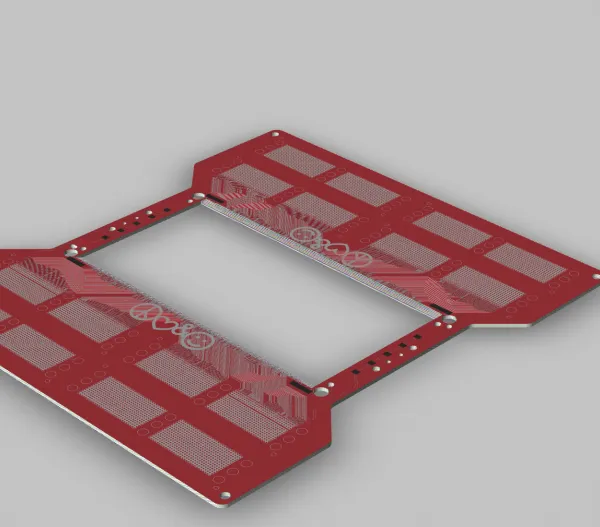

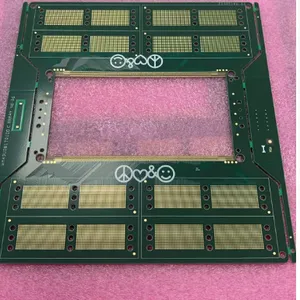

16 Layers, 3rd Order High-frequency Mixed Voltage, 6 Step PCB，multi-layer High-frequency High-speed Material PCB
Product Spotlights
8th layer 3rd order high-frequency mixed pressure step HDIPCBHigh frequency high-speed material PCB, single-layer high-speed material PCB, double-layer high-frequency PCB, multi-layer high-frequency high-speed material PCB, HDI high-frequency high-speed material PCB, multi-layer high-frequency high-
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Dielectric:
G-10
Transport Package:
Vacuum packaging
Specification:
295 * 128mm/1 * 1 pcs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Bay, China
Delivery Detail:
65 days
Related Products
-
8 Layers, 3rd Order HDI High-frequency Mixed Pressure Buried Copper PCB,8th Layer 3rd Order Optical Module Buried Resistance PCBNegotiableMOQ: 20 Units -
8 Layers, 2nd Order HDI High-frequency Mixed Voltage Buried Resistance PCB,8-layer 2nd Order Optical Module Embedded Gold Finger PCBNegotiableMOQ: 20 Units
-
8 Layers, 3rd Order HDI High-frequency Mixed Pressure Buried Capacitive Gold Finger PCBNegotiableMOQ: 20 Units
-
8 Layers of HDI High-frequency Mixed Pressure Buried Capacitor+buried Copper Block+gold Finger PCBNegotiableMOQ: 20 Units
-
6-layer High-frequency Multi-layer PCB，Taiyao TU872 High Speed MaterialNegotiableMOQ: 20 Units
Dielectric
G-10
Transport Package
Vacuum packaging
Specification
295 * 128mm/1 * 1 pcs
Origin
Shenzhen, Guangdong, China
If you have any needs, please feel free to contact China Chaosheng Electronics Company. Please contact us as follows:
whatsapp：+8613528819118
Skype live: pcb-fpcb88@163.com
E-mail : sales@chaoshengpcb-fpc.com
Contact: Mank. Li
Product areas: Communication equipment, optical communication
Layers: 16 layers, 3rd order high-frequency mixed voltage, 6 step PCB
Board thickness: 1.95mm
Size: 295 * 128mm/1 * 1 pcs
Process structure: Taiyao TU833 high-speed material, inner and outer copper thickness of 1OZ, impedance ± 10%,
Voltage withstand test: 100% short circuit test
The minimum mechanical hole is 0.15mm, and the laser hole is 0.075mm
Minimum line width and spacing of 3/4mil
Surface treatment: 2U nickel palladium gold, green solder mask
Features: Frequency closed signal interference, improved transmission speed, stable signal
Usage: Communication equipment, optical communication, instruments, meters, antennas, radars, aerospace, aviation, communication stations, 5G equipment, 5G communication, AI， Artificial intelligence, transmitters and other products
8th layer 3rd order high-frequency mixed pressure step HDIPCBHigh frequency high-speed material PCB, single-layer high-speed material PCB, double-layer high-frequency PCB, multi-layer high-frequency high-speed material PCB, HDI high-frequency high-speed material PCB, multi-layer high-frequency high-speed material mixed pressure PCB, HDI high-frequency high-speed material PCB
| FAQ | |||
| Serial Number | Question Point | Answer | |
| Q1 | Q: What information is required to make a PCB | CEGSATE: Gberber files for PCB production, product process instructions, such as material requirements, surface treatment requirements, finished product thickness requirements, PCB stack structure diagram for advanced products, copper thickness requirements for each layer, sample quantity requirements, batch order requirements, product application fields, and other related information are required | |
| Q2 | Q: What information does PCBA need to provide | CEGSATE: BOM report is required (including the brand, specifications, and model of the components), X and Y coordinate numbers of PCBA components, and processing requirements: Do we need to purchase the components on our behalf? Or customer supplied components? Do you need software burning? What is the required quantity? What is the monthly demand and other detailed information. | |
| Q3 | Question: Is my file secure? | CEGSATE: Your files are very secure, and we protect intellectual property rights for our clients throughout the entire process. All files provided by the customer will never be shared with any third party. | |
| Q4 | Q: What is the minimum order quantity? | CESGATE: We do not have a minimum order quantity for PO orders. We are able to handle small and large batches flexibly. | |
| Q5 | Q: What is your inspection method? How do you control the quality? |
CESGATE: In order to ensure the quality of PCB, FPC, and PCBA products, we use flying pin testing for small batches, which is usually used for samples and small batches; The inner circuit undergoes 100% optical inspection through AOI, and we have online AOI automatic inspection for intermediate inspection. Batch finished products undergo 100% inspection through E-SET testing rack. The appearance is 100% inspected by fully automated finished product testing equipment and FQC. PCBA undergoes automatic optical inspection (AOI), 100% X-ray inspection of BGA parts, and first article inspection (FAI). PCBA products that require software burning must undergo 100% comprehensive testing on the finished product testing rack according to product functional requirements before they can be shipped. |
|
| Q6 | Q: What standard should PCB be shipped according to? |
WCESGATE: e accept and store according to the international IPC-6012 Level 2 standard. If there are special requirements for Level 3 standards in the quotation, we accept and store according to the international IPC-6012 Level 3 standardWe accept and store according to the international IPC-6012 Level 2 standard. If there are special requirements for Level 3 standards in the quotation, we accept and store according to the international IPC-6012 Level 3 standard |
|
| Q7 | Q: May I ask how you package and ship? | 1：PCBVacuum packaging+separated white paper+moisture-proof beads+cardboard box 2：PCBVacuum packaging+white paper insulation+moisture-proof beads+tin vacuum packaging+cardboard box 3：PCBSpecial size PCB, vacuum packaging+separated white paper+moisture-proof beads+wooden frame or plastic bag packaging+separated white paper+moisture-proof beads+wooden frame 4: PCBA anti-static packaging 5: PCBA anti-static film+vacuum box packaging+shelving |
|
