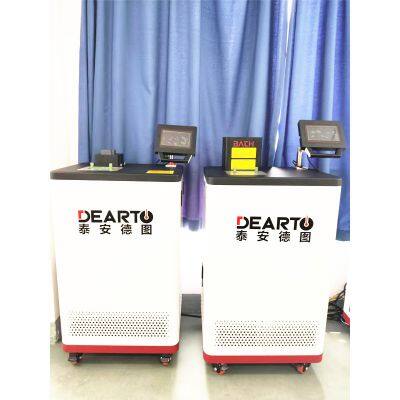

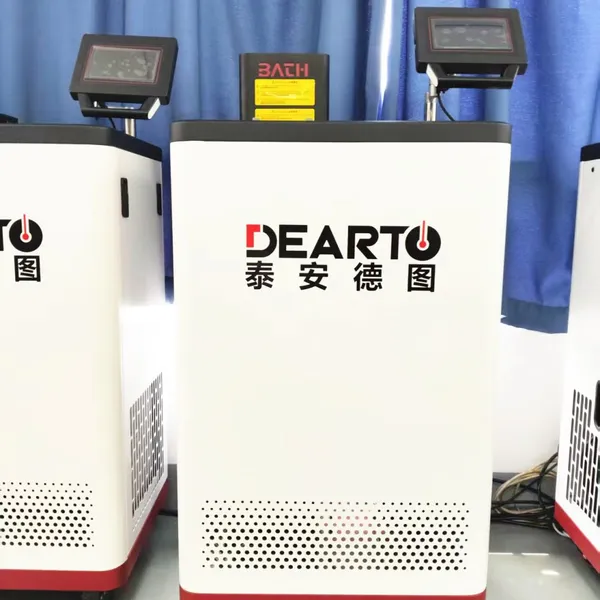

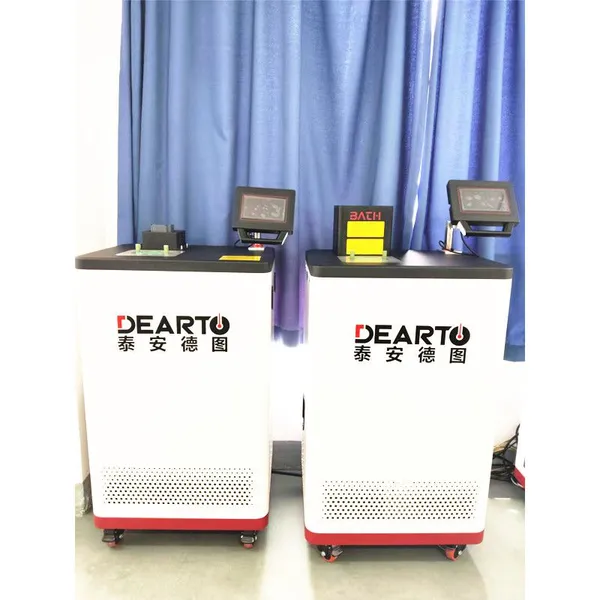

Our DTS-CT represents a new generation of intelligent constant temperature baths. Featuring a user-friendly touchscreen interface, this system delivers intuitive operation through its fully optimized human-machine interaction (HMI) design.
Key Specifications & Advantages:
Exceptional Temperature Range: Operates across -80°C to 150°C within a single, unified temperature field.
Universal Fluid Compatibility: Maintains outstanding stability and uniformity throughout its entire operating range using only one heat-transfer fluid.
Advanced Thermal Engineering: Incorporates dual-chamber construction with side-mounted stirring technology, enhanced by intelligent PID auto-tuning. This ensures optimal temperature homogeneity for precision calibration tasks.
Comprehensive Calibration Capability: Ideal for calibrating/verifying diverse temperature sensors including:
Low-temperature thermocouples
Industrial RTDs (Resistance Temperature Detectors)
Pressure-based thermometers
Bimetal thermometers
Liquid-in-glass thermometers
Core Technology Highlights:

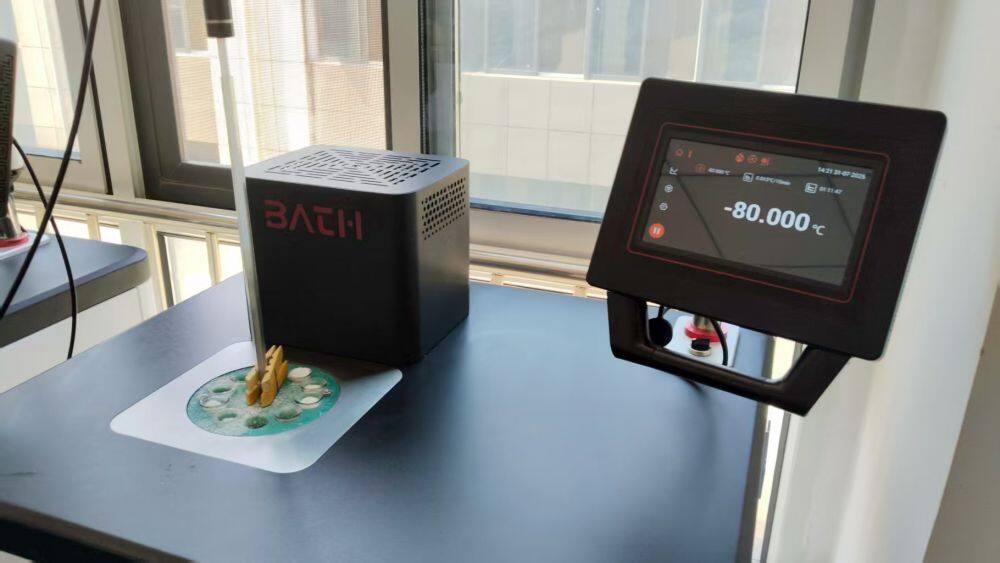

Smart Touchscreen Control: Simplifies complex operations.
Single-Fluid Performance: Eliminates fluid changeovers, boosting efficiency.
Superior Uniformity & Stability: Critical for reliable calibration results.
Dual-Chamber Design: Enhances thermal response and uniformity.
Precision PID Regulation: Ensures rapid settling times and minimal temperature fluctuation.
Function Features
Programmable Ramp Rates
Adjustable heating/cooling speeds with customizable ramp profiles. Maintains precise linear temperature transitions for stable calibration of thermal switches and controllers.Active Fume Extraction (Optional)
Integrated exhaust system ensures smoke-free operation, maintaining air quality for diverse laboratory environments.Intelligent Fluid Management
• Auto-fill to optimal level at startup
• Dual manual/automatic replenishment modes
• Low-level cutoff with audible/visual alarmsMulti-Point Temperature Compensation
Advanced calibration algorithms minimize deviation between bath temperature and reference standards (
Name |
Wide-Temperature Smart Thermostatic Calibration Bath |
||||
Model |
DTS - T150-20G |
DTS - T150-30G |
DTS - T150-40G |
DTS - CT150-60G |
DTS - CT150-80G |
|
Temp. range |
-20 ~ 150℃ |
-30~150℃ |
-40 ~ 150℃ |
-60 ~ 150℃ |
-80 ~ 150℃ |
|
Control style |
Smart touch screen |
||||
Stability |
± 0.01℃ / 10min |
||||
|
Radial uniformity |
≤ 0.01℃ |
||||
|
Axial uniformity |
≤ 0.02℃ |
||||
Working media |
L80N -150 |
||||
Working area |
φ130×480（mm） |
||||
Volume |
18L |
||||
Power |
2.8 kW |
||||
External dimensions |
660(L）×540（W）×1120（H）（mm） |
||||
Cooling down time |
20°C to -30°C @55min ; 20°C to -40°C @95min ; RT to 0℃ @30min |
||||
Ramp-up time |
-30°C to 0°C @20min ; 0°C to 180°C @40min |
||||
