DTSL-Pro Automatic Thermohygrometer calibration system Laboratory test chamber for temperature and humidity meter Automatic Calibration

🔴 Still struggling with tedious hygrometer calibrations?

• Constantly checking if equipment reaches stability?

• Manual reading, recording, and error calculation for each device?

• Untraceable raw data compromising report compliance?

Breakthrough Solution

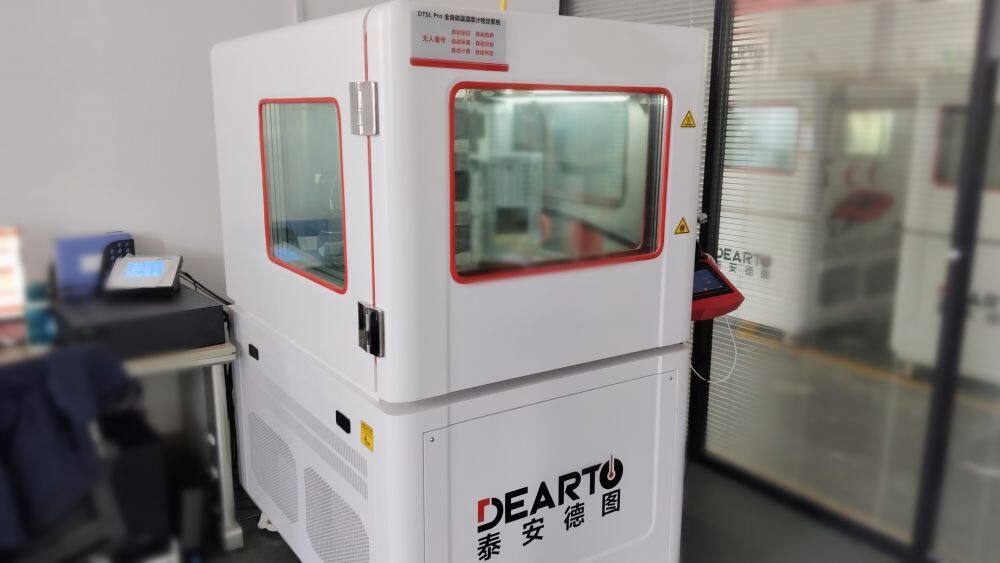

✅ DTSL Pro-svr3 Fully Automated Hygrometer Calibration System
— TAIDE's self-developed unmanned calibration platform
▸ End-to-end automation: Auto-positioning → Imaging → Data capture → Recognition → Calculation → Verification (Zero human intervention)
▸ Premium hardware integration: Detector calibration chamber + Precision dew point meter + Digital thermometer + AI vision robotic arm
▸ Full traceability: Automated raw data archiving for ISO/IEC 17025 compliance

Boost Efficiency by 90%
Replace manual monitoring with unattended precision calibration!

Functions

1.  Fully Automated Climate Control

• Initiate temperature/humidity regulation and visual verification with single-click operation

• Supports calibration at preset temperature/humidity points

• Allows custom parameter modification

• Features auto-resume function for interrupted calibrations

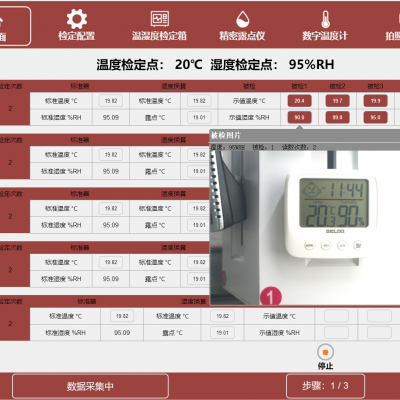

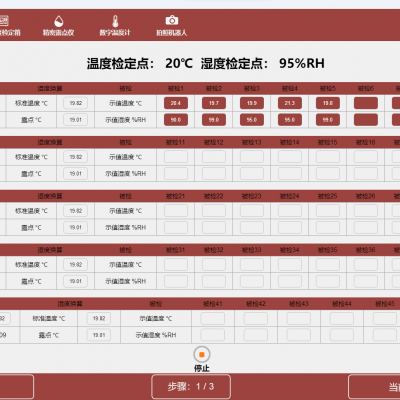

2. End-to-End Calibration Workflow

• Performs fully unattended calibration sequence:
  Automatic stabilization → Imaging → Recognition → Data logging → Calculation → Result validation

• Eliminates manual intervention throughout the entire process

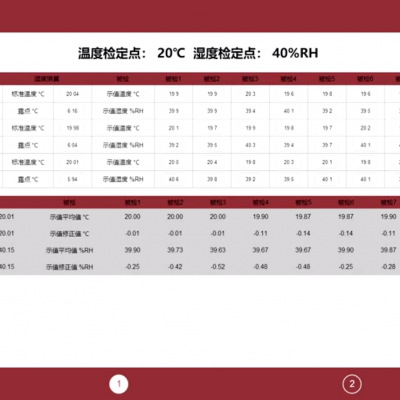

3. Data Verification & Correction

• Enables manual audit of calibration records

• Permits direct modification of temperature/humidity values in input fields

• Auto-recalculates results upon data adjustment

4. Centralized Device Management

• Provides unified management of submitted hygrometers

• Supports batch processing for device information registration

• Maintains complete audit trails for all calibrated instruments

5. Multi-Vendor Standard Instrument Compatibility

• Supports integration with precision dew-point meters and digital thermometers from multiple leading brands.

• System automatically collects measurement data from connected standard instruments.

6. Dual Positioning Modes

• Offers both automatic and manual positioning modes for thermohygrometers under test.

• Features an integrated intelligent rotary positioning mechanism:

• Automatically receives controller signals.

• Auto-adjusts relative position between device and sensors/camera.

• Enables fully automated data acquisition.

• Captures and archives positional images.

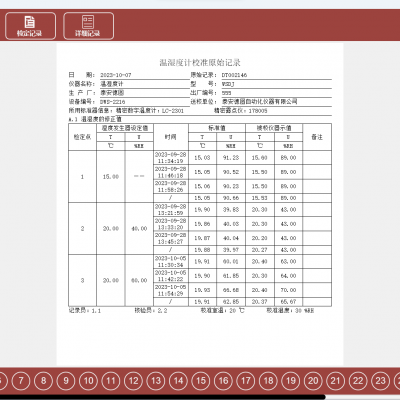

7. Customizable Reporting

• Preview & Print: View and print calibration records directly.

• Export & Customize: Export calibration records to Excel format for further modification and custom reporting.

8. Modular Database Management

• Provides centralized digital archiving for:

• Thermohygrometer instrument information

• Calibration data sets

• Associated image documentation

• All data is securely archived within the system database for efficient management and retrieval.
