US$ 400 - 630 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZZKD
Model Number:
GYY-50L
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Dalian Ningbo Shanghai Guangzhou etc.
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ZZKD
Model Number GYY-50L
Place of Origin Henan, China

Calibration Bath Supplier

Calibration Bath Supplier

Product Description

Function

Excellent temperature control, range, and uniformity.

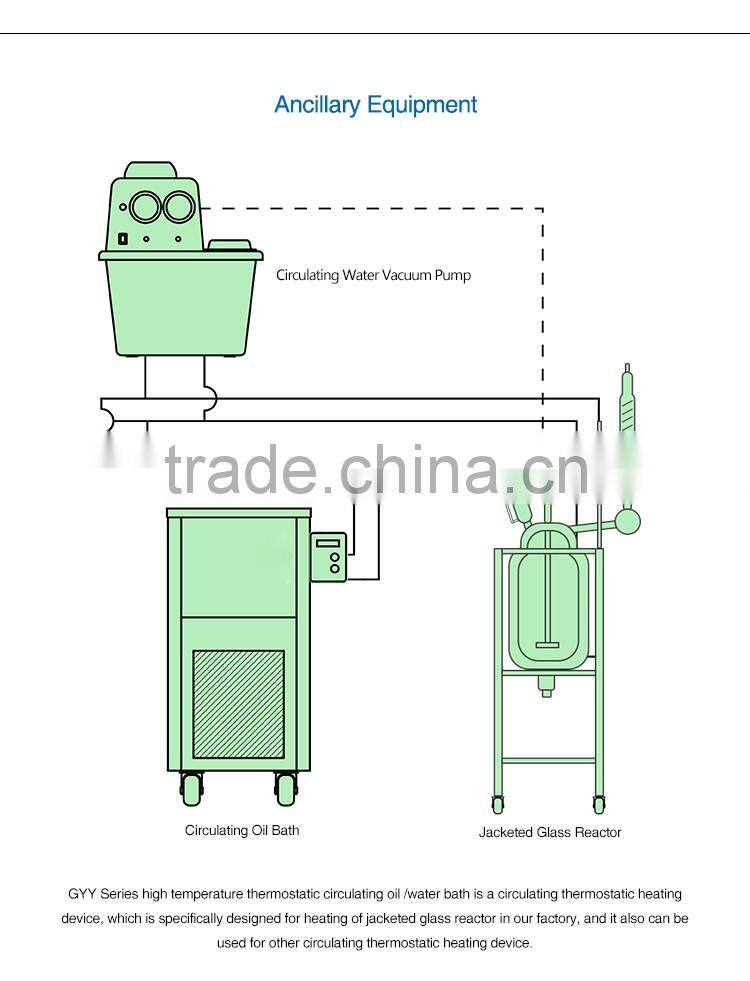

High temperature circulating oil bath is widely used for drying, concentration, distillation, dipping inchemical reagents, dipping medicines and biological products.

It can also be used to water bath temperature heating and temperature test, is necessary device for biology, genetics, viruses, aquatic products, environmental protection, medicine, health, biochemical laboratory, analysisroom, education scientific research.

Calibration Bath Supplier

Features

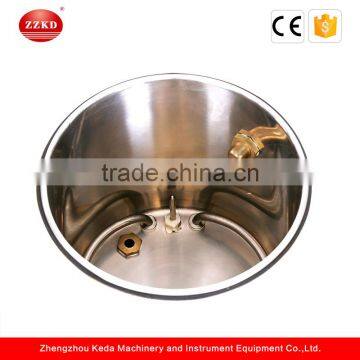

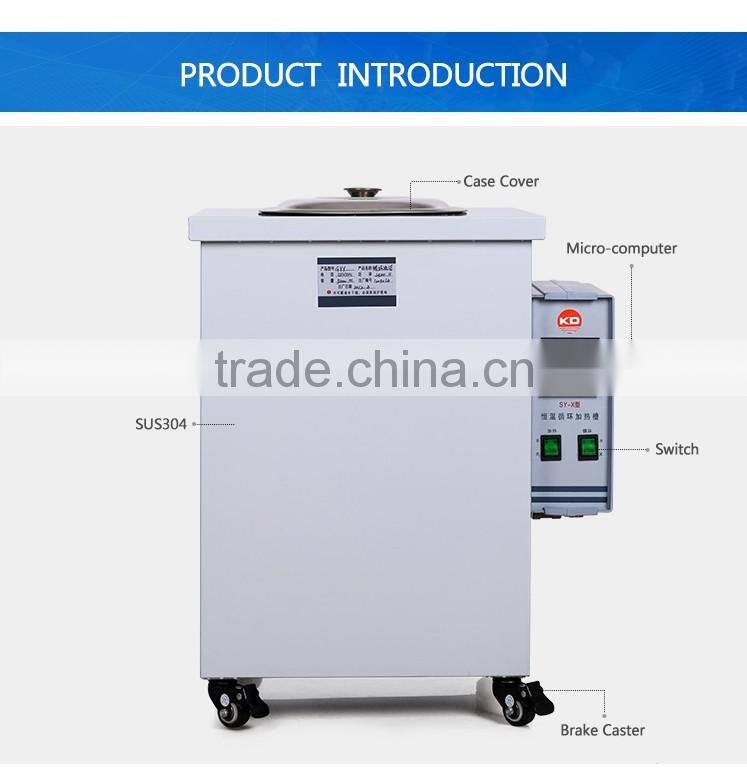

1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.

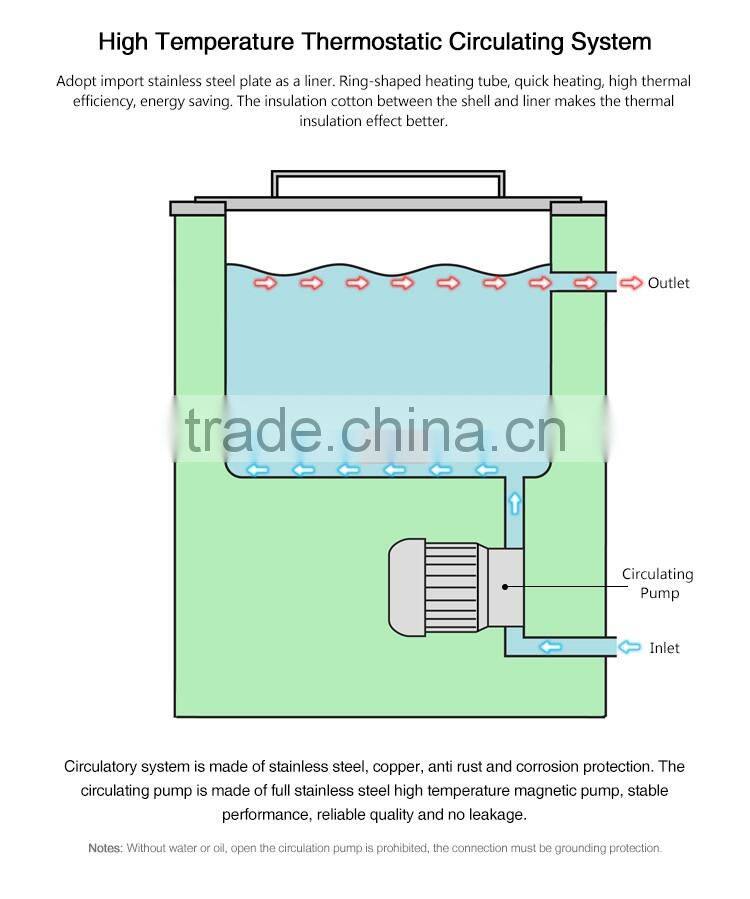

2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.

3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.

4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.

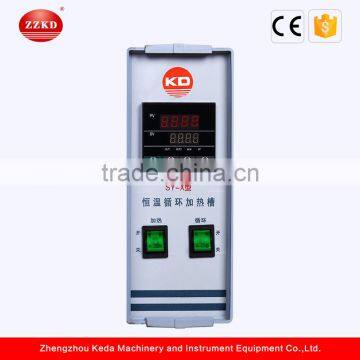

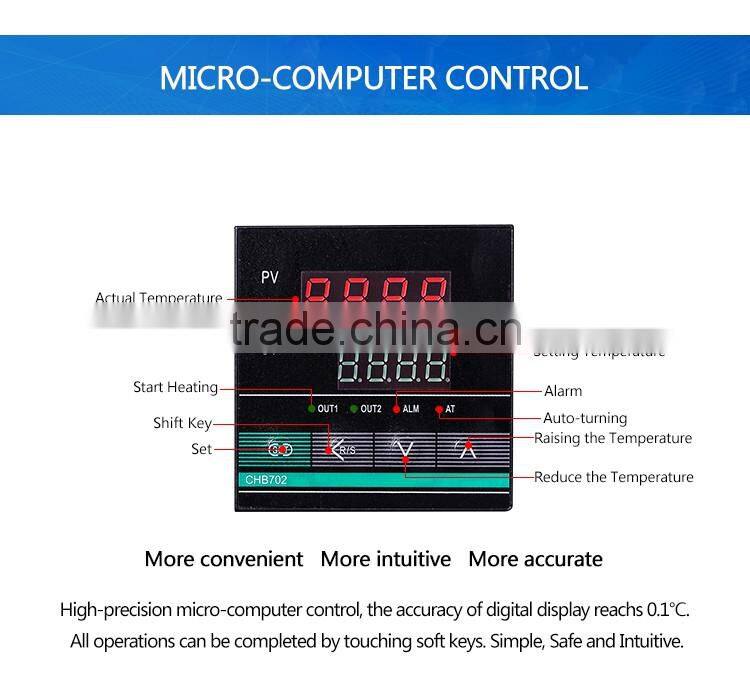

5. Digital display temperature control, simple operation, eye-catching.

Technical parameters

Model

GYY-5L

GYY-10L

GYY-20L

GYY-30L

GYY-50L

GYY-80L

GYY-100L

Function

Liquid storage volume (L)

5

10

20

30

50

80

100

No-load maximum temperature()

200

200

200

200

200

200

200

Heating power (kW)

        2.8

1.5

2

2.8

2.8

3

Cycling performance

Power

220V/50HZ     380V/50HZ(50L/80L)

Pressure

1.45Mpa

Cycle way

Sealed magnetic pump cycles

Flow rate

(L/min)

15-20

20-25

Tempe control performance

Temp control range ()

Water bathRT~99;  Oil bathRT~250

Temperature error

≤2.50%

Working condition

Power

380/220V  50Hz

Humidity

60%

HTF viscosity

Below 500C·S·t

Currents(A)

10

Optional Configuration

Explosion-proof motors and electrical

The number of heating tube

1

2

3

Liner Size (cm)

25*22

25*25

30*30

35*30

45*35

50*45

55*50

Overall dimensions (cm)

60*40*68

60*45*70

63*48*70

70*54*85

75*58*85

86*68*90

90*70*95

Weight (kg)

35

45

60

60

75

90

105

Please take note

In order to improve the quality of your use, please use 320 high temperature heat transfer oil.
Use regulations to keep the oil level, regular change the oil. When you want to change it , you need put all the old oil out and wash the interior with new oil, then add the new oil, but also to prevent debris from entering use, so as not to affect the quality of the oil.

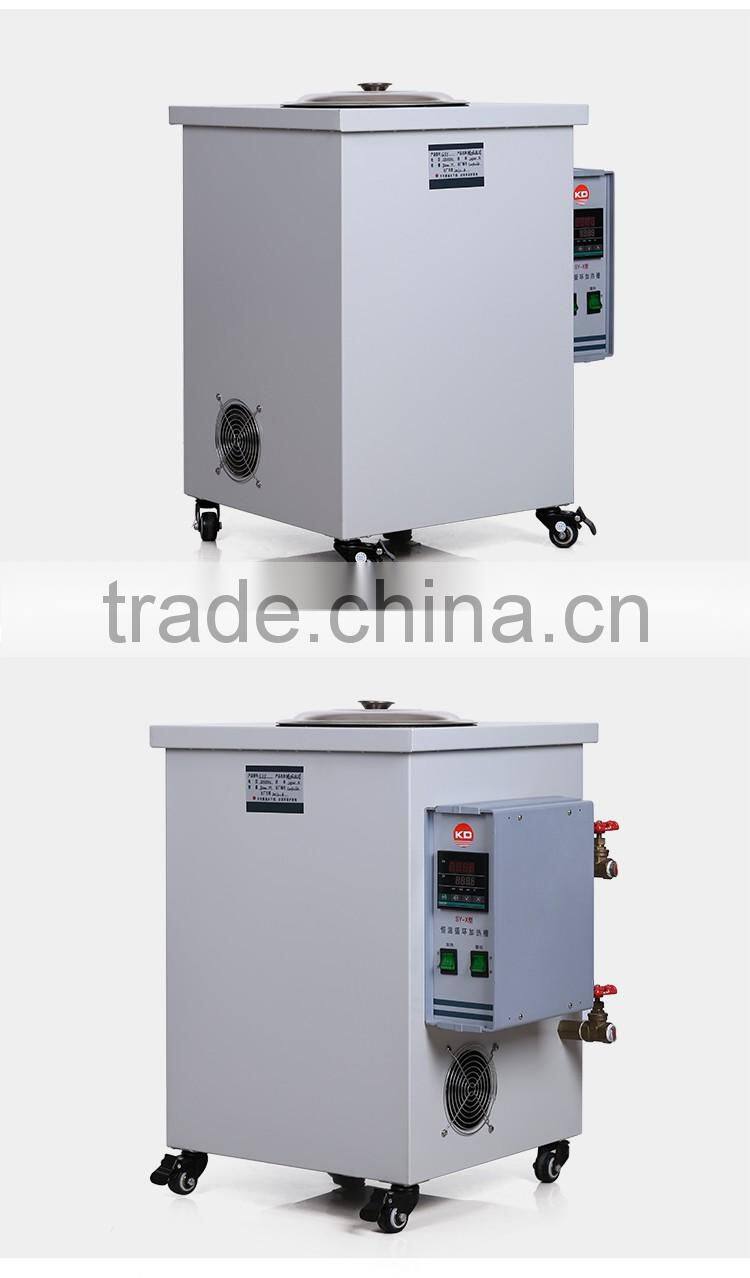

Product Details

Calibration Bath Supplier

Calibration Bath SupplierCalibration Bath SupplierCalibration Bath SupplierCalibration Bath SupplierCalibration Bath SupplierCalibration Bath Supplier

Packaging & Shipping

Calibration Bath Supplier

Company Information

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettlefreeze dryer(lyophilizer), water/oil bathmagnetic heating stirrerhydrothermal synthesis reactorheating mantlelift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.





Business Type: Manufacturer, Trading Company;

Location: Henan, China (Mainland);

Year Established: 2009;

Total Revenue : US$1 Million - US$2.5 Million;

Registration No: 410105000067362;

Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.

Calibration Bath Supplier

Calibration Bath Supplier

Calibration Bath Supplier

FAQ

1. Can I use oil bath instead of water bath ?

Yes.



2. Which heat transfer oil you recommend ?
320 high temperature heat transfer oil, or according your requirement .



3. Are you equipped with heat transfer oil free ?
Sorry, we can not provide heat transfer oil, because oil is prohibited to delivery.
