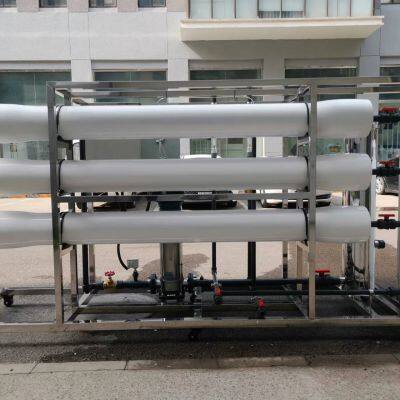

Help Center6T 8040 6PCS RO Membrane Cleaning Machine for Extending Membrane's Life
Related Products
-
Stainless Steel PVDF Material UF Water Filter SystemUS$ 70 - 80MOQ: 4 Sets -
RONSENTEC Durable 4040 8040 1element to 6 Elements FRP Pressure VesselUS$ 36MOQ: 10 Sets
-
Brine Water Seal for 8040 4040 RO Membrane Sea Water MembraneUS$ 3.6MOQ: 100 Pieces
-
2t/h 10t/h Iron Manganese Removal Device for Water TreatmentUS$ 105 - 200MOQ: 1 Set
-
3000-LPH Reverse Osmosis Water Purification System for Pure Drinking WaterUS$ 7500MOQ: 1 Set
1.Cleaning Capacity:
Cleans up to 6 pieces of standard 8040-sized RO membranes at once
Modular design allows customization for 4, 6, 8, or more membranes per batch
2 Power Supply (Customizable):
Standard: 380V, 3-phase, 50Hz
Optional: 220V, 440V, 60Hz (available upon request for international utilization)
- 3. Pump System:
High-Pressure Cleaning Pump
Flow Rate: 15–25 L/min (adjustable)
Max Pressure: 8–10 bar (suitable for thorough membrane flushing)
Material: Stainless Steel 304 (corrosion-resistant for chemical cleaning agents)
4. Pressure Vessels:
Quantity: 2 units (one with 2 membranes)
Material: FRP (Fiberglass Reinforced Plastic)
Design: Resistant to high pressure, acidic/alkaline cleaning solutions, and long-term wear
5. Cleaning Process:
Forward Flush + Backward Flush (optional) for deep cleaning
Supports acid wash (e.g., citric or hydrochloric acid for scale removal)
Supports alkaline wash (e.g., NaOH + SDS for organic/biofouling removal)
-
Integrated circulation PE tank with 1000L capacity

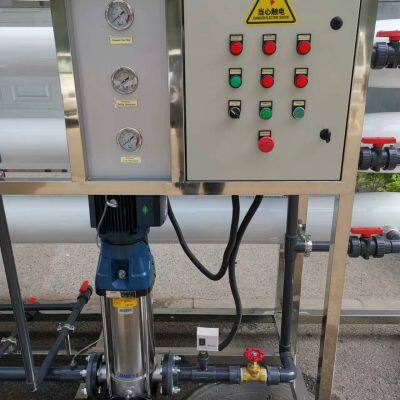

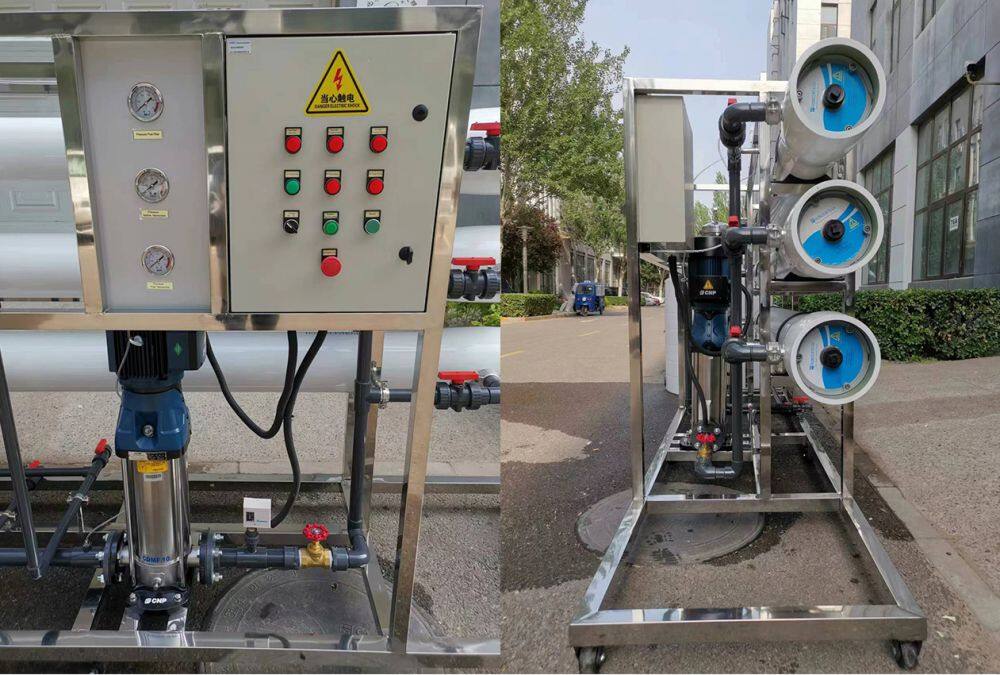

6. Control System:
Manual or Semi-Automatic Control Panel
Digital timer for setting cleaning duration (0–60 mins)
Pressure gauge for real-time monitoring
-
Optional PLC + touch screen for full automation (upgrade option)
7. Frame & Mobility:
Heavy-duty carbon steel frame with anti-rust coating
Equipped with 4 universal wheels (2 with brakes) for easy movement and positioning
Compact footprint: Approx. 3000mm (L) × 700mm (W) × 1700mm (H)
8. Fluid Compatibility:
Compatible with water, citric acid, sodium hydroxide, sodium hypochlorite, and other common RO cleaning chemicals
9. Applications:
Industrial RO systems
Desalination plants
Food & beverage processing
Pharmaceutical water systems
Wastewater reclamation facilities
10. Benefits:

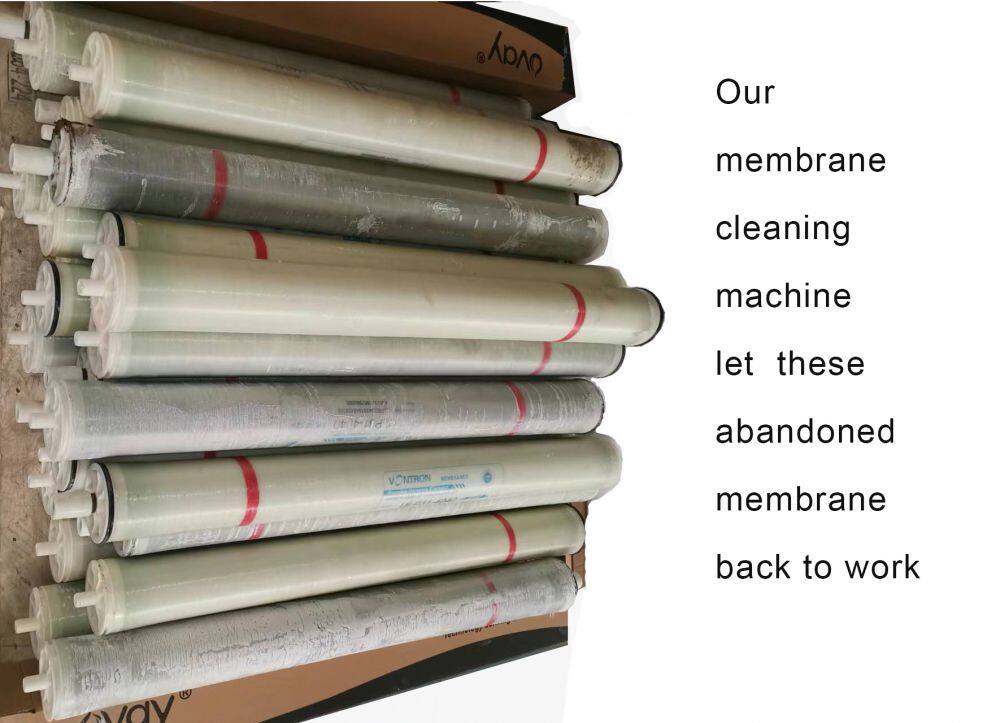

Extends RO membrane life by 30–50%
Reduces operating costs and downtime
Eco-friendly: Minimizes membrane waste and chemical consumption
Easy to operate and maintain
This machine is ideal for maintenance teams looking to optimize RO system performance and reduce long-term costs through regular, professional-grade membrane cleaning. Custom configurations (voltage, capacity, automation level) are available to meet specific site requirements.
