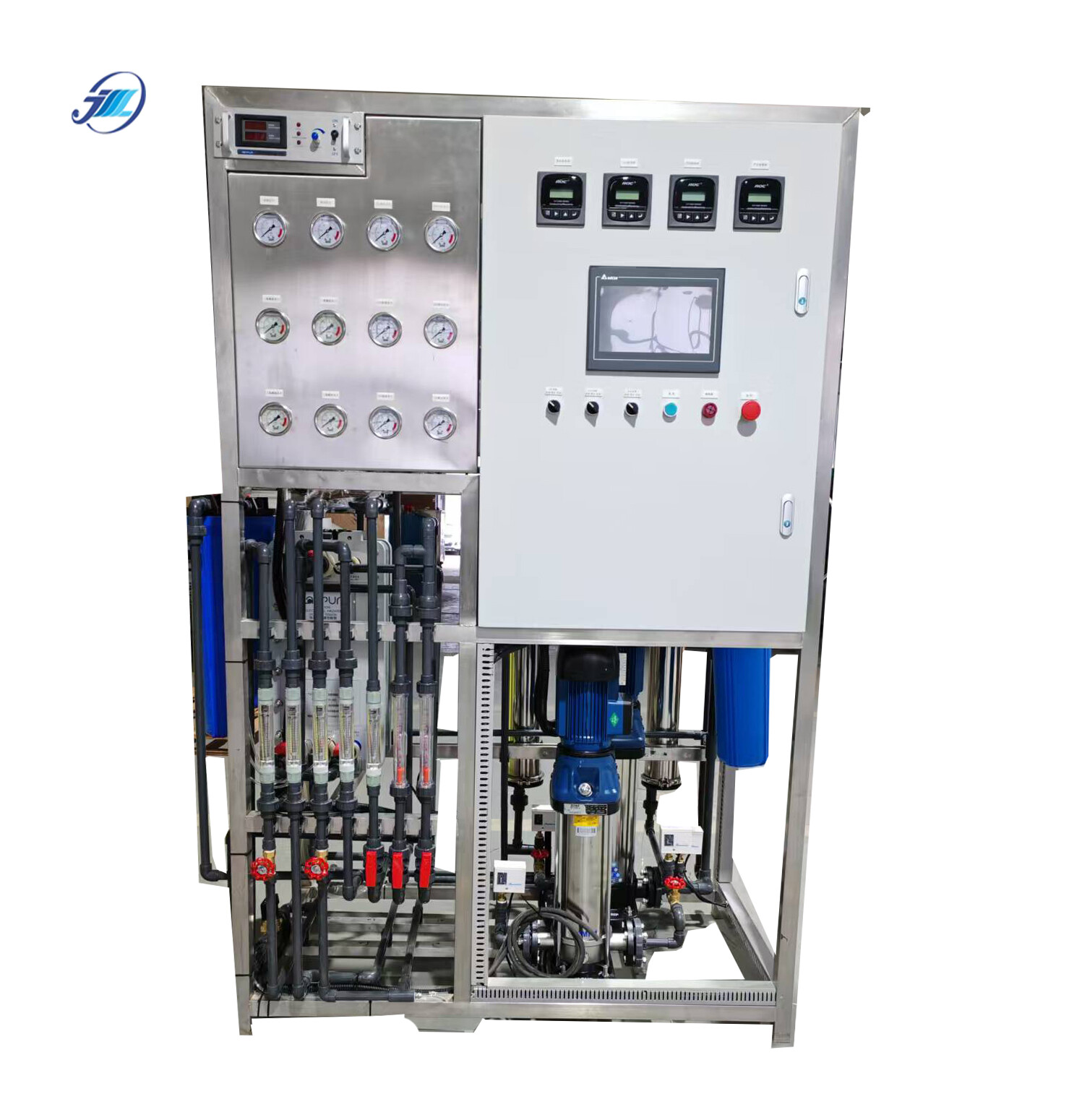

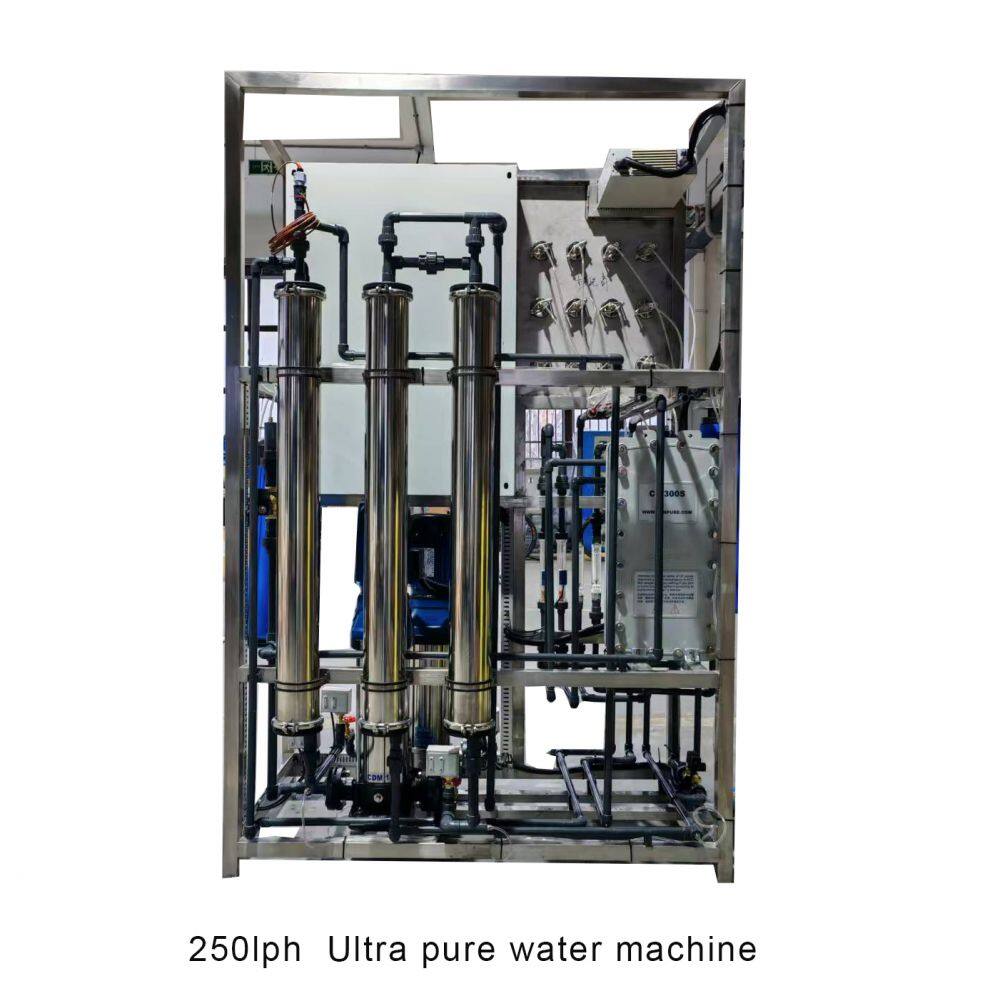

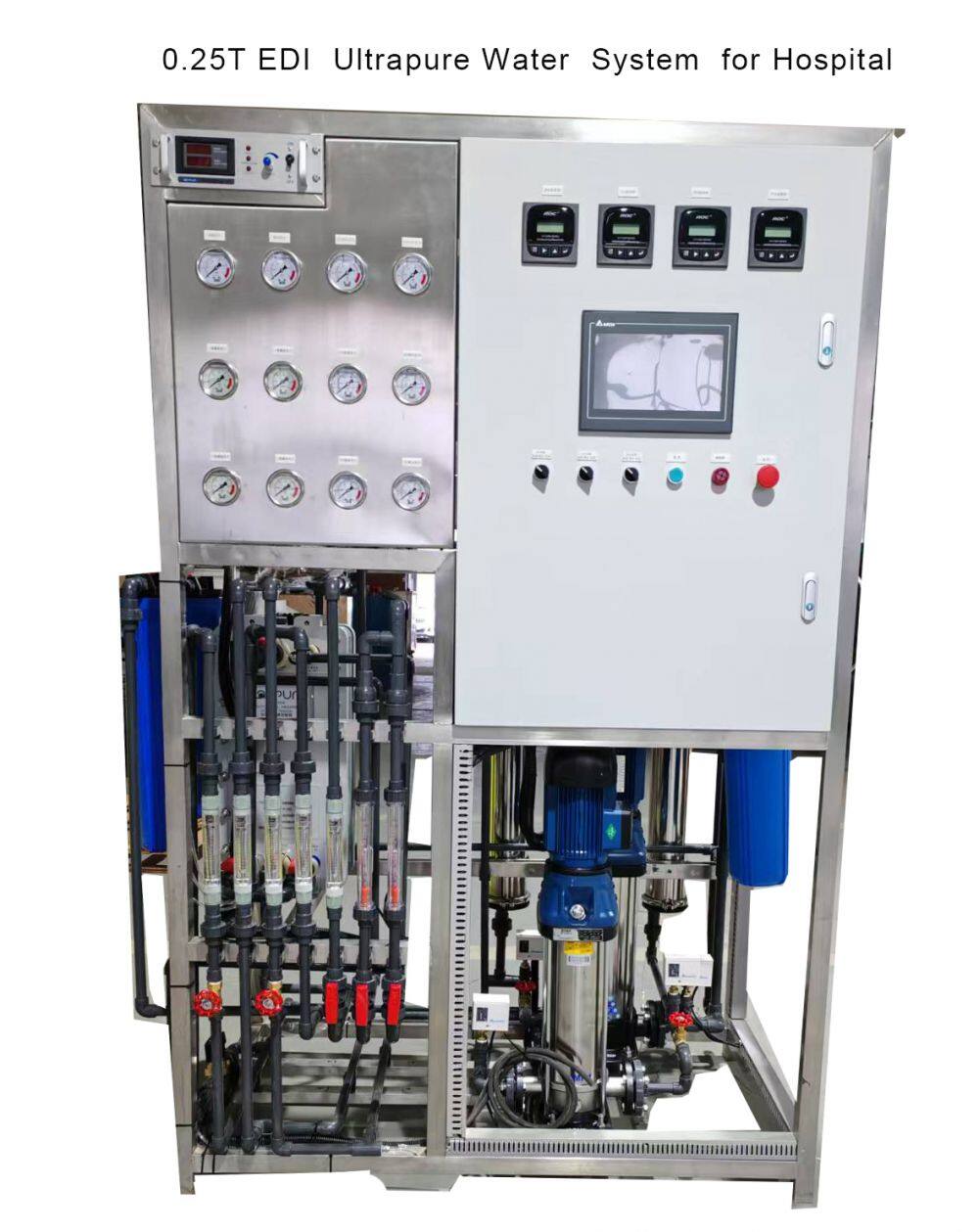

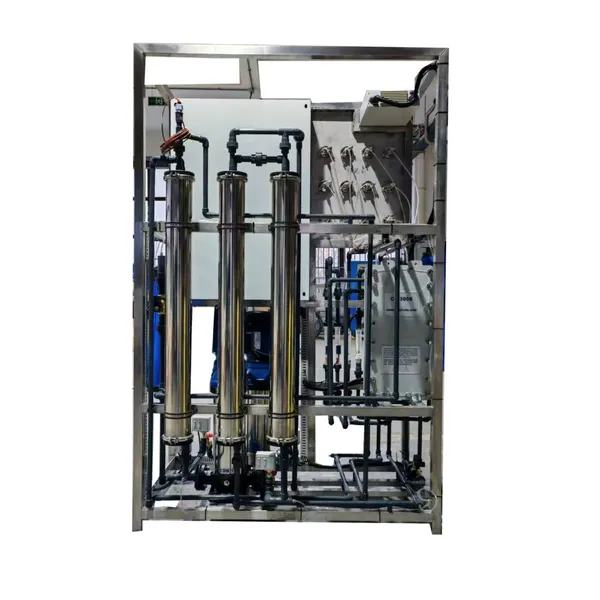

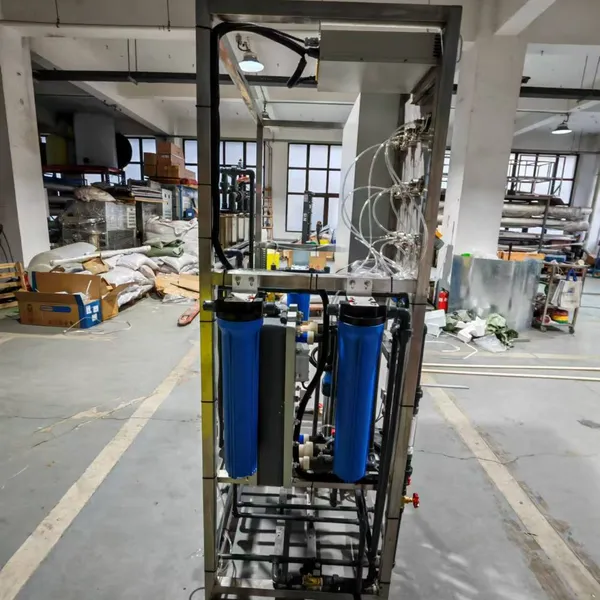

Ultrapure Water EDI System – 0.25 T/H (250 L/H)
System Overview
This 0.25 ton per hour (250 liters per hour) Ultrapure Water EDI (Electrodeionization) System is designed to produce high-purity water from reverse osmosis (RO) permeate. It integrates advanced EDI technology with precision pre-treatment to deliver consistent, continuous, and chemical-free ultrapure water (up to 18.2 MΩ·cm resistivity), meeting stringent standards for Injection (WFI) or Purified Water.
Key Specifications
Parameter | Specification |
Production Capacity | 250 L/H (0.25 m³/H) |
Feed Water Requirement | RO Permeate (CONT<1–2 ppm) |
Product Water Quality | Resistivity: ≥ 15–17MΩ·cm (at 25°C) |
Operating Pressure | 2.0 – 4.0 bar (29–58 psi) |
Operating Temperature | 5 – 35°C |
Power Supply | 220V /50 Hz, 1–2 kW (approx.) |
EDI Module brand | Canpure or equivalent |
Control System | PLC with touchscreen HMI, real-time monitoring, alarms, data logging |
Materials of Construction | UPVC, SS304 |
Footprint | Compact design (approx. 1280 x 700 x 2000 mm) |
Certifications | CE, ISO 9001 |
System Components

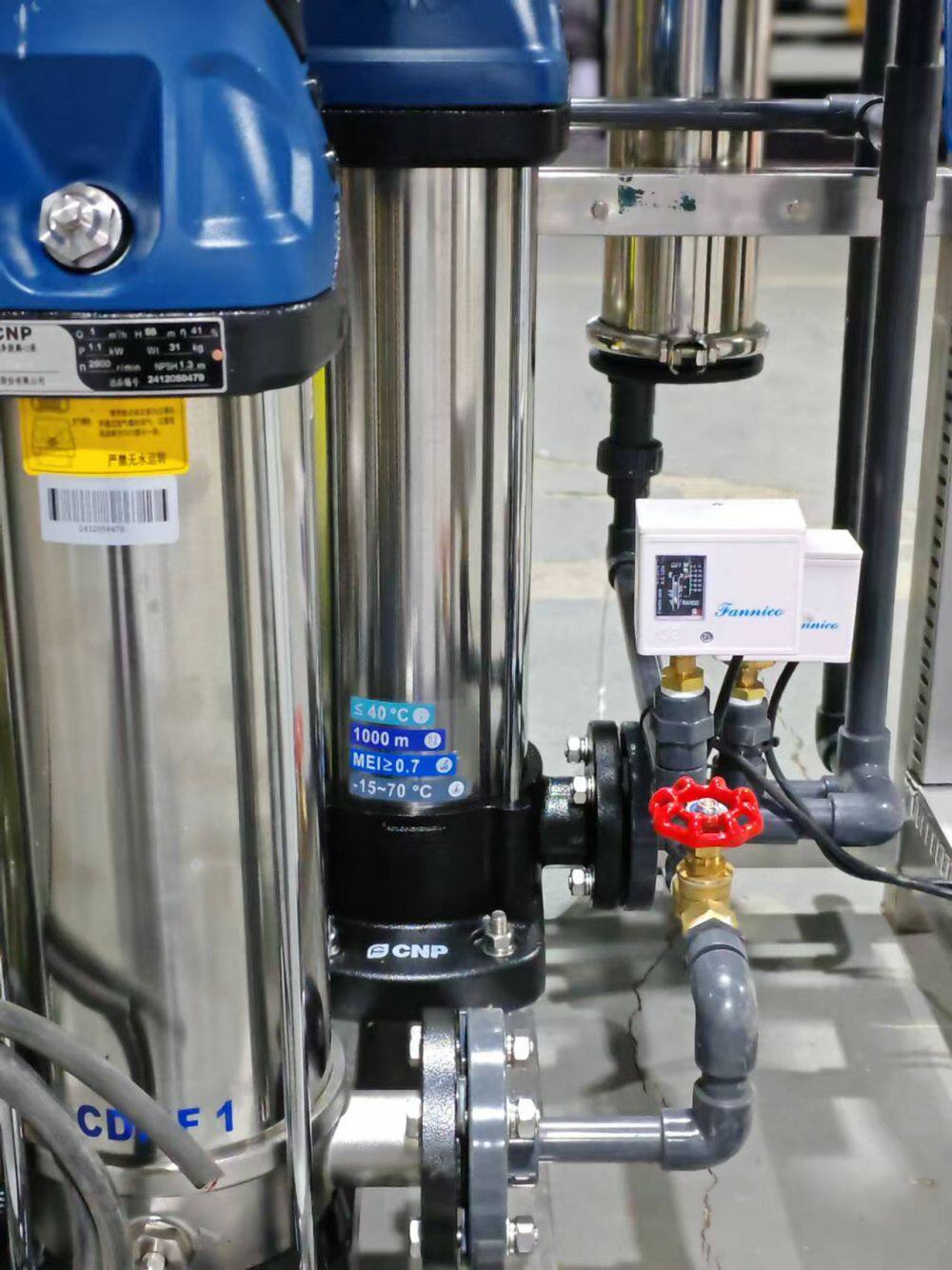

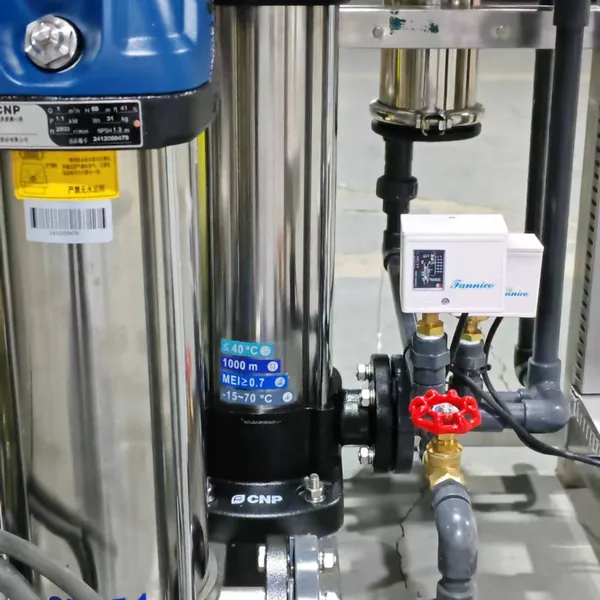

RO Permeate Feed Pump
Ensures stable pressure and flow to EDI module.
Polishing Mixed Bed Ion Exchange (Optional)
For achieving ultimate purity (e.g., 18.2 MΩ·cm).

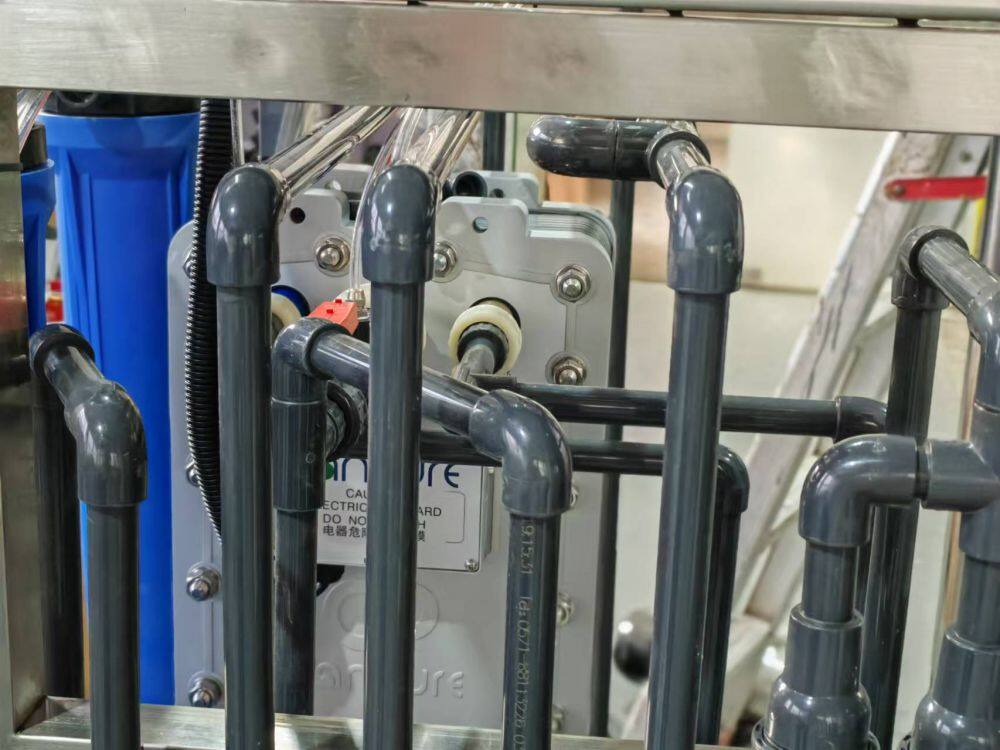

EDI Module(s)
Continuous deionization using ion exchange resins and electric field—no chemical regeneration required.
UV Sterilizer (Optional)
185/254 nm UV lamp to reduce TOC and control microbial growth.

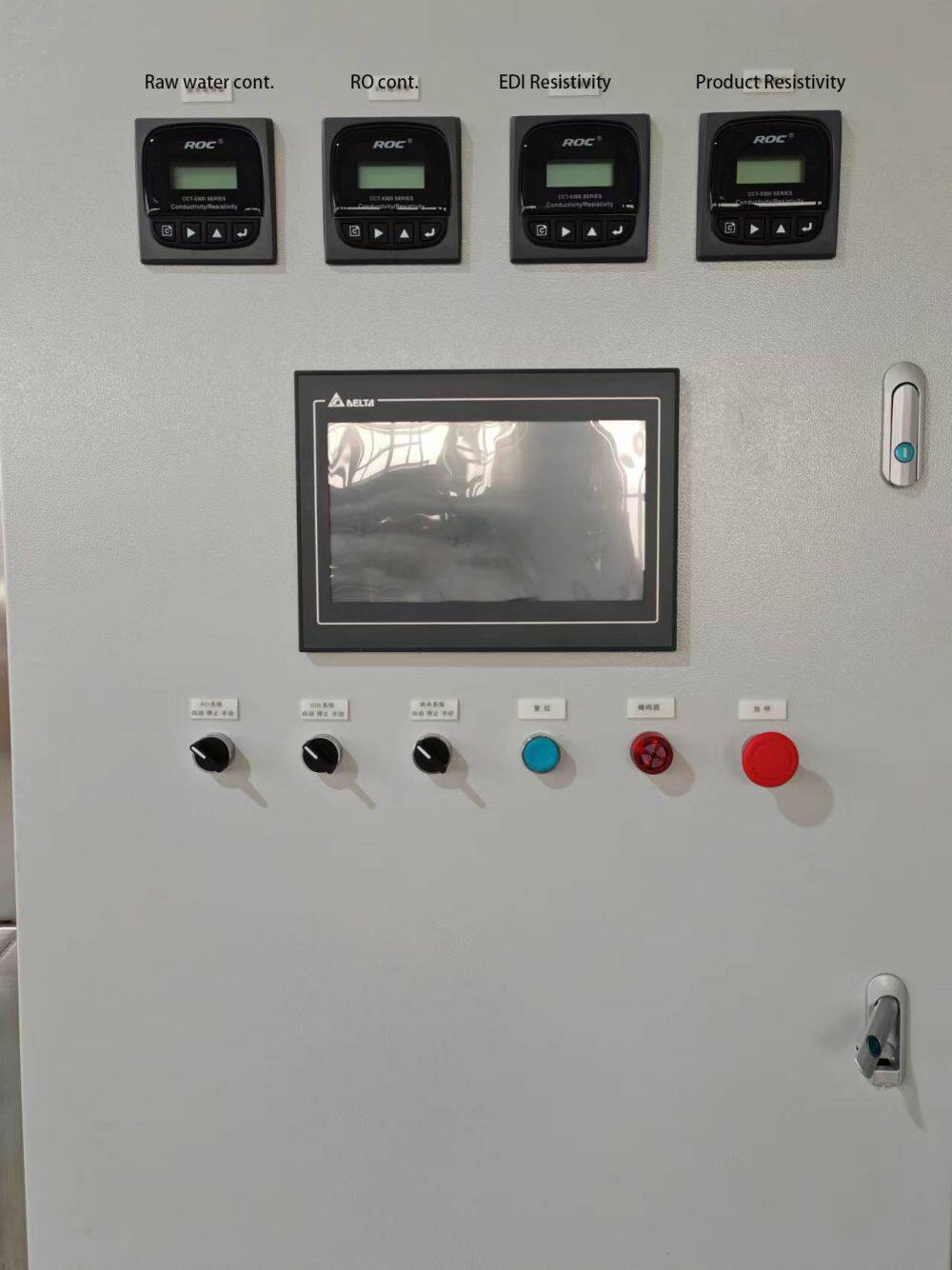

Instrumentation & Controls

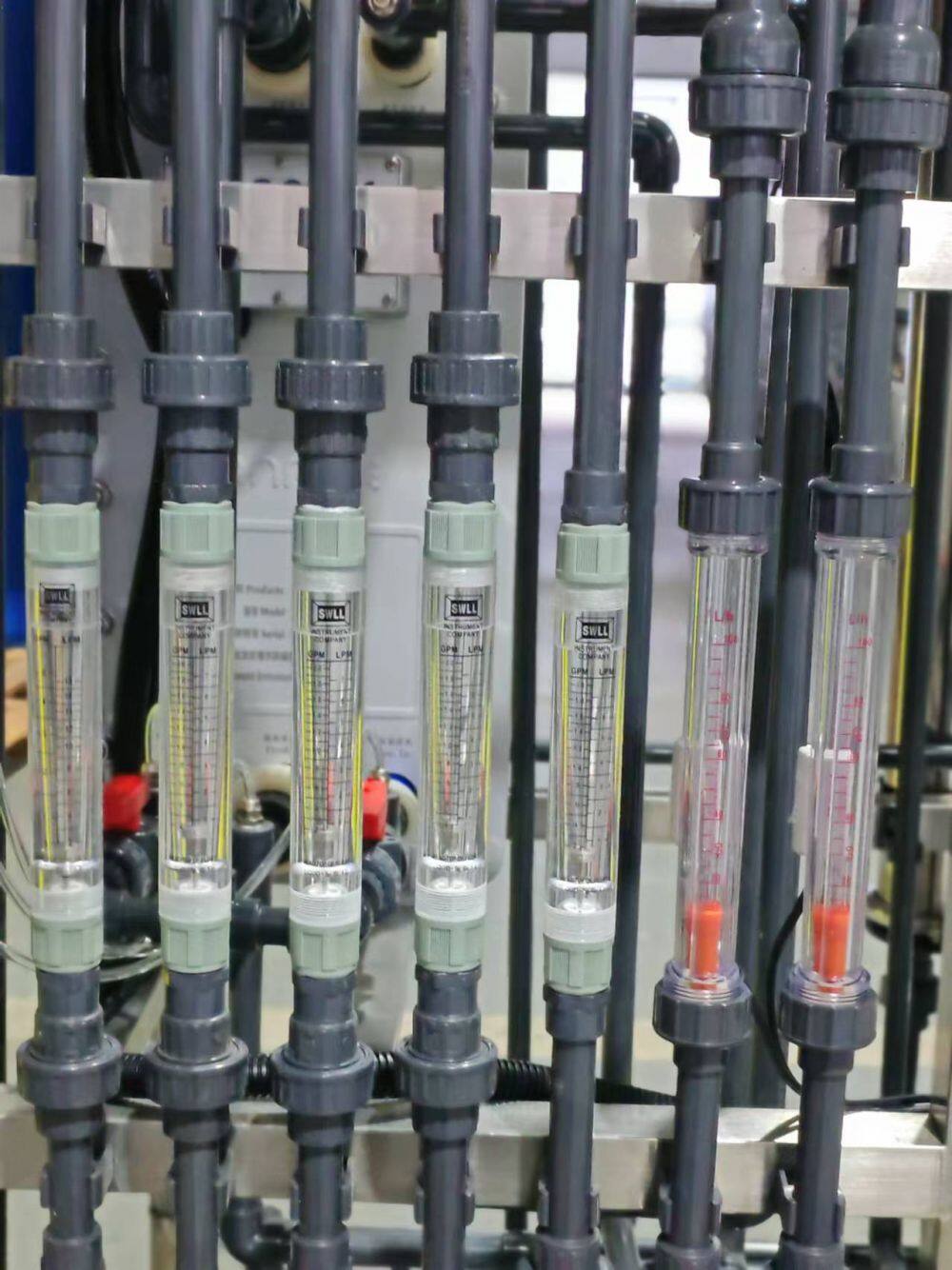

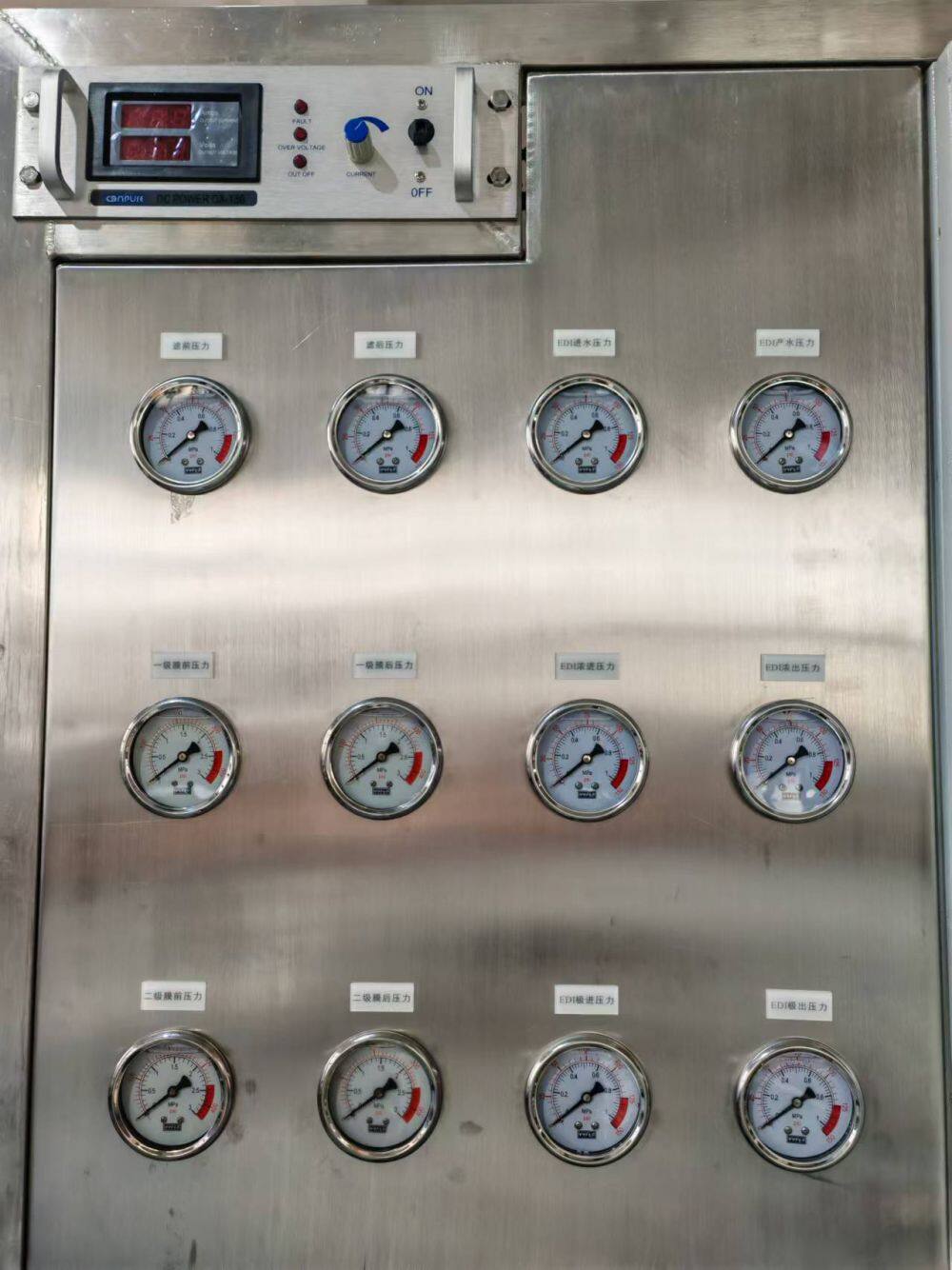

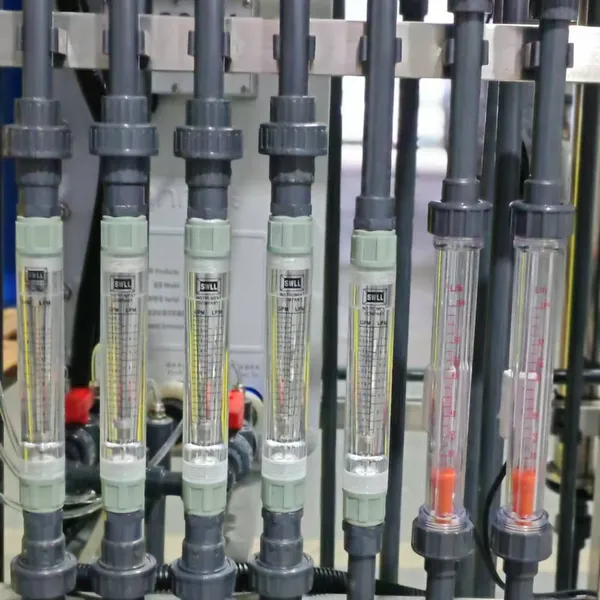

Conductivity/resistivity meters, flow meters, pressure gauges
Maintains water quality during standby with continuous circulation.
Framing material SS304
Applications
Pharmaceutical (WFI polishing, lab water)
Semiconductor & electronics manufacturing
Power plant boiler feed water
Laboratory analytical instruments (HPLC, IC, etc.)
Cosmetics and biotechnology
Advantages
Chemical-Free Operation: No acid/caustic regeneration.
Continuous Operation: No downtime for regeneration.
Low Operation Cost: Minimal maintenance and energy use.
Environmentally Friendly: No chemical waste or brine discharge.
High Reliability: Automated controls with fault diagnostics.
