Iron & Manganese Removal Systems
Product Overview

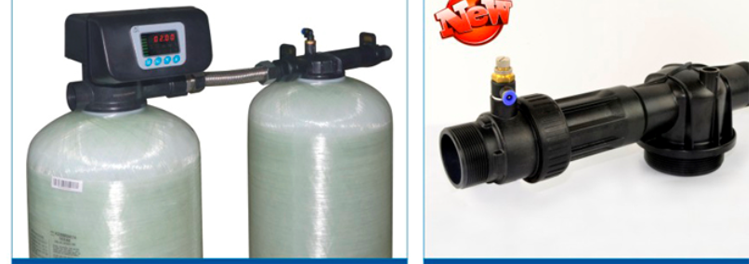

The JZ107A and JZ107C are high-efficiency, pressure-type water treatment systems engineered for the reliable removal of dissolved iron (Fe²⁺), manganese (Mn²⁺) from groundwater and well water sources. Designed for residential, commercial, and industrial applications, these systems deliver consistently clean, odor-free, and safe water that meets international drinking water standards.
Built with durability, performance, and ease of maintenance in mind, the JZ107A and JZ107C models utilize catalytic oxidation and filtration technology, making them ideal for areas with high iron and manganese content in raw water.
Model Specifications
Feature | JZ107A | JZ107C |
Capacity | 2 T/H (Tons per Hour) | 10 T/H (Tons per Hour) |
Inlet/Outlet Connection | DN25 (1") | DN50 (2") |
Backwash Control | Automatic Control | |
Filter Media | Manganese sand | Manganese sand |
Effluent Quality | Iron content≤ 0.3 mg/L | |
Manganese ≤ 0.1 mg/L | ||
NTU ≤ 5 mg/L | ||
Inlet water quality | Iron content≤ 20 mg/L | |
Manganese ≤ 3 mg/L | ||
NTU ≤ 15 mg/L | ||
Alkalinity 2mg/L PH 6.8-9 Water Temp. 6-10 ℃ | ||
Power Supply | 220V / 50Hz or 110V / 60Hz | |
Applications | Household, Small Community, Farm | Community Water Supply, Resorts, Industry |
Key Features
✅ High-Efficiency Catalytic Media
Both models use advanced filtration media that catalyzes the oxidation of iron and manganese without requiring continuous chemical addition (in favorable conditions).
✅ Automatic Backwash (JZ107C)

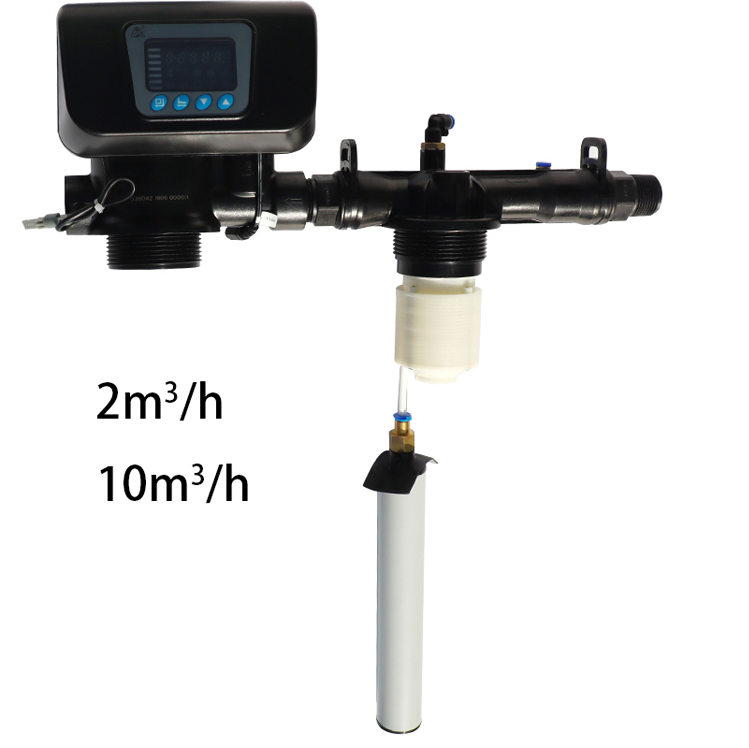

The JZ107C features a programmable control valve that initiates backwash cycles based on time or water volume, ensuring consistent performance and extended media life.
✅ Corrosion-Resistant Construction
FRP tanks resist rust and chemical degradation, ensuring long service life even in harsh environments.
✅ Low Maintenance Design
Simple operation with easy access for inspection and servicing. Media replacement interval: 3–5 years depending on water quality.
✅ Eco-Friendly Operation
Minimizes chemical usage through natural aeration and catalytic processes.
✅ Scalable Solutions
Multiple JZ107C units can be operated in parallel for larger municipal or industrial demands.
Working Principle
Oxidation: Dissolved Fe²⁺ and Mn²⁺ are oxidized to insoluble forms using air, chlorine, or potassium permanganate.
Backwash: Periodically reverses flow to flush out accumulated solids and regenerate media activity.
