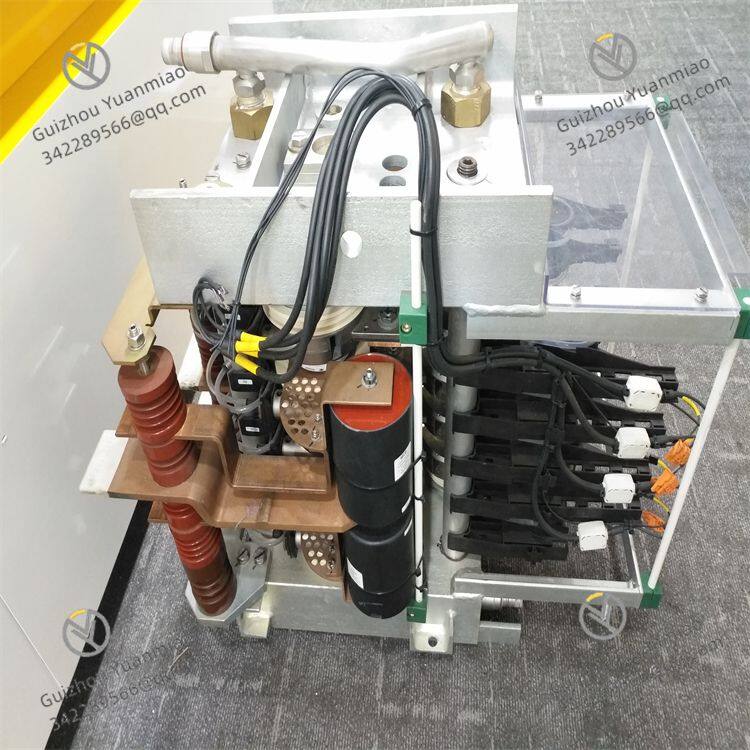

ABB 3BHL000986P0006 IGBT Module

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

Other, Global universal model

Brand:

Other, ABB

Number of Stator:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, Global universal model

Brand Other, ABB

Number of Stator Other, Global universal model

Number of Poles Other, Global universal model

Casing Protection Other, Global universal model

Starting Mode Other, Global universal model

Speed Other, Global universal model

Voltage Rating 2800 VDC (4500V max)

Power Supply 24V DC

Dimensions 150 mm x 100 mm x 50 mm

I. Product Overview

ABB 3BHL000986P0006 is a high-voltage diode that occupies an important position in the IGBT/IGCT freewheeling diode series. It plays an indispensable key role in the operation of power electronic equipment. This diode is specially designed to cope with complex and harsh power control scenarios, aiming to provide reliable protection for various power switching components, ensure efficient and stable operation of equipment, and is widely used in multiple industrial fields with extremely high requirements for electrical performance. It is one of the core components promoting modern industrial automation and efficient energy conversion.

II. Technical Parameters

Electrical Parameters: Its rated reverse voltage (VRRM) is as high as 4500V, which enables 3BHL000986P0006 to work stably in high-voltage environments, effectively resist reverse voltage shocks, and ensure the safety and stability of the equipment circuit. The maximum repetitive peak reverse current (IFSM) can reach 23000A, with strong current-carrying capacity, which can meet the working conditions of instantaneous large current shocks and ensure that the equipment can still operate normally under complex power fluctuations. In terms of forward voltage drop (VF), it shows the characteristic of 4.2V/2.5kA at the maximum junction temperature. The precise control of voltage drop helps to improve power conversion efficiency and reduce energy loss.
Physical Parameters: It adopts a Disc packaging form, which has good electrical insulation performance and mechanical stability. The product has a diameter of 100mm and a height of 26mm. While ensuring performance, the compact size design is conducive to efficient layout in limited equipment space, improves space utilization, and meets the diverse needs of different equipment for component sizes.
Other Key Parameters: In terms of clamping force, the optimized design can effectively fix the position of the diode, ensuring that even in the face of mechanical vibration or impact during equipment operation, stable electrical connection can be maintained. Its junction temperature parameters are excellent, and it can adapt to a wide temperature range, ensuring that the performance of the diode is not significantly affected in high or low temperature environments. The thermal resistance parameter is also carefully considered. The good thermal resistance characteristic enables the heat generated by the diode during operation to be dissipated quickly, avoiding performance degradation or component damage caused by overheating, and further improving the reliability and service life of the product.

III. Functional Characteristics

Excellent Protection Function: As a freewheeling diode, 3BHL000986P0006 can provide all-round protection for power switching components in power electronic equipment. When the power switching component is turned off, a reverse electromotive force will be generated in the circuit. The diode can be turned on quickly to provide a path for the reverse current, effectively suppressing voltage spikes, preventing damage to the power switching component, greatly prolonging the service life of the power switching component, improving the reliability of the entire equipment, and reducing the risk of equipment failure and maintenance costs.
Efficient Power Conversion Support: With precise forward voltage drop control and strong current-carrying capacity, 3BHL000986P0006 can ensure stable current transmission and efficient conversion during power conversion. In various inverters, frequency converters and other equipment, it helps to improve power quality, reduce harmonic interference, optimize power factor, make equipment run more smoothly and efficiently, provide stable and reliable power support for industrial production, and promote the efficient use of energy.
High Stability and Reliability: Thanks to the carefully designed electrical and physical parameters, as well as high-quality materials and manufacturing processes, 3BHL000986P0006 shows extremely high stability and reliability in complex industrial environments. Whether facing electrical stress such as high voltage and large current, or harsh working conditions such as mechanical vibration and temperature fluctuation, it can work continuously and stably, ensure the continuity of equipment operation, and provide a solid guarantee for the stable operation of industrial production.

Product Tags: 3BHL000986P0006
