Home > Electrical & Electronics > Electric Motor > AC Motor > ABB SYNCHROTACT 5 SYN5202A Control System Module

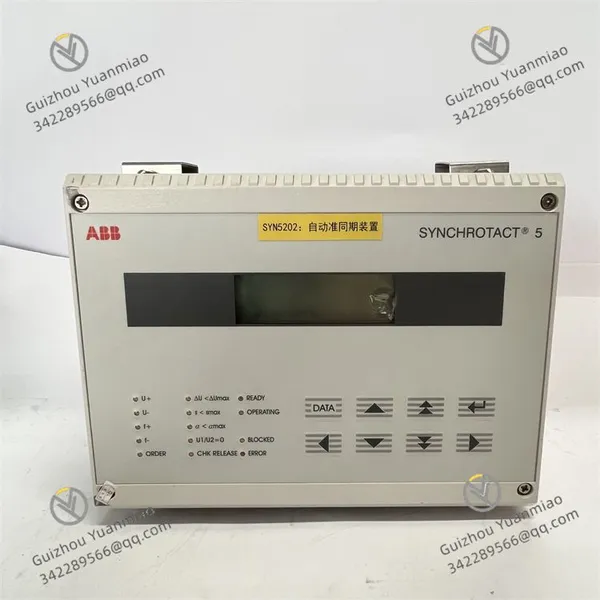

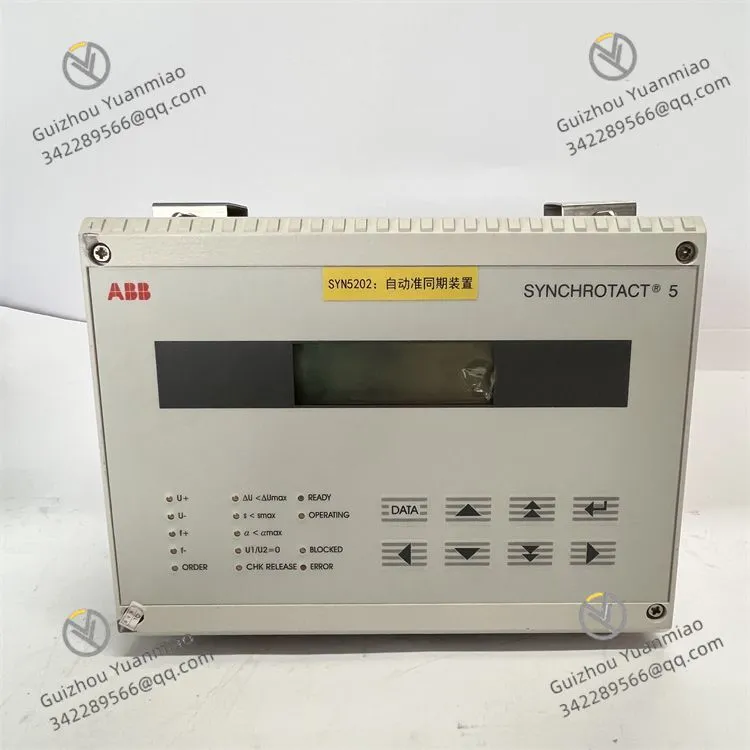

ABB SYNCHROTACT 5 SYN5202A Control System Module

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

Other, Global universal model

Brand:

Other, ABB

Number of Stator:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, Global universal model

Brand Other, ABB

Number of Stator Other, Global universal model

Number of Poles Other, Global universal model

Casing Protection Other, Global universal model

Starting Mode Other, Global universal model

Speed Other, Global universal model

Operating temperature -40℃ to +70℃

Power Supply 220VAC

Dimensions 400mm x 300mm x 150mm

I. Product Overview

ABB SYN5202A is a high-performance device specially designed for complex industrial environments. It occupies a key position in ABB's product system, especially playing an irreplaceable role in core scenarios such as industrial automation and power system synchronization. Integrating cutting-edge R&D concepts and exquisite manufacturing processes, it aims to provide precise, efficient and stable control and synchronization solutions for various industrial applications.

II. Technical Parameters

Electrical Parameters: The working voltage is usually 220VAC, but its input voltage range is very wide, which can be flexibly adapted between AC 85-264V or 115-480V to meet the power supply requirements in different application scenarios. The output voltage is DC15V, and the output current reaches 10A, which can stably supply power to the connected equipment. In terms of frequency, the applicable system frequency is 50/60Hz or 16.7Hz, which can accurately match the operating frequency of various power systems.
Physical Parameters: The product size is 400mm x 300mm x 150mm. While ensuring strong performance, it maintains a relatively compact design, which is convenient for installation and layout in equipment. It weighs about 5kg, with a stable overall structure, making it easy to carry and install. The protection level reaches IP20, which can effectively prevent dust from entering, provide basic protection for internal precision circuits, and adapt to common industrial environments.
Other Key Parameters: It has an excellent operating temperature range, and can run stably in the extreme temperature range of -40℃ to +70℃. Whether in cold outdoor industrial facilities or hot production workshop environments, it can ensure the normal operation of the equipment. The thermal resistance parameter has been carefully optimized to ensure that the heat generated by the equipment can be dissipated quickly during long-term operation, avoiding performance degradation or failures caused by overheating.

III. Functional Characteristics

Precise Synchronization Function: As a digital synchronization device, SYN5202A can realize automatic synchronization and parallel operation between the generator and the power grid, ensuring the stability and safety of the power system during grid connection. It adopts advanced algorithms and high-precision measurement technology to conduct real-time monitoring and precise matching of parameters such as voltage, frequency and phase, effectively reducing the inrush current during grid connection and ensuring the service life of power equipment.
Strong Control Capability: It has rich input and output channels, for example, 8 digital input channels and 4 relay output channels, which can flexibly connect various sensors and actuators to realize comprehensive control of industrial production processes. It supports multiple communication protocols, including Ethernet, RS485, Modbus TCP/IP, etc., facilitating data interaction and collaborative work with other equipment and systems, and greatly improving the integration and automation level of the system.
High Reliability Design: It adopts a dual-channel redundant design, consisting of two independent channels with different hardware and software. This unique design greatly improves the safety and reliability of the equipment. Even if one channel fails, the other channel can still ensure the normal operation of the equipment, effectively preventing serious faults such as asynchronous closing, and providing a solid guarantee for the continuity of industrial production.
Convenient Debugging and Maintenance: Equipped with user-friendly "SynView" software, it can realize online display and modification of parameters, as well as intuitive display of actual values such as voltage, frequency and phase. The software also has a dynamic process recorder and event and fault recording functions, which can record 256 events, faults and their time labels in plain text format, facilitating engineers to debug and troubleshoot the equipment. In addition, the front panel of the device is equipped with a liquid crystal display, buttons and LED indicators, so that debugging can be easily completed even without a PC.

IV. Application Scenarios

Power System: In power plants, it is used for automatic synchronization and parallel operation between generators and the power grid, ensuring stable and efficient power generation process and guaranteeing power quality. At the same time, it is also applicable to parallel operation between already synchronized power grids, optimizing the operation structure of the power system and improving the reliability and stability of power supply.
Industrial Automation Field: In production line control, it can accurately control the operation of various equipment according to production process requirements, coordinate production processes, and improve production efficiency and product quality. In energy management systems, it can monitor and regulate energy consumption in real time, realizing rational allocation and efficient utilization of energy. In addition, in building automation, it can intelligently control equipment such as lighting, air conditioning and elevators in buildings, improving the intelligent management level of buildings.
New Energy Field: For wind power grid connection and photovoltaic grid connection projects, SYN5202A can accurately control the synchronous access of new energy power generation equipment to the power grid, ensuring that renewable energy is connected to the power grid stably and efficiently, reducing the impact on the power grid, and promoting the healthy development of the new energy industry.
