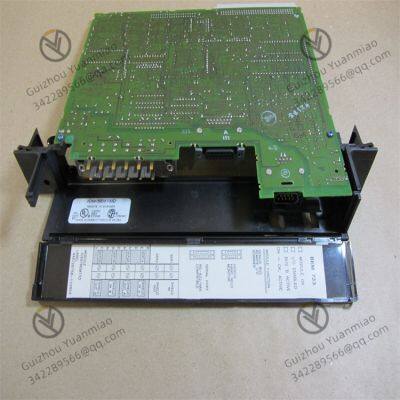

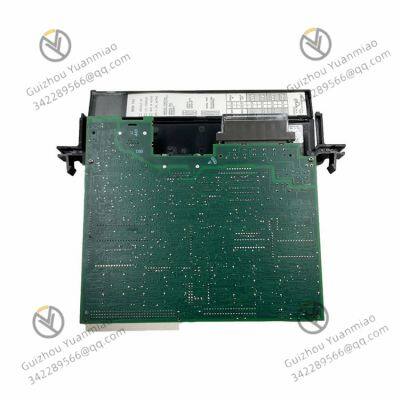

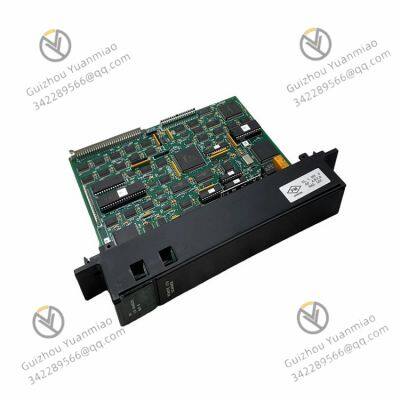

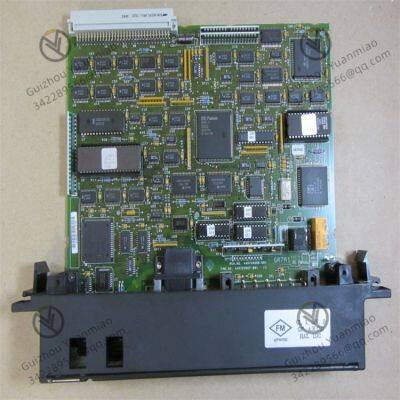

GE IC697BEM733 Bus Expansion Module

• Based on the VME bus standard, supporting high-speed parallel data transmission at rates consistent with the main rack (up to ~40MB/s), meeting low-latency requirements for real-time control scenarios.

• Dual redundant bus configuration (requires paired modules) enhances system reliability, ideal for critical control applications (e.g., power, chemical industries).

• Connects multiple expansion racks (typically supports 4–8 racks, depending on system configuration).

• Maximum inter-rack distances:

• Copper cable: ~3 meters (for short-range expansions).

• Fiber optic: Up to 2 kilometers (for long-range expansions across workshops or campuses).

• Bidirectional data transfer: Enables real-time exchange of control commands, configuration parameters (main CPU → expansion modules), and sensor data/status feedback (expansion modules → main CPU).

• Multi-rack synchronization: Calibrates the operation timing of all expansion racks via bus clock signals, ensuring consistent actions across modules (e.g., synchronized analog data acquisition, timed digital outputs).

• Built-in self-diagnostic circuits monitor bus communication status (e.g., signal loss, transmission errors, rack disconnection).

• Alerts the main CPU via indicator lights (e.g., COM, FAULT) or bus messages during faults, supporting fault code storage for rapid troubleshooting.

• Redundant bus switching mechanism (in dual-redundancy configurations) automatically switches to backup links upon primary link failure, ensuring continuous communication.

• Mechanical keying design: Prevents incorrect module installation, avoiding communication failures caused by misalignment.

• Hot-swappable support (certain models): Allows module replacement during system operation, minimizing downtime.

• Environmental resilience: Operates from -20°C to 60°C (-4°F to 140°F), stores from -40°C to 85°C (-40°F to 185°F); withstands shocks (30g) and vibrations (5–2kHz), suitable for harsh industrial environments.

Unique Advantages of IC697BEM733:

• Long-range expansion: Fiber optic support enables 2km transmission, ideal for connecting equipment across large industrial campuses or buildings.

• Dual redundancy: Enhances reliability for critical uninterruptible processes (e.g., power generation, chemical reaction control).

1. Large-scale production lines (e.g., automotive manufacturing, steel rolling): Centralized control across geographically dispersed workshops via BEM733.

2. Redundant control systems (e.g., power plants, water treatment facilities): Dual BEM733 modules create redundant buses to prevent system failures from single-point faults.

3. Smart factory upgrades: Retrofits legacy equipment (e.g., CNC machines, robots) into existing PLC systems via expansion racks for Intelligent upgrade.
