VMIVME-4140-001 VMEbus Analog Output Board

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
VMIVME-4140-001 VMEbus Analog Output Board thumbnail-1
VMIVME-4140-001 VMEbus Analog Output Board thumbnail-2
VMIVME-4140-001 VMEbus Analog Output Board photo-1

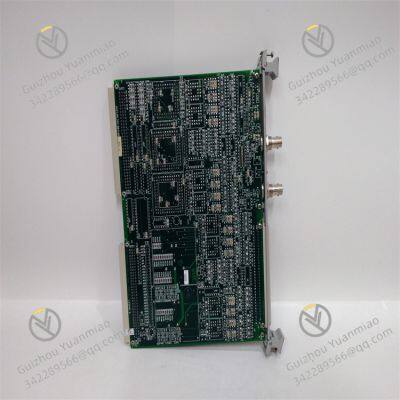

VMIVME-4140-001 VMEbus Analog Output Board photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




    VMIVME-4140-001 is an analog output board based on VMEbus, produced by the VMIC division of GE, and belongs to the VMIC Megamodule series. Here are its detailed specifications:

    • Number of Channels: 32 channels.
    • Resolution: 12 bits.
    • Output Voltage Range: Software-selectable unipolar (0 to +10V, 0 to +5V, 0 to +2.5V) or bipolar (±2.5V, ±5V, ±10V).
    • Output Current: Each channel has a maximum output current of 10mA.
    • Interface Type: VMEbus.
    • Power Supply: +5V.
    • Operating Temperature: -25°C to +85°C.





    VMIVME-4140 (1)


      • Features: It is characterized by high precision, high speed, buffered output, and programmable output range. It is equipped with dual-buffered data latches, enabling software or external synchronous updates. It has a self-test function and extensive on-board diagnostic testing capabilities; the self-test runs automatically after system reset, and the self-test register can display success or failure as well as faulty channels.
      • Other Features: The output can be disconnected from field wiring for offline testing. The VMEbus base address is set via jumpers, occupying 128 consecutive bytes of address space. Address modifier bits are selected and decoded via jumpers, supporting non-privileged, supervisory, and non-privileged or supervisory board access. Output data is stored in 32 16-bit registers, which can accept binary or offset binary data.


    GE VMIVME-4140-001-VMIVME4140 1


    •



    Related products:

    IC697CPX928

    F650BFGF1G1HIE

    IS220UCSAH1A

    IS420UCSBH4A

    IS430SNUAH1A

    SR489-P5-HI-A20

    04220GL21204A

    151X1235DB15SA01EX2100





    Product Tags: VMIVME-4140-001 , VMEbus Analog Output Board
