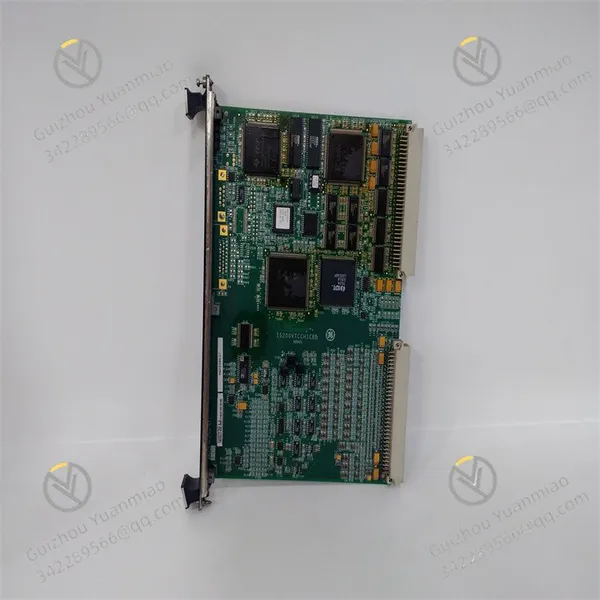

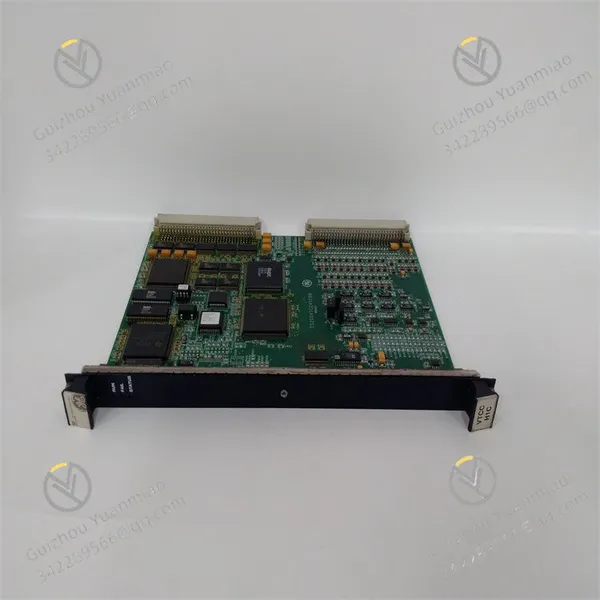

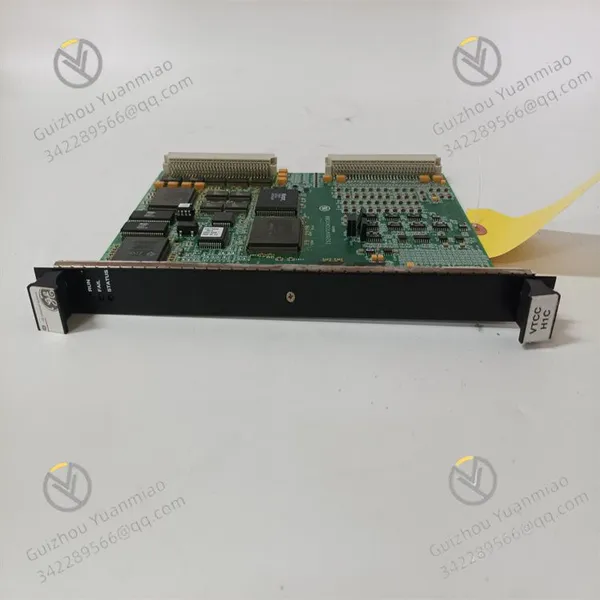

    IS200VTCCH1CBB is a thermocouple input board manufactured by General Electric (GE), belonging to the Speedtronic Mark VI series. It is mainly used for temperature signal acquisition and processing in industrial automation control systems. The specific information is as follows:

    • Functional Characteristics:

      • Signal Input: It can accept up to 24 thermocouple inputs, supporting various types of thermocouple signals such as E, J, K, S, and T, with a signal range of -8mV to +45mV. The thermocouple inputs can be grounded or ungrounded.

      • Signal Conversion: It can convert analog thermocouple signals into digital signals for further processing and analysis by the Mark VI control system.

      • Cold Junction Compensation: Equipped with an automatic cold junction compensation function to ensure measurement accuracy.

      • Fault Diagnosis: It can detect and diagnose abnormalities or faults in thermocouple signals and take measures to prevent these faults from affecting other parts of the system.

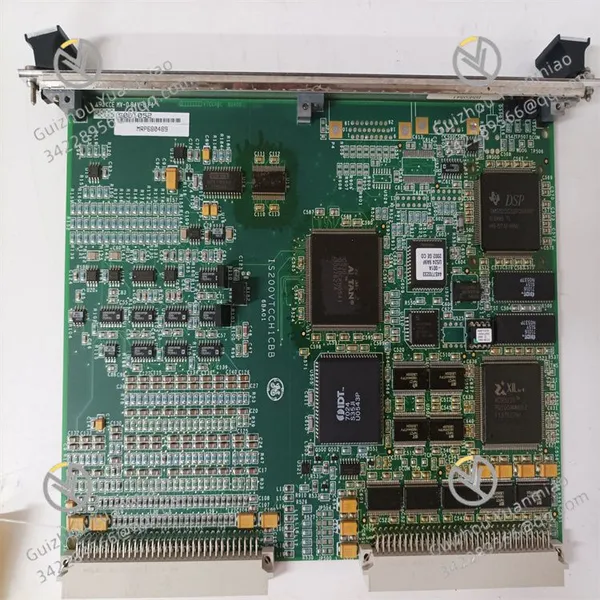

     GE MRP680489 IS200VTCCH1CBB


      •

      • Technical Parameters:

        • Input Voltage: 24VDC.

        • Accuracy: ±0.1%FS.

        • Resolution: 0.1°C.

        • Operating Temperature Range: Generally -40°C to +70°C.

        • Dimensions: Approximately 146mm × 89mm × 35mm.

        • Weight: Approximately 300g.

      • Communication Capability: It supports an Ethernet interface, complies with TCP/IP and Modbus TCP protocols, and can exchange data with other Mark VI system components or external devices through Ethernet, serial, and other communication interfaces, enabling remote monitoring and management.
      • Installation Method: Usually installed on a DIN rail, which is convenient for installation and layout in the control cabinet.
