IC695CHS012 12 Slot Universal Substrate

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

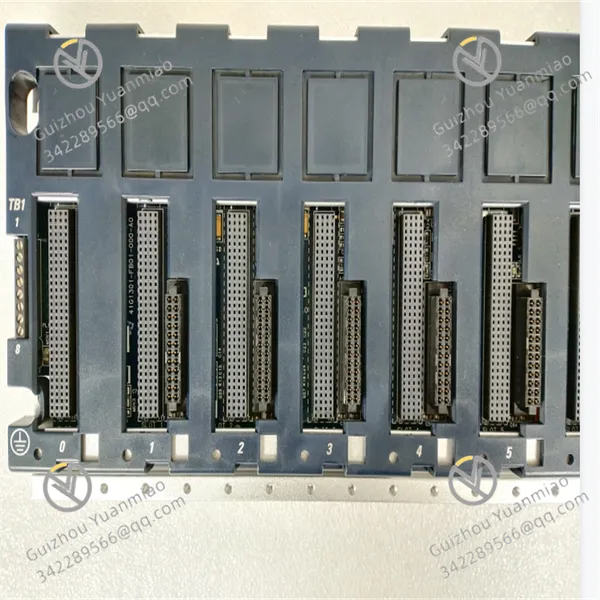

IC695CHS012 is a 12-slot universal backplane in the GE Fanuc RX3i PACSystems series. It is primarily used to provide a mounting platform and electrical connections for RX3i modules. Here are its detailed specifications:

Basic Parameters:

Number of Slots: 12 slots
Backplane Support: PCI and high-speed serial
I/O Module Compatibility: GE Series 90-30
Hot-Swap Capability: Supported
Input Voltage: +24VDC (connected via terminal board)
Power Consumption: 600mA at 3.3VDC, 240mA at 5VDC

Physical Characteristics:

Dimensions: 457.5 x 141.5 x 147.32 mm (length x width x depth)
Weight: Approximately 2.3 kg
Installation Orientation: Horizontal mounting

Functional Features:

Multi-Module Support: Compatible with PCI-based IC695 series modules, as well as serial I/O and option modules such as IC693 and IC694, offering strong compatibility to meet various industrial automation requirements.
Hot-Swap Functionality: Allows adding or removing modules while the system is running, minimizing downtime and facilitating maintenance.
Terminal Board Design: Features a terminal board for connecting isolated +24VDC input voltage to power the backplane and modules.
Grounding Design: Includes backplane grounding points and an overall grounding bar for connecting module or shield grounding, ensuring system electrical safety.
Serial Expansion: Provides a serial expansion connector for connection to serial expansion backplanes and remote backplanes, enabling convenient system expansion.

Functional Features:

Multiple Output Ports: Has three output ports, namely +5VDC output, +24VDC relay power output, and isolated +24VDC output, which can supply power to different circuits and modules respectively.
Status Indication: Equipped with LED status indicators, including a PWR indicator to monitor whether the module receives sufficient external power, an OK indicator to show the overall operating status of the module, and RUN and BATT indicators to indicate battery charging status.
Communication Port: Built-in RS485 communication port, which can be used for communication with other devices or systems.
Installation Method: Usually installed in the leftmost slot of the PLC rack to supply power to the backplane, supporting the normal operation of modules connected to the backplane.
