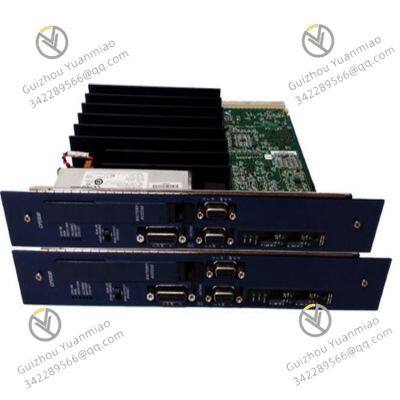

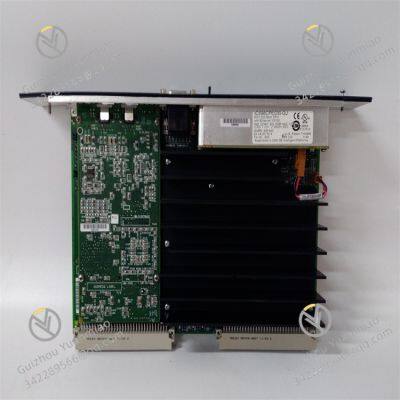

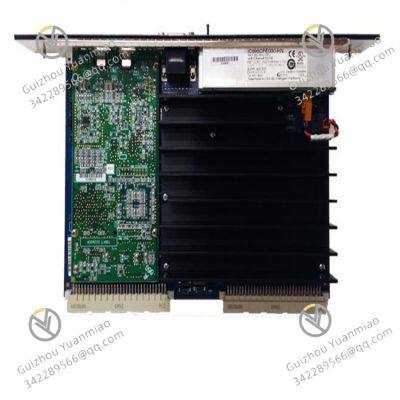

IC698CPE030 CPU Module

Guizhou Yuanmiao Automation Equipment Co., Ltd. Gold Verified Supplier

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

IC698CPE030 is a central processing unit (CPU) module in the GE Fanuc Emerson PACSystems RX7i series. Here are its detailed specifications:

Hardware Parameters

Processor: 600MHz Pentium-M microprocessor
Memory: 64MB RAM and 64MB user flash memory
Communication Interfaces: Typically includes two Ethernet ports, one RS232 port, one RS485 port, and one Station manager port
Dimensions: Approximately 15.2 x 10.2 x 5.1 cm
Weight: Approximately 0.45 kg
Power Requirements: +5VDC, 3.2A (rated); +12VDC, 0.003A (rated); -12VDC, 0.003A (rated)
Operating Temperature Range: 0°C to 60°C

Performance Features

High Processing Power: The 600MHz processor enables fast execution of complex control tasks, with a Boolean execution speed of approximately 0.069ms per 1,000 Boolean contacts/coils.
Rich Communication Capabilities: Supports multiple communication protocols, including SRTP, Modbus TCP (server and client), Ethernet Global Data (EGD), Modbus RTU Slave, SNP, and Serial I/O, facilitating seamless integration with various devices.
Ample Storage Capacity: 64MB RAM and 64MB Flash memory provide sufficient space for storing large programs and data, supporting multitasking for enhanced system efficiency.
Diverse Programming Languages: Supports programming in C, ladder logic, structured text, function block diagrams, and other IEC 61131-3 languages, offering flexibility for developers.

Functional Characteristics

Self-Diagnostic Function: Performs a complete self-diagnostic check upon power-up. During initialization, LEDs indicate status through specific blinking sequences, with the OK LED flashing before remaining solid once initialization is complete.
Battery Backup: Equipped with a lithium battery pack (e.g., IC698ACC701) to preserve user memory and maintain the real-time clock during power outages.

Compatibility

Complies with the VME64 standard and is compatible with various modules from the Series 90-70, including digital and analog I/O modules, communication modules, and VME-compatible devices.

Application Fields

Primarily used in industrial automation control systems for real-time control of processes and material handling.
Suitable for applications such as process control, automated production lines, robotics, and smart devices across industries including chemical, pharmaceutical, automotive manufacturing, and electronics.
