IS200STAOH2AAA Analog Output Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
IS200STAOH2AAA Analog Output Module thumbnail-1
IS200STAOH2AAA Analog Output Module thumbnail-2
IS200STAOH2AAA Analog Output Module thumbnail-3
IS200STAOH2AAA Analog Output Module photo-1

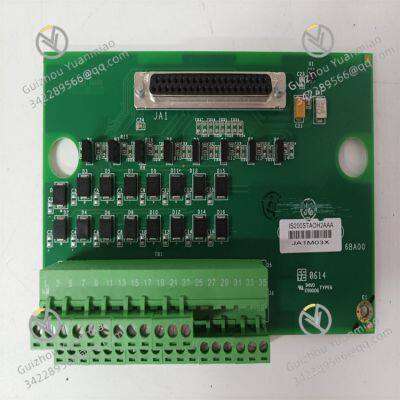

IS200STAOH2AAA Analog Output Module photo-2

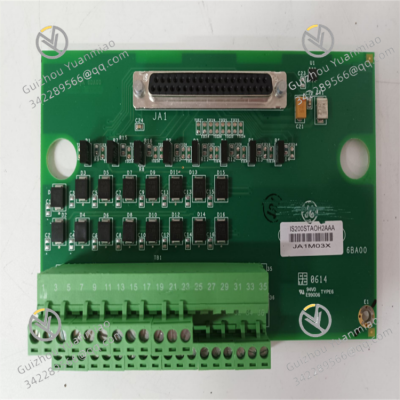

IS200STAOH2AAA Analog Output Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




    IS200STAOH2AAA is an analog output module designed by General Electric (GE) for its Mark VI control system. It is mainly used to convert digital signals into analog signals to control external actuators or regulating devices. Here are its detailed specifications:
    Basic Information

    • Series Affiliation: GE Mark VI control system

    • Function and Purpose: As an analog output module, it converts digital commands from the control system into standard analog signals (such as current or voltage) to drive external devices like control valves, frequency converters, and actuators, enabling precise control.

    • Product Positioning: Industrial-grade control module, suitable for critical control occasions.

    Technical Parameters

    • Number of Output Channels: Typically 8 channels, capable of outputting 8 independent analog signals simultaneously.

    • Output Signal Types:

      • Current output: 4-20mA (default), 0-20mA, etc., optional.

      • Voltage output: 0-10V, ±10V, etc. (supported by some models, requires configuration).

    • Output Accuracy: Typical value ±0.1% of full scale (depending on temperature and load conditions).

    • Resolution: 16 bits or higher, providing fine signal adjustment capability.

    • Update Rate: Up to 10Hz, supporting fast control response.


     GE IS200STAOH2AAA


    • Load Capacity:

      • Current output: Maximum load resistance is usually 750Ω (for 4-20mA).

      • Voltage output: Minimum load resistance is usually 10kΩ.

    • Isolation Characteristics:

      • Isolation between channels: Optocoupler isolation, isolation voltage ≥500V DC.

      • Isolation from the system: Supports hot swapping, avoiding interference with system operation.

    • Physical Characteristics

    • Dimensions: Standard GE module size, approximately 177.8mm × 101.6mm × 25.4mm (7 inches × 4 inches × 1 inch).

    • Weight: Approximately 0.5kg.

    • Mounting Method: Supports rack mounting, can be directly inserted into the standard cabinet of the Mark VI system.


    IS200STAOH2AAA (1)
