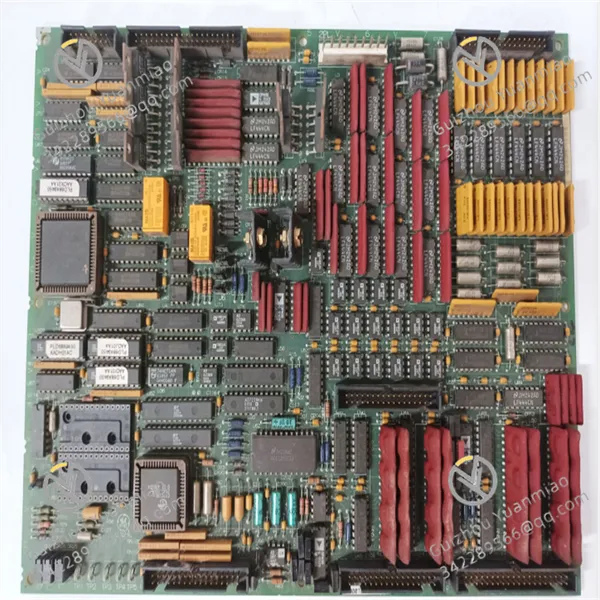

DS200TCQAG1BHF Digital Input/Output (I/O) Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

DS200TCQAG1BHF is a key module in General Electric (GE)'s Speedtronic Mark VI control system, fully known as "Turbine Control and Protection I/O Module". It is mainly used for the control and protection of gas turbines and steam turbines. Here are its detailed specifications:
Product Parameters

Parameter	Details
Model	DS200TCQAG1BHF
Series	Speedtronic Mark VI
Function	Turbine control and protection I/O module, processing key control signals
Input/Output Type	Mixed analog and digital signals (supports thermocouples, RTDs, voltage, current, etc.)
Number of Channels	Typically 16 analog inputs + 16 digital inputs/outputs (configurable)
Input Signal Range	-10V to +10V (voltage), 4-20mA (current), thermocouples (types J, K, T, E), RTDs (PT100, PT1000)
Resolution	16-bit (analog)
Sampling Rate	Up to 10kHz (depending on configuration)
Isolation Voltage	1500VDC between channels
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +125°C
Humidity	5%-95% (non-condensing)
Power Supply	24VDC (with redundant power supply support), power consumption approx. 15W
Communication Interface	IONet (GE proprietary), Modbus TCP (optional)
Dimensions	177.8mm × 139.7mm × 63.5mm (7 inches × 5.5 inches × 2.5 inches)
Weight	Approximately 1.36kg (3 lbs)
Certifications	UL, CSA, CE, ATEX (explosion-proof models optional)

Supports multiple sensor types, including direct connection to thermocouples, RTDs (for temperature measurement), as well as pressure and flow transmitters.
Built-in cold-junction compensation (for thermocouple inputs) and linearization algorithms to ensure temperature measurement accuracy.

Hot-swappable, allowing on-line module replacement without interrupting system operation.
Dual redundant IONet communication interfaces to ensure reliable connection with the main controller.
Fail-Safe mechanism to automatically trigger preset protection logic in abnormal situations.

Front-panel LED indicators display power, communication, and channel status.
Real-time monitoring of each channel's signal value, alarm status, and fault codes via Mark VIe software.
Supports channel-level self-diagnosis to detect faults such as sensor disconnection and short circuits.

Each channel can be independently configured with different input/output types and ranges.
Supports filtering and digital signal processing to suppress interference and noise.
