SD812F 3BDH000014R1 Power Module

SD812F 3BDH000014R1 Power Module photo-1

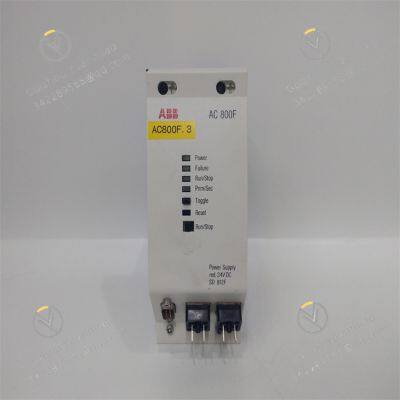

SD812F 3BDH000014R1 Power Module photo-2
SD812F 3BDH000014R1 Power Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





  • Product Overview: SD812F 3BDH000014R1 is a high-performance industrial power supply module launched by ABB, belonging to the ABB PM800 series. It is specially designed for industrial automation systems, featuring a redundant design and fault diagnosis function, and supports hot swapping, ensuring stable operation of equipment in harsh environments.
  • Technical Parameters:
    • Output Voltage: 24V DC.

    • Input Voltage Range: 85VAC~264VAC.

    • Output Current: Varies according to specific models, up to 12A.

    • Operating Temperature Range: -20°C to +70°C.

    • Protection Class: IP20.

    • Dimensions: 155mm×155mm×67mm.

    • Weight: 0.46kg or 0.5kg.

    • Efficiency: Over 90%.

    • Protection Functions: Equipped with overcurrent, short-circuit, and overvoltage protection.

    • Certifications: Complies with international standards such as CE and RoHS.

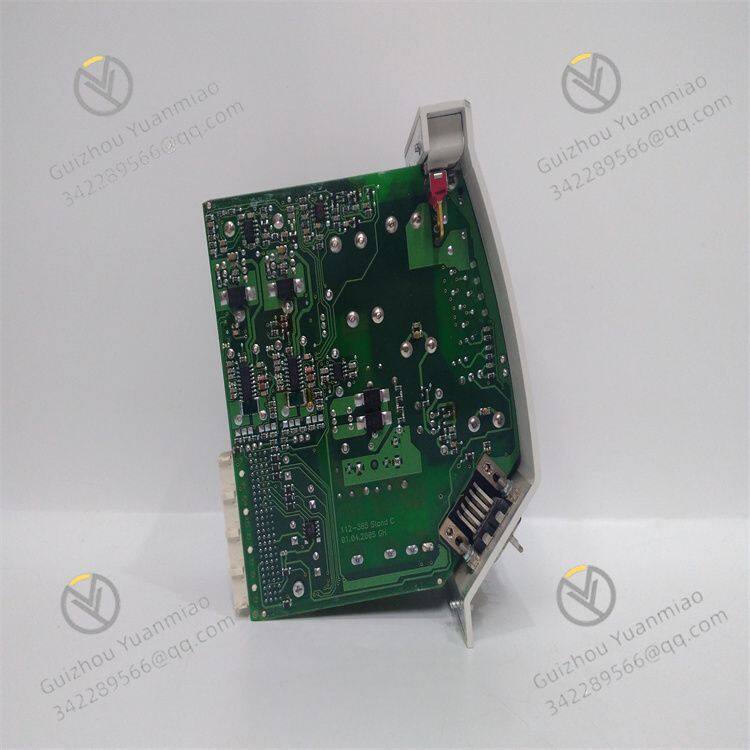

SD812F 3BDH000014R1 (1)



    • Functional Features:
      • High Reliability: Made of high-quality materials, it is durable and reliable.

      • High Efficiency: Utilizes advanced power management technology to ensure low power consumption.

      • Low Ripple: Low output ripple, suitable for applications with high requirements on power quality.

      • Redundant Design: Supports hot swapping to improve system reliability.

      • Fault Diagnosis: Equipped with a diagnostic interface for storing and transmitting diagnostic data.

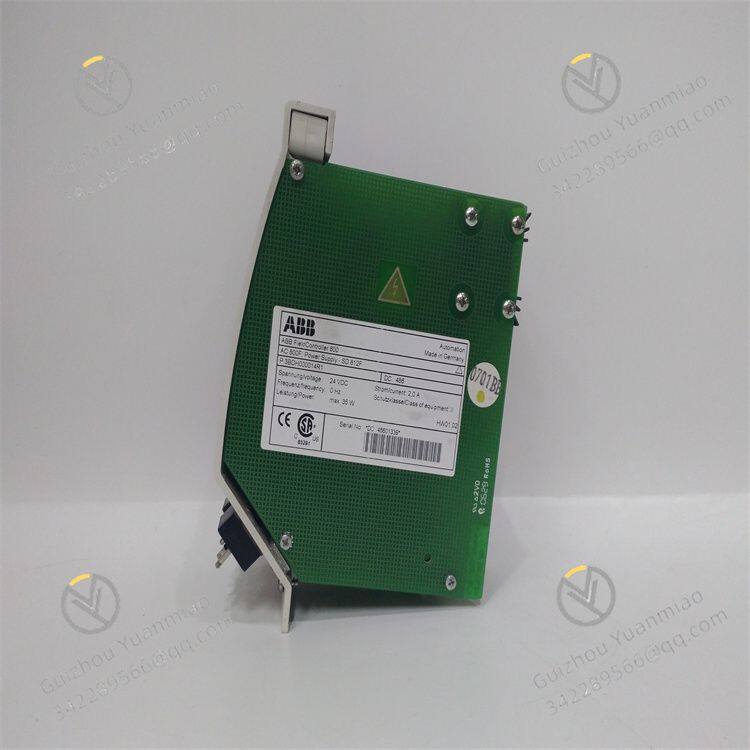

SD812F 3BDH000014R1 (3)
