ABB PPD113B01-23-111000 Controller

ABB PPD113B01-23-111000 Controller photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating Temperature -20°C to +60°C
Rated Power 150kW

Overview

ABB PPD113B01-23-111000 is a key and core module in the AC 800PEC control system. The AC 800PEC series plays an extremely important role in the field of industrial automation due to its excellent high performance and high reliability. PPD113B01-23-111000 is mainly responsible for the real-time monitoring and precise control of industrial processes. It can efficiently collect various industrial signals, perform accurate processing and rapid transmission, provide stable and reliable data support for the entire automation system, and ensure the efficient, stable and smooth operation of industrial production processes. This module has strong compatibility, can work with many different types of equipment, and is widely used in various complex industrial automation scenarios.

Technical Parameters

  • Input Voltage: The applicable range is 200-250VAC, with a frequency of 47-63Hz, which can well adapt to common industrial power supply environments and ensure the stable operation of equipment.

  • Rated Power: Up to 150kW, which can fully meet industrial application scenarios with large power demand.

  • Rated Voltage: Provides a stable 150VDC output, meeting the power standards of related equipment.

  • Rated Current: Has a strong current-carrying capacity of 1000A, which is sufficient to support the normal operation of large equipment.

  • Operating Temperature Range: The normal operating temperature range is generally -40℃ to +70℃. In some cases, it can also work stably in the environment of -20℃ to +60℃. Whether it is a high-temperature smelting workshop or a cold outdoor work site, it can maintain normal operation.

  • Data Bus: Adopts an advanced 32-bit data bus with a data bandwidth of up to 100Mbps, effectively ensuring fast data transmission and processing, and meeting the real-time requirements of industrial production.

  • Transmission Rate: Maintained at 10Mbit/s to ensure stable and efficient data communication.

  • Memory Access: 8MB memory access address field and 8MB I/O access address field are reserved to facilitate data storage and calling, and provide sufficient space for system operation and data processing.

  • Interface Type: The front panel is equipped with a 15-pin SUB-D socket with a slide lock for the AUI interface, which can be conveniently connected to commercial transceivers with AUI connectors (15-pin female plug DIN 41652) to achieve effective communication with external devices.

  • Protection Level: Reaches IP20, which can effectively block the intrusion of large particles of dust, provide certain protection for internal precision circuits, and is suitable for installation environments in general industrial control cabinets.

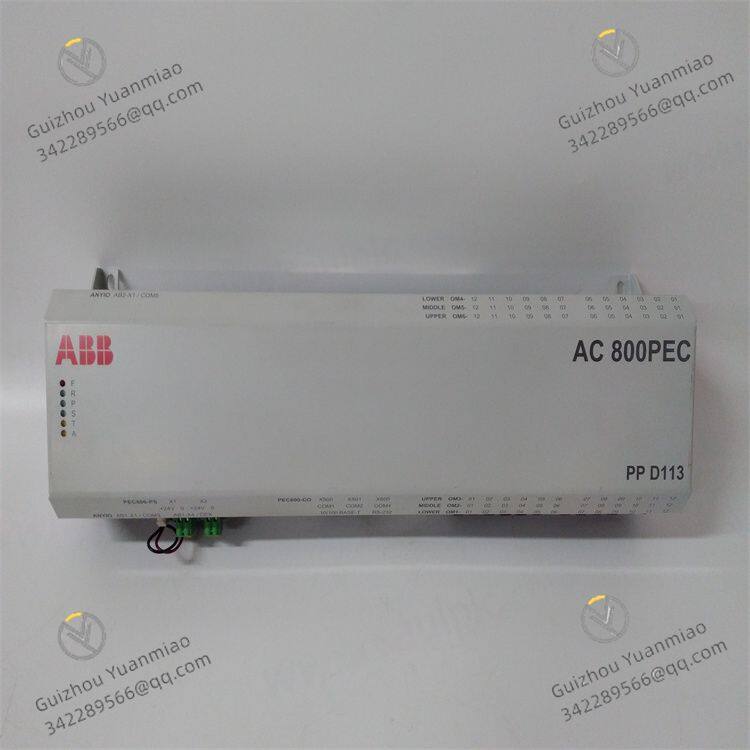

PPD113B01-10-150000 3BHR023784R1023 (4)

Application Fields

  • Electrolytic Industry: In the electrolytic production process of copper, zinc and other metals, PPD113B01-23-111000 can realize IDC current step compensation to ensure the smooth progress of the electrolytic process when the current changes; its perfect protection functions such as overcurrent, overvoltage and phase imbalance can effectively protect expensive electrolytic equipment and strongly ensure the continuity and stability of production.

  • Power Industry: It can be applied to the power distribution and monitoring system of power plants to accurately monitor and control parameters such as current and voltage to ensure stable power supply. In the substation scenario, it can monitor the operating status of various power equipment in real time, timely find and deal with abnormal situations, and ensure the safe and reliable operation of the power grid.

  • Metallurgical Industry: In steelmaking, steel rolling and other production links, it collects and controls parameters such as temperature, pressure and flow of equipment with high precision. Taking the temperature control of the steelmaking furnace as an example, it can be accurately adjusted to ensure the quality of molten steel and the smelting effect; in terms of pressure control of the hydraulic system of the rolling mill, it can ensure the stability and precision of the steel rolling process.

  • Manufacturing Industry: Widely used in various manufacturing production lines to monitor the operating status of production equipment in real time and collect data. In the automobile manufacturing production line, it can monitor the operating parameters of robots and the status of the power system of equipment, and improve production efficiency and product quality through precise control.

  • Port and Logistics: It is used for the control and monitoring of port cranes, conveyor belts and other equipment. Through accurate signal collection and processing, it realizes efficient operation and automatic control of equipment, and improves the efficiency of cargo loading, unloading and transportation. For example, it can precisely control the lifting speed and position of the crane to ensure the safe lifting of goods.
