Home > Electrical & Electronics > Electrical Control System > GE DS200TCCAG1BAA Analog I/O Module

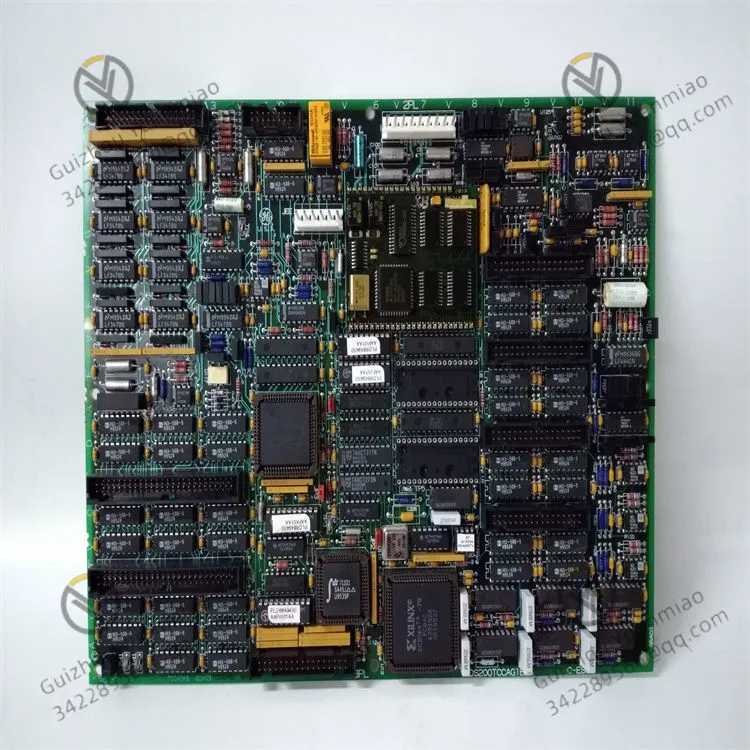

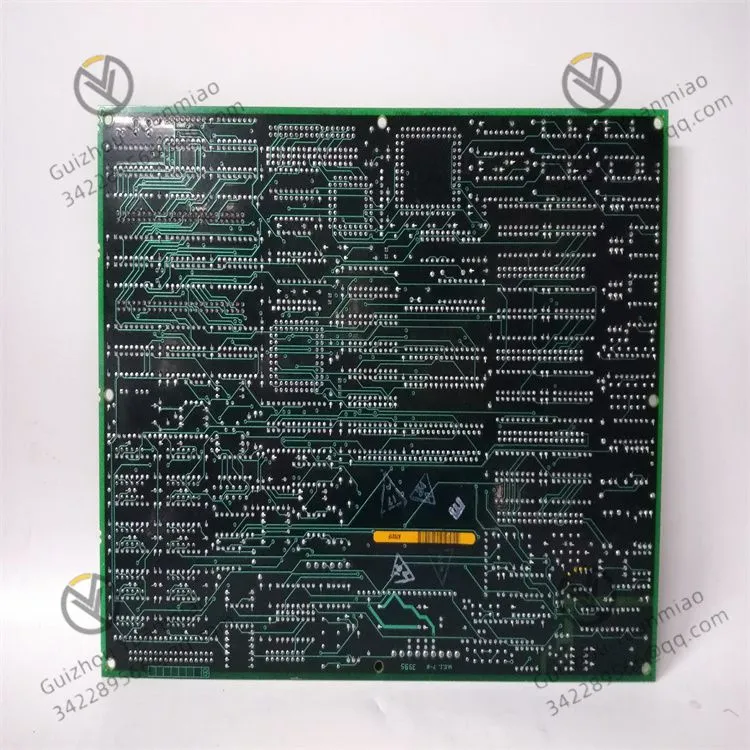

GE DS200TCCAG1BAA Analog I/O Module

GE DS200TCCAG1BAA Analog I/O Module thumbnail-2

GE DS200TCCAG1BAA Analog I/O Module photo-1

GE DS200TCCAG1BAA Analog I/O Module photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE DS200TCCAG1BAA analog I/O module

DS200TCCAG1BAA is a module manufactured by General Electric (GE), belonging to the TC2000 sub-series of the Mark V series. The following is a detailed introduction to it:

Basic Information

Product Type: Analog I/O module.
Function: Mainly used in industrial automation systems to achieve signal acquisition and transmission. It can convert analog sensor signals into digital signals and convert digital signals into analog signals to control actuators.

Main Parameters

Input/Output Channels: Equipped with 8 analog input channels and 8 analog output channels.
Input Range: -10V to +10V.
Output Range: 0V to 10V.
Resolution: 0.1%.
Operating Temperature Range: -50°C to 105°C.
Power Supply Voltage: 24VDC.
Protection Level: IP65.
Communication Interface: Equipped with an RS485 communication interface.
Dimensions: 230mm x 165mm x 40mm.
Weight: Approximately 0.5kg.
Shell Material: Aluminum alloy.
Installation Method: DIN rail installation.

Product Features1. High-precision Signal Processing Capability

High Resolution and Low Error: With a resolution of 0.1%, it can accurately capture subtle changes in analog signals to ensure the accuracy of measurement data; the signal conversion error is low, suitable for industrial scenarios with strict precision requirements (such as precision sensor signal acquisition).
Wide Range Adaptation: The input range covers -10V to +10V, and the output range is 0V to 10V, which can be compatible with various standard analog signals (such as voltage outputs of sensors and control signals of actuators) to meet the interface requirements of different devices.

2. High Reliability and Environmental Adaptability

Wide Temperature Working Range: It can operate stably in extreme temperature environments from -50°C to 105°C, suitable for high-temperature industrial sites (such as power plant turbine rooms) or low-temperature outdoor scenarios (such as oil and gas pipeline monitoring).
Strong Protection Design: The protection level reaches IP65, with dust-proof and low-pressure water-spraying capabilities, which can resist dust, moisture, and liquid splashing in the industrial environment and reduce the risk of failure.
Anti-interference Performance: Adopting electrical isolation design and shielding measures, it can effectively resist electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring the stability of signal transmission, especially suitable for complex electromagnetic environments (such as near frequency converters and motors).

3. Flexible Modularity and Expandability

Multi-channel Integration: Built-in 8 analog input channels and 8 analog output channels, supporting simultaneous processing of multiple signals, reducing the number of system components, and saving control cabinet space.
Extensible Design: Supports connecting additional modules (such as digital I/O modules and communication modules) through expansion boards, flexibly expanding functions (such as increasing the number of channels and upgrading communication protocols) to adapt to the later upgrading needs of the system.
Standardized Interface: Equipped with an RS485 communication interface, supporting industrial communication protocols such as Modbus, which is convenient for integration with PLC, DCS systems, or upper computers to achieve real-time data transmission and remote control.

4. Convenient Installation and Maintenance

DIN Rail Installation: Adopting a standardized DIN rail installation method, it can be quickly fixed to the control cabinet without additional tools, with high installation efficiency and neat layout.
Hot-swappable Support: Supports hot-swapping (needs to meet safety specifications), eliminating the need to shut down during maintenance, reducing downtime in industrial production, and improving system availability.
Status Visualization: The module is equipped with LED indicators to display the working status of power supply, communication, and channels in real time, facilitating quick location of faults (such as channel anomalies and communication interruptions).

5. Industrial-grade Durability Design

High-quality Hardware: The shell is made of aluminum alloy, combining light weight and high strength, which can resist mechanical vibration and impact (in line with industrial vibration standards), suitable for installation in moving equipment or high-frequency vibration scenarios (such as compressor control).
Long-life Components: The internal use of industrial-grade capacitors, resistors, and other components, after high-temperature aging tests, ensures long-term stable operation, with an average time between failures (MTBF) of more than 100,000 hours.

6. Compatibility and System Integration Advantages

Mark V Series Adaptation: As a TC2000 sub-module of the GE Mark V series, it is seamlessly compatible with the series' controllers, power modules, etc., and can be directly connected to the original Speedtronic system (such as steam turbine and gas turbine control systems), reducing integration and debugging costs.
Cross-industry Applicability: It is not only suitable for the energy field (power generation, oil and gas), but also can be applied in the process control of chemical, manufacturing, food and beverage industries, etc., to meet the monitoring and control of analog quantities such as temperature, pressure, and flow.

Application Scenarios

Industrial Automation: It can be used in general control systems, data acquisition, and monitoring systems to monitor various industrial production processes.
Turbine Control: In the power plant and oil and gas industries, it can monitor and control the speed, temperature, pressure, etc., of turbines to ensure the normal operation of turbines.
Process Control: Suitable for industries such as manufacturing, chemical, and food and beverage, to measure and control variables in the production process, ensuring the stability of the production process and product quality.
Energy Management: In the energy management system, it can be used to monitor and control energy consumption, helping to achieve the rational use of energy and energy-saving goals.
