136719-01 is a temperature monitoring module in the Bently Nevada 3500 series monitoring system, primarily used to collect and process temperature signals from industrial equipment, providing critical data for mechanical condition monitoring and fault diagnosis. The following is a compilation of relevant content from its user manual:
Product Overview
Designed for high-precision temperature monitoring, this module supports multiple types of temperature sensors (such as Resistance Temperature Detectors (RTD) and Thermocouples (TC)). It can process temperature signals from multiple channels simultaneously, featuring signal conditioning, digital conversion, and abnormal alarm functions. With a modular design, it can be directly integrated into the 3500 system rack, working in collaboration with vibration, displacement, and other monitoring modules to build a comprehensive equipment condition monitoring network.
Technical Parameters

  • Power Supply: 24V DC input, typical power consumption ≤ 5W.

  • Channel Configuration: 8 independent temperature input channels, supporting mixed configuration of RTD/TC sensors.

  • Supported Sensor Types:

    • RTD: Compatible with standard types such as PT100, PT500, PT1000; measurement range -200°C to +850°C.

    • TC: Compatible with thermocouple types including J, K, T, E, R, S, B; measurement range -200°C to +1800°C (depending on the type).

  • Accuracy and Resolution:

    • RTD measurement accuracy: ±0.1°C (within -50°C to +200°C), resolution 0.01°C.

    • TC measurement accuracy: ±1°C or ±0.1% (whichever is larger), resolution 0.1°C.




136719-01 (1)



  • Sampling Rate: 10Hz per channel (configurable, up to 50Hz), with all channels sampling synchronously.

  • Isolation Performance: Optoelectronic isolation between channels and between channels and the backplane, isolation voltage 2500V AC (for 1 minute), common-mode interference rejection ≥ 100dB.

  • Operating Environment:

    • Operating temperature: -40°C to +70°C;

    • Storage temperature: -50°C to +85°C;

    • Relative humidity: 5% to 95% (non-condensing);

    • Vibration resistance: 5g (10Hz-2000Hz);

    • Shock resistance: 25g (11ms half-sine wave).

  • Mechanical Specifications: Approximately 100mm × 150mm × 35mm (half-height module), weight about 0.4kg.

Functional Features

  • Multi-Sensor Compatibility: The module can simultaneously connect to different types of temperature sensors (RTD/TC), adapting to complex monitoring requirements.

  • Intelligent Cold Junction Compensation: Built-in cold junction compensation circuit for thermocouple measurements, automatically correcting the influence of ambient temperature to ensure measurement accuracy.

  • Digital Filtering: Each channel supports programmable digital filtering (low-pass filtering with cutoff frequencies configurable as 1Hz, 5Hz, 10Hz) to suppress high-frequency noise.

  • Fault Diagnosis: Real-time monitoring of sensor status, supporting functions such as open-circuit detection, over-range alarm, and cold junction compensation failure alarm. Fault information can be transmitted to the upper computer via the system bus.

  • Linearization Processing: Built-in polynomial fitting for nonlinear sensors (such as K-type thermocouples) to directly output linearized temperature values, simplifying subsequent data processing.

Installation and Wiring

  • Installation Position: As a half-height module of the 3500 system, it can be installed in slots 3-14 of the full-size rack or slots 3-7 of the mini rack, and must be used with the 3500/20 RIM module for configuration and communication.

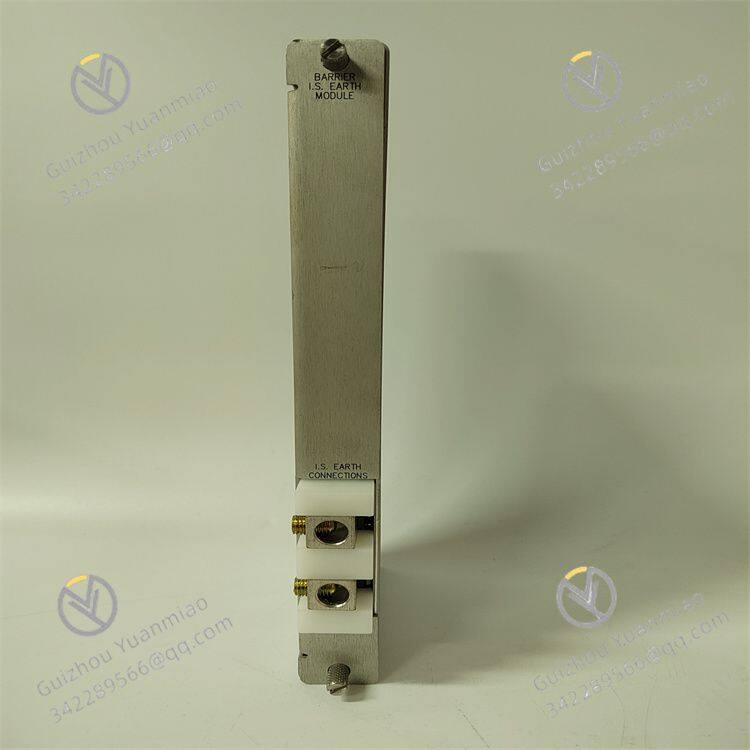

136719-01 (2)
