BENTLY 106M1081-01 Universal AC Power Input Module

BENTLY 106M1081-01 Universal AC Power Input Module thumbnail-1
BENTLY 106M1081-01 Universal AC Power Input Module thumbnail-2
BENTLY 106M1081-01 Universal AC Power Input Module photo-1
BENTLY 106M1081-01 Universal AC Power Input Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




106M1081-01 is a universal AC power input module from Bently Nevada, used in the 3500/15 system. The following is a compilation of relevant content from its user manual:
Product Overview
The 106M1081-01 universal AC power input module provides stable and reliable power input for industrial automation and monitoring systems. It can accept AC power input, convert it to DC power output required by equipment, and provide multiple types of output signals to meet different application requirements.
Technical Specifications

  • Input Voltage: Universal AC voltage, 85 to 264Vac rms.

  • Input Frequency: 47 to 63Hz.

  • Output Voltage: Typically 5VDC.

  • Output Current: Up to 10A.

  • Operating Temperature: -30°C to +65°C.

  • Storage Temperature: -40°C to +85°C.

  • Humidity: 95% relative humidity (non-condensing).

  • Dimensions: Approximately 25.15cm × 5.08cm × 12.07cm.

  • Weight: Approximately 0.8kg.

Functional Features

  • Power Conversion: Accepts AC power input and converts it to DC power output for equipment use.

  • Multiple Output Signals: Provides analog outputs (such as voltage or current outputs) or digital outputs (such as switch signals or digital communication protocols).

  • Safety and Reliability: Complies with industry standards and specifications, featuring safety isolation to prevent power interference from affecting the accuracy of measurement and control signals.

  • Strong Environmental Adaptability: Operates stably within a wide range of temperatures and humidity levels.

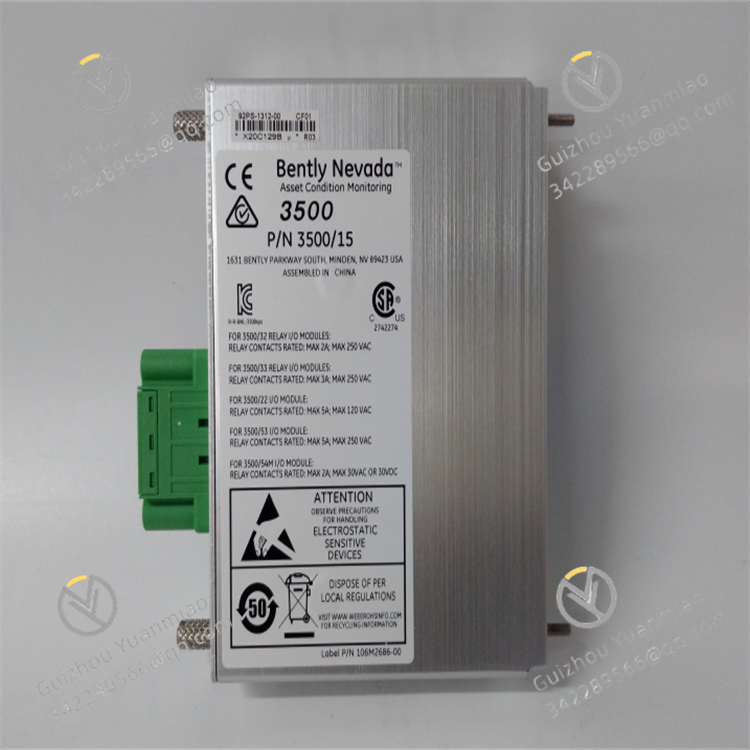

本特利-106M1081-01



Installation Guide

  • Installation Position: The 3500 power supply is a half-height module and must be installed in the specially designed slot on the left side of the frame.

  • Installation Method: Usually installed at the rear of the power module (depending on rack or tray mounting) or on top of the power supply (within the partition frame). If there is a backup power supply and corresponding power input module, unplugging or inserting the power input module will not affect the operation of the 3500 rack.

Operation Instructions
The module may be equipped with several configuration switches, such as switch groups SGF1…11, SGB1…8, and SGR1…11. These switches can be used to select functions required for different applications. For specific setting methods, refer to the markings on the module or related instruction documents. During the setting process, switch numbers 1…8 and positions 0 or 1 will be displayed.
Maintenance and Care

  • Regularly check the module for external damage and loose wiring, and ensure that the module's working status indicators are normal.

  • Clean dust from the module's surface with a dry, soft cloth at regular intervals. Do not use wet cloths or corrosive cleaning agents.

  • The module can be calibrated regularly according to actual usage conditions and accuracy requirements. For calibration methods, refer to more detailed technical documents or consult the manufacturer's technical support.

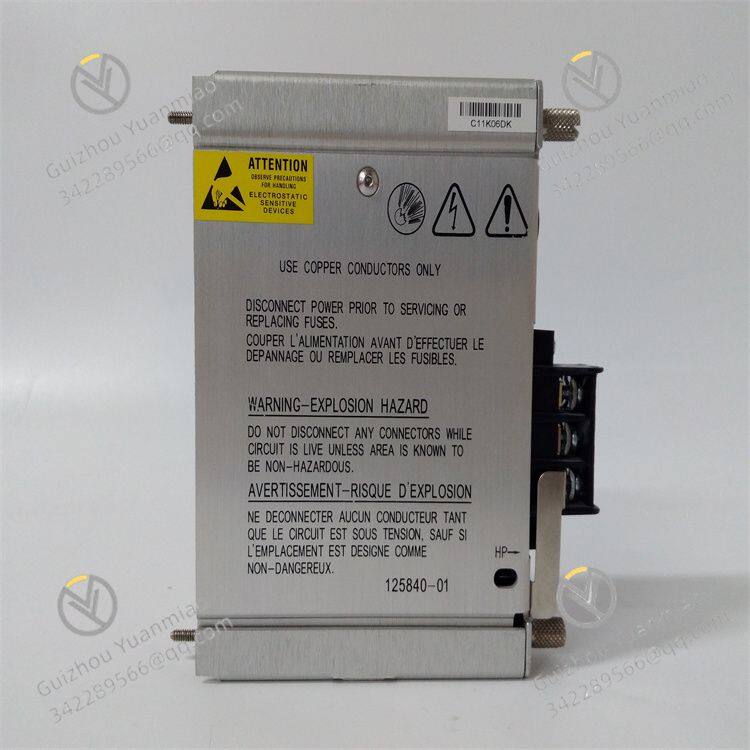

125840-01 15小卡老款 (3)
