KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series thumbnail-1
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series thumbnail-2
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series thumbnail-3
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series thumbnail-4
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series thumbnail-5
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series photo-1
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series photo-2
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series photo-3
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series photo-4
KJ3204X1-BA1 EMERSON 32 Channel Digital Output Module of DeltaV Series photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




 KJ3204X1-BA1. this product is a 32-channel digital output module in Emerson's DeltaV series. The following is an introduction to its related information:


  • Product Features:

    • Multi-Channel Independent Output: Equipped with 32 independent discrete output channels, each channel can work independently, ensuring flexible and reliable control.

    • High-Voltage Output: Provides 24VDC high-side switch output, suitable for various field devices such as valves, relays, and indicators.

    • High Current Driving Capacity: Each channel can handle a maximum current of 2A, capable of managing high-demand loads.

    • Comprehensive Protection Functions: Features surge and short-circuit protection, enhancing the module's durability and operational safety.

    • Hot-Swap Function: Supports hot-swapping, allowing module replacement without interrupting system operation.

    • Safety Certifications: Certified for hazardous areas by ATEX and IECEx, ensuring safe use in dangerous environments.

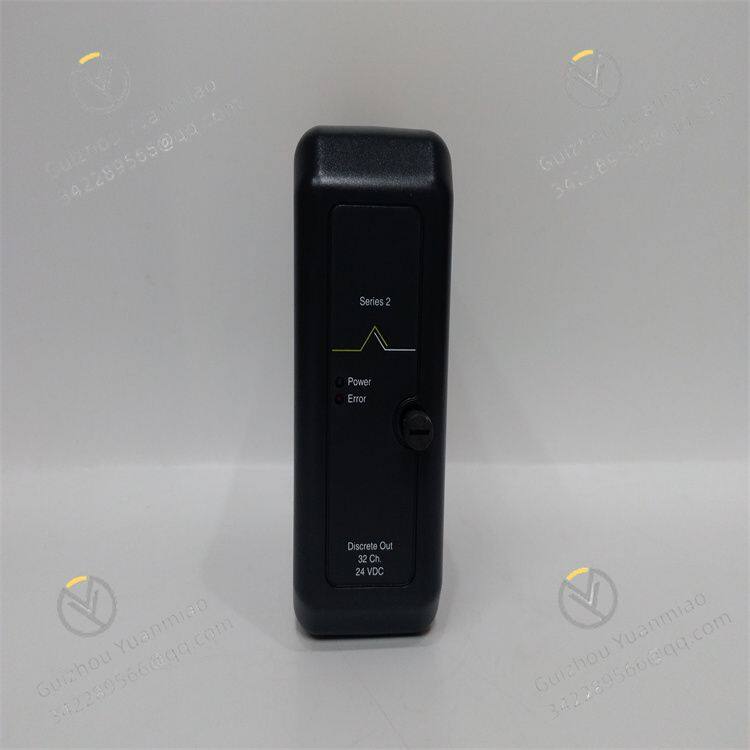

KJ3204X1-BA1 (3)


  • Technical Parameters:

    • Voltage Rating: 24VDC

    • Number of Channels: 32 channels

    • Isolation: Yes

    • Local Bus Power: 12VDC, 150mA

    • Field Circuit Rating: 24VDC, 100mA per channel

    • Operating Temperature: -40°C to +70°C

    • Storage Temperature: -40°C to +85°C

    • Shock Resistance: 10g peak acceleration, ½ sine wave, 11ms

    • Vibration Resistance: 2 to 13.2Hz with 1mm peak-to-peak; 13.2 to 150Hz with 0.7g peak-to-peak

    • Relative Humidity: 5% to 95%, non-condensing

    • Protection Class: IP20

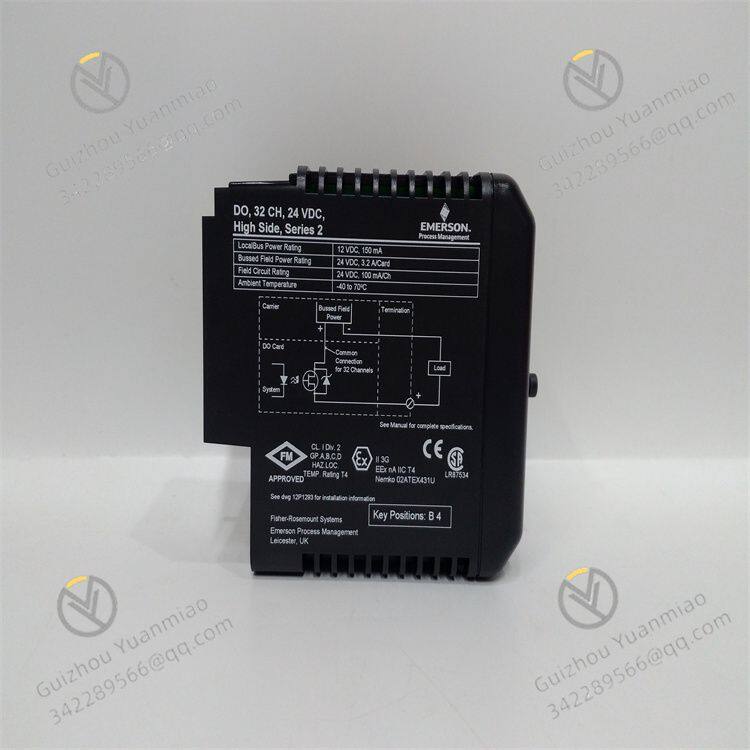

KJ3204X1-BA1 (2)






Related products:


EMERSONKJ2003X1-BA2
EMERSON1C31224G01
EMERSON1C31227G01
EMERSON1X00416H01
EMERSON1C31129G03
EMERSONSE3008
EMERSON5X00605G01


Product Tags: KJ3204X1-BA1 , EMERSON , 32 channel digital output module of DeltaV series
