ICS Triplex T9432 Analog Input Module

ICS Triplex T9432 Analog Input Module photo-1

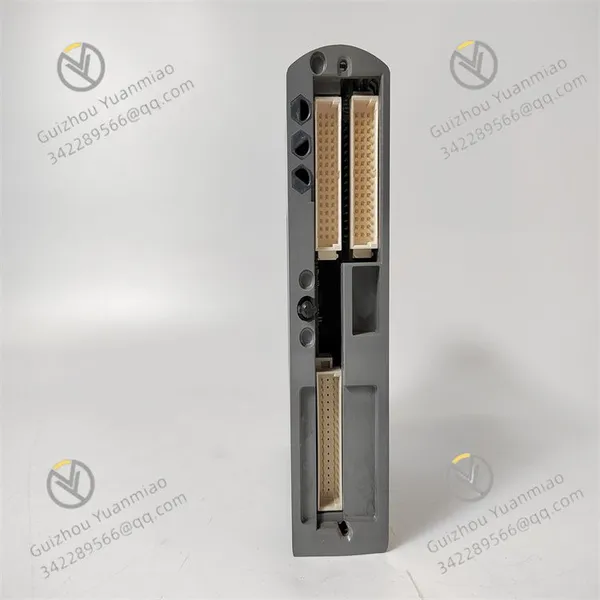

ICS Triplex T9432 Analog Input Module photo-2

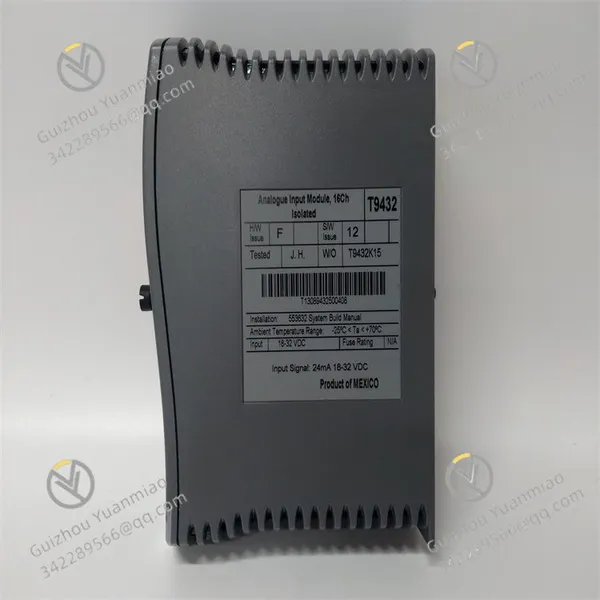

ICS Triplex T9432 Analog Input Module photo-3

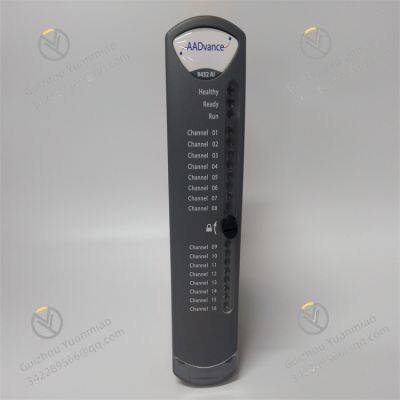

ICS Triplex T9432 Analog Input Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





ICS Triplex T9432  Product Features
  • High-precision Signal Acquisition
    Equipped with a 16-bit high-resolution ADC (Analog-to-Digital Converter), enabling precise measurement and conversion of subtle signal changes with an accuracy of ±0.1% FSR (typical), providing accurate process data for control systems.

  • Flexible Input Ranges
    Supports configurable input ranges including ±10V, ±5V, ±2.5V, ±1V, 0–10V, 0–5V, 1–5V, 0–20mA, 4–20mA, etc., adapting to various field sensors and transmitters.

  • Strong Anti-Interference Capability

    • Isolation voltage: 500Vdc between channels and between channels & system.

    • Common Mode Rejection Ratio (CMRR): >120dB (typical), effectively isolating electrical interference and suppressing common-mode voltage to maintain measurement accuracy.

  • Comprehensive Fault Diagnostics
    Features robust fault detection and diagnostic functions, promptly identifying abnormal input signals or module failures with system alarms. Some configurations include channel dropout detection.

  • On-line Calibration Support
    Allows users to calibrate the module via software tools, ensuring long-term measurement accuracy.

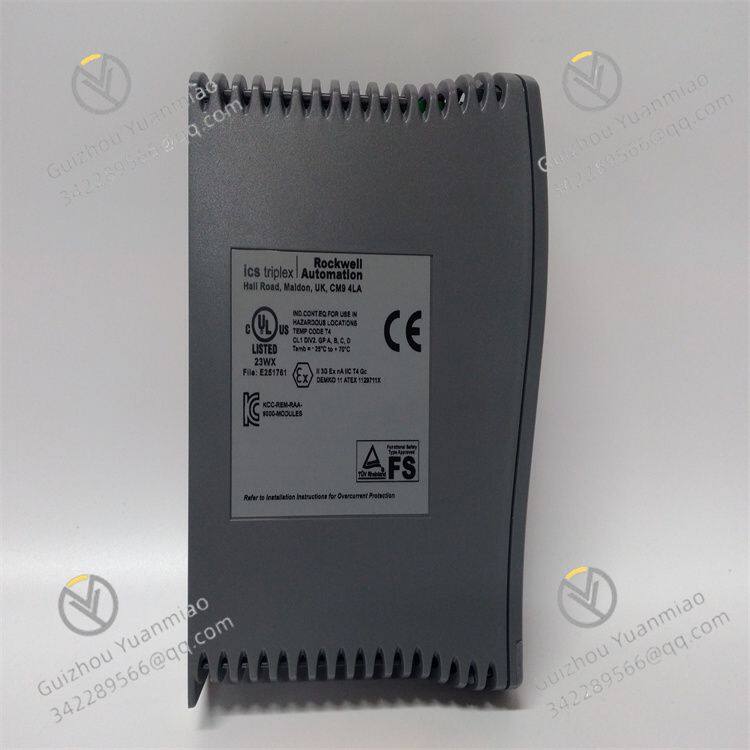

T9432 (1)


Technical Specifications
ParameterSpecification
Input Channels8
Input TypeConfigurable as differential or single-ended inputs
Sampling RateConfigurable, up to 100ms per channel (typical)
Operating Temperature-40°C to +70°C
Storage Temperature-40°C to +85°C
Relative Humidity5%–95% RH (non-condensing)
Dimensions110mm×180mm×45mm (typical)
Weight~0.3kg

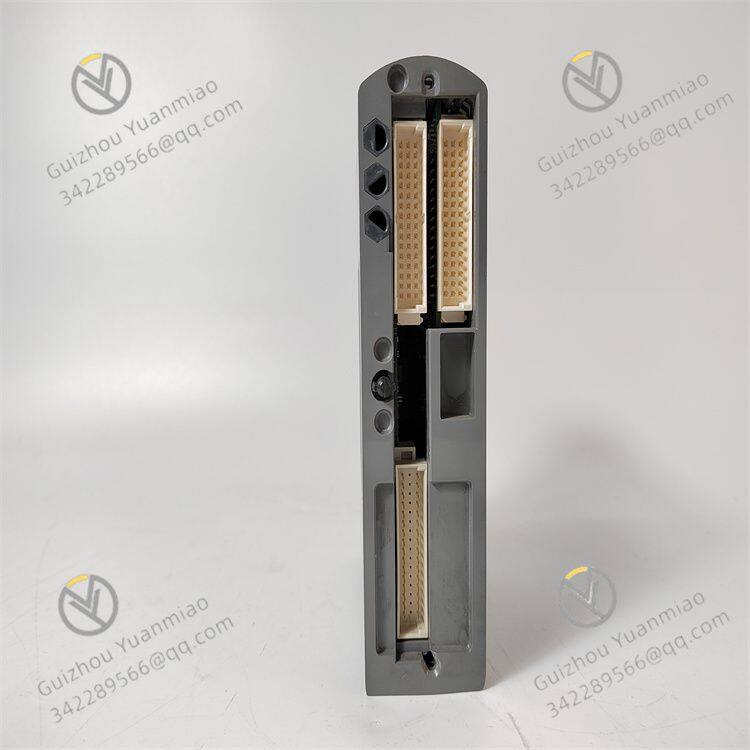

T9432 (2)
