Home > Electrical & Electronics > Electrical Control System > ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA thumbnail-1

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA thumbnail-2

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA thumbnail-3

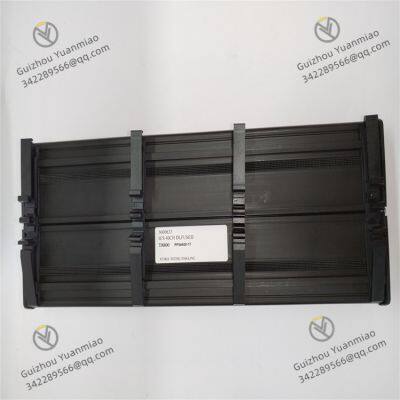

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA photo-1

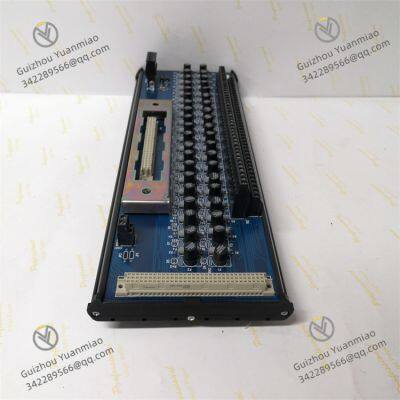

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA photo-2

ROCKWELL T8800 Trusted 40 Channel Analogue Input FTA photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -25°C to 70°C (-13°F to 158°F)

Humidity 5% - 95% (non - condensing)

Dimensions 335×111×51mm

I. Overview

ROCKWELL T8800, whose full name is Field Terminal Assembly (FTA), is a 40-channel analog input field terminal component under Rockwell, specially built for complex industrial automation environments. It plays a crucial role in industrial automation systems. As the primary interface between field devices that generate analog signals and Trusted TMR analog input modules, it undertakes the important task of connection and data interaction. By efficiently integrating analog input signals from various field devices, it provides an accurate and stable data foundation for the entire automated control system, ensuring the stable operation of the system. This device can be closely integrated with a variety of engineering applications, such as Programmable Logic Controller (PLC) programming tools, Distributed Control Systems (DCS), asset management applications, etc. It can also connect the Graphical User Interface (GUI) with components through specific software interfaces, bringing users a familiar and convenient operating experience.

II. Technical Parameters

(1) Physical Specification Parameters
Dimensions: The overall size is 335×111×51mm (13.2 inches × 4.4 inches × 2 inches). Its compact structural design allows it to be easily arranged in the limited space of the control cabinet without occupying too much space, facilitating installation and deployment in industrial sites.
Weight: Approximately 0.9kg (2.0 pounds). Its light weight enables single-person easy operation during installation and maintenance, reducing manual labor intensity and improving work efficiency.
Country of Origin: The United States. Relying on advanced American industrial manufacturing technology and strict quality control systems, every link from research and development to production is strictly controlled to ensure the product has excellent quality.

(2) Power Supply Parameters
Power Supply Design: It adopts dual DC field power supply, connected to FTA through 5-terminal PWR TB. This dual power supply redundancy design greatly improves the stability of the device's power supply. When one power supply fails, the other can automatically and seamlessly switch to continue supplying power to the device, avoiding data transmission interruption caused by power supply problems and ensuring the continuity of industrial production processes.
Power Supply Adaptation Range: The system power supply voltage range is 20 to 32Vdc, and the working output/field voltage range is 18 to 60V DC. It can adapt to complex and variable power supply environments in different industrial sites, and can operate stably in both standard power supply scenarios and special working conditions with certain voltage fluctuations.

(3) Environmental Adaptability Parameters
Operating Temperature Range: The operating temperature range is -25°C to 70°C (-13°F to 158°F). It can work normally in extreme temperature environments such as high-temperature metallurgical and forging workshops, as well as low-temperature cold storage and polar research stations. The interior of the device uses special heat-dissipating, cold-resistant materials and circuit designs to ensure that the performance of electronic components is not affected under different temperature conditions and maintain stable data communication functions.
Storage Temperature Range: The storage temperature range is -40°C to 85°C (-40°F to 185°F). Even if exposed to extreme temperatures during long-distance transportation and long-term storage, the device can still maintain good performance without failure when put into use again.
Humidity Adaptability: It can operate stably in an environment with a relative humidity of 10% - 95% (non-condensing). The device's circuit board uses moisture-proof and mildew-proof coatings and special protective materials, effectively avoiding circuit short circuits, corrosion and other faults caused by humidity problems, and is suitable for industrial scenarios with high humidity such as coastal factories and food processing plants.
Vibration and Impact Resistance: It meets relevant international standards, can withstand 1g vibration in the frequency range of 9 - 150Hz, and can withstand 15g, half-sine wave impact force with a duration of 11ms. In the complex mechanical vibration environment of industrial sites and the bumpy conditions during transportation, the internal electronic components and circuit boards of the device can effectively resist vibration and impact without damage, ensuring the normal operation of data communication functions.

(4) Communication and Interface Parameters
Interface Types and Parameters:
Input Interface: It has strong signal access capability, providing up to 40 input channels for connecting various field devices that generate analog inputs, such as sensors and transmitters. The input signal is connected to 12 3-way terminals and 2 2-way terminals through a 2-wire system.
Electrical Parameters: The input terminal type is MK KDS: 3, and the power terminal type is MVST BR. The acceptable wire specifications are UL 30 - 12 AWG (15A 300V) and CSA 28 - 12 AWG (10A 300V). It has a built-in 250Ω, 0.5W step-down resistor to ensure the stability and accuracy of the input signal during transmission and conversion.
Communication Protocol Support: Although no specific communication protocol is specified, relying on the compatibility advantages of Rockwell Automation products, it can be inferred that it can work with common industrial communication protocols, such as Modbus, facilitating data interaction and sharing with other devices and systems, realizing interconnection between devices and integrating into complex industrial automation networks.

III. Functional Features
(1) High Reliability
Redundancy Design: Dual DC field power supply redundancy ensures uninterrupted power supply for the device in key application scenarios. At the same time, there are certain redundancy mechanisms in communication links and other aspects. When a communication path fails, the system can automatically switch to the backup path to ensure uninterrupted data transmission, reduce the risk of production accidents caused by communication and power supply problems, and lay a solid foundation for the stable operation of industrial production.
Self-detection Function: Equipped with complete self-detection facilities, it continuously monitors the hardware status, power input, communication links, etc. in real-time. Once hardware failures, power abnormalities, communication interruptions and other problems are detected, it can quickly issue an alarm and initially locate the fault point with the help of the internal fault diagnosis mechanism, providing strong support for maintenance personnel to quickly solve problems, greatly shortening the time for equipment fault detection, and improving the maintainability and operational stability of the equipment.
Compliance with Industry Standards: It is designed and manufactured in strict accordance with relevant industrial standards, meeting high industry requirements in terms of design, performance and reliability, ensuring stable and reliable operation in key industrial control scenarios, and meeting the needs of industries such as petroleum, chemical industry and electric power that have extremely high requirements for equipment stability.

(2) Efficient Data Processing and Transmission
Efficient Data Reading and Output: It can quickly and accurately read various analog signals from 40 input channels, and efficiently output the processed data to the Trusted TMR analog input module, providing timely and accurate data support for subsequent control systems. When facing a large amount of sensor data and complex industrial control requirements, it can complete data reading, processing and forwarding in a very short time, helping operators make correct decisions quickly, optimizing industrial production processes, and improving production efficiency and product quality.
Data Adaptation and Conditioning: It has signal adaptation and conditioning functions for analog signals output by different types of field devices. It can amplify, filter, and perform analog-to-digital conversion on signals, converting the original signals into standard signal formats that meet system requirements, ensuring the accuracy and stability of data during transmission and processing, and reducing signal interference and errors.

Product Tags: T8800 , ROCKWELL
