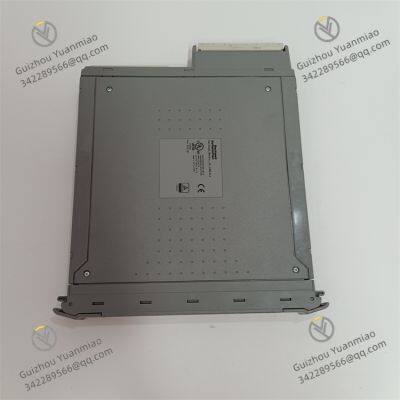

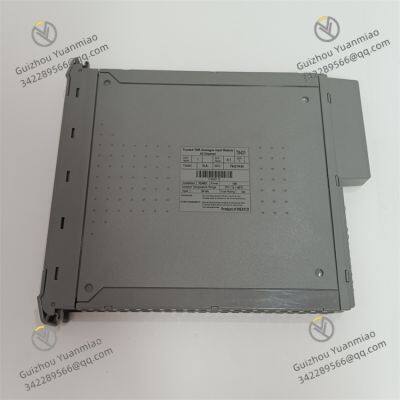

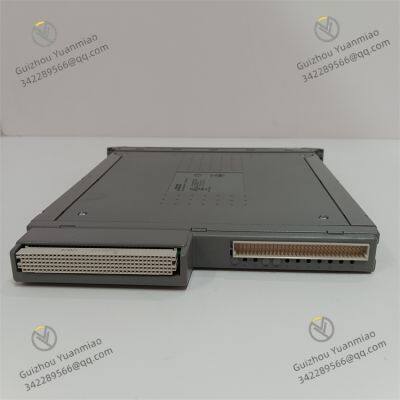

ICS TRIPLEX T8431 Analogue Input Module

ICS TRIPLEX T8431 is an analog input module. In industries such as petrochemicals, electric power, and rail transit that have extremely strict requirements for system reliability and stability, it provides a solid guarantee for data collection and transmission links in the production process with its excellent performance.

•


• Power Supply Parameters: It adopts 24V DC power supply. This common DC power input has wide applicability and stability in industrial environments. At the same time, its power supply design has good anti-interference ability, which can effectively resist the interference of complex electromagnetic environments in industrial sites on the power supply, ensuring that the module can obtain stable and pure power supply under different working conditions and guaranteeing its stable operation.

•


• Input Channel Parameters: The module can support up to 40 analog input channels. The rich number of channels enables it to collect a large number of analog signals from on-site transmitters, sensors and other devices at the same time. Whether it is the monitoring of operating parameters of many devices in large-scale industrial production lines or data collection in multiple links of complex technological processes, T8431 can handle it easily, meeting the signal acquisition needs of industrial projects of different scales.

•


• Input Signal Range Parameters: In terms of voltage input, it can support various common voltage ranges such as ±10V, 0-10V, 0-5V, 1-5V DC; the current input range covers 0-20mA, 4-20mA DC. Such a wide and flexible input signal range configuration enables T8431 to be seamlessly connected with various on-site devices with different output specifications, without the need for additional complex signal conversion devices, which greatly simplifies system design and wiring work, and reduces system construction costs and complexity.

•


• Sampling Accuracy Parameters: The sampling accuracy is between ±0.1% and ±1%. In the field of industrial automation, this accuracy level can meet most application scenarios with high requirements for data collection accuracy. For example, in the chemical production process, for the accurate measurement of key parameters such as temperature, pressure, and flow, T8431 can ensure that the collected data accurately reflect the actual situation on site, providing a reliable basis for subsequent control decisions, and ensuring the precise control of the production process and the stability of product quality.

•


•


•


• Resolution Parameters: It has 16-bit resolution, which means that the module's digital conversion of analog signals is more refined, and can capture more subtle changes in the signal. In the scenario of industrial equipment operation status monitoring, high resolution can more accurately identify small fluctuations in equipment operating parameters, detect potential fault hazards in advance, improve the timeliness and effectiveness of equipment maintenance, and reduce equipment failure rates and maintenance costs.

•


• Isolation Parameters: There is an isolation voltage of 500V DC between the field side and the system side. This isolation design can effectively prevent electrical interference from the field side from being conducted to the system side, protect the control system from external electrical interference, and improve the stability and reliability of system operation. At the same time, its common-mode rejection ratio is greater than 120 dB, which further enhances the module's ability to suppress common-mode interference signals, ensuring that the collection and transmission of analog signals are not interfered in complex electromagnetic environments, and ensuring the accuracy and integrity of data.

•


• Temperature Parameters: The operating temperature range is designed to be -40°C to +70°C, and the storage temperature range is -40°C to +85°C. Such a wide temperature adaptation range enables T8431 to work normally under different climatic conditions around the world and various extreme industrial environments. Whether in cold outdoor industrial facilities in the Arctic region or high-temperature industrial devices operating in hot deserts, this module can run stably, showing strong environmental adaptability and reliability.

•


• Humidity Parameters: The relative humidity can adapt to environmental conditions of 5% to 95% (non-condensing). In industrial production environments, humidity changes are common. The good humidity adaptability of T8431 ensures that in humid production workshops, coastal industrial facilities and other environments with high humidity, the internal circuits of the module will not have faults such as short circuits and corrosion due to humidity issues, ensuring the long-term stable operation of the system.

•


• Physical Parameters: In terms of size, it is approximately 16 cm x 16 cm x 12 cm. The reasonable volume design makes it easy to install and layout in various control cabinets and equipment enclosures without occupying too much space. In terms of weight, the moderate weight takes into account the convenience of installation and transportation, facilitating the operation of on-site construction and maintenance personnel. At the same time, its shell is made of strong and durable materials with good mechanical strength, which can effectively resist physical damage such as collisions and vibrations that may occur in industrial sites, providing reliable protection for internal precision circuits.

•


• Triple Modular Redundancy (TMR) Technology: T8431 adopts advanced TMR technology, equipping each analog input channel with three completely independent analog front-end circuits. During operation, the input signal is sampled synchronously and converted from analog to digital by these three independent front-end circuits respectively. The voting logic unit inside the module will compare and diagnose these three independent digital signals in real-time. When a hardware failure or transient error occurs in one of the front-end circuits or the conversion process, the voting logic unit can quickly identify it, shield the wrong signal, and output the correct signal to the subsequent control system. This design greatly improves the fault tolerance of the system. Even if one or two channels fail, it can still ensure that the analog value provided to the controller is reliable and accurate, effectively avoiding system data collection errors caused by single-point faults, which may lead to production accidents, and strongly ensuring the safety and continuous operation of the control system.

•


• High-Precision Data Acquisition: With its excellent hardware design and advanced algorithms, T8431 can achieve high-precision analog signal acquisition. It can achieve a very high level of accuracy whether capturing weak signals or accurately measuring strong signals. In practical industrial applications, such as the accurate monitoring of voltage and current in power systems, and the precise control of temperature and pressure in reactors in the chemical industry, high-precision data acquisition provides basic data support for the refined management of the production process, helping enterprises improve production efficiency, reduce energy consumption, enhance product quality, and strengthen their competitiveness in the market.

•


• Self-Diagnosis and Fault Isolation: The module has comprehensive and powerful automatic diagnosis and self-test functions. During operation, it continuously monitors its own hardware status, signal acquisition process, data transmission links, etc. in real-time. Once any potential fault is detected, such as aging of front-end circuit components in a certain channel, open or short circuit of signal transmission lines, abnormality of analog-to-digital conversion chips, etc., it can immediately issue an alarm, and through the built-in timestamp fault recorder, record in detail the time, type, specific location and related parameters of the fault. At the same time, the module can quickly isolate the fault to prevent the fault from spreading and affecting the operation of other normal channels, ensuring that the entire system can still maintain basic functions in the case of partial faults, providing accurate basis for operation and maintenance personnel to quickly locate and solve faults, effectively shortening equipment downtime, and improving the overall availability of equipment.

•


• Flexible Input Range Configuration: As mentioned earlier, T8431 supports a variety of voltage and current input signals with different ranges. This flexible configuration feature enables it to be directly connected to various common on-site transmitters, sensors and other devices on the market without additional signal conditioning or conversion. In the implementation of practical industrial projects, enterprises may select sensors of different specifications according to the needs of different production links. The strong compatibility and flexible input configuration of T8431 greatly simplify system integration work, reduce system construction and maintenance costs, and improve system deployment efficiency.

•


•


•


• Hot-Swappable Function: It supports hot-swappable operation, that is, the module can be plugged and replaced without shutting down the system. This function is of great significance in industrial production. When the module fails and needs to be replaced, operation and maintenance personnel do not need to shut down the entire control system. They only need to pull out the faulty module and insert a new spare module in the live state according to the standard operating procedures. The system can automatically identify and reconfigure the new module to resume normal operation. The hot-swappable function effectively avoids production interruption caused by system shutdown for equipment maintenance, reduces economic losses of enterprises, and improves the continuity and stability of production.

•


• Real-Time Sequence of Events (SOE) Recording: It has an on-board SOE function with a resolution of up to 1 ms. When the state of the on-site signal changes, the module can record the sequence of events with extremely high time precision and transmit this information to the control system in a timely manner. In industrial automation systems, accurate time recording of some key events is crucial, such as fault tripping events in power systems, emergency shutdown events in chemical production, etc. The SOE function of T8431 provides enterprises with accurate time clues for analyzing system operation status and troubleshooting causes, helping to quickly locate the root cause of problems, formulate effective solutions, and improve enterprises' ability to control the production process.

•


• Good Electromagnetic Compatibility (EMC): In industrial environments, electromagnetic interference is ubiquitous. T8431 has fully considered electromagnetic compatibility issues in the design and manufacturing process. Through various measures such as optimizing circuit layout, adopting shielding technology, and adding filter circuits, it has good anti-electromagnetic interference ability. It can stably collect and transmit analog signals in strong electromagnetic interference environments, such as near large motors, frequency converters, electric welders and other equipment, without being affected by external electromagnetic interference, ensuring the accuracy and reliability of data, and guaranteeing the normal operation of the control system in complex electromagnetic environments.
