Home > Electrical & Electronics > Electrical Control System > Yokogawa YS1700-000/A34 Programmable Indicating Controller

Yokogawa YS1700-000/A34 Programmable Indicating Controller

Yokogawa YS1700-000/A34 Programmable Indicating Controller thumbnail-3

Yokogawa YS1700-000/A34 Programmable Indicating Controller thumbnail-4

Yokogawa YS1700-000/A34 Programmable Indicating Controller photo-1

Yokogawa YS1700-000/A34 Programmable Indicating Controller photo-2

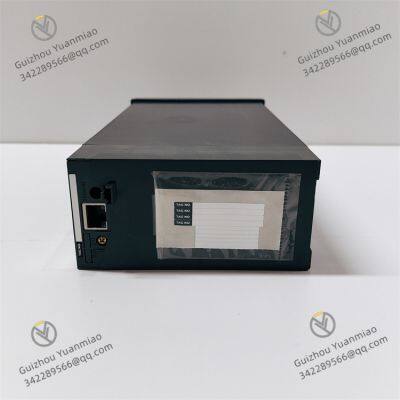

Yokogawa YS1700-000/A34 Programmable Indicating Controller photo-3

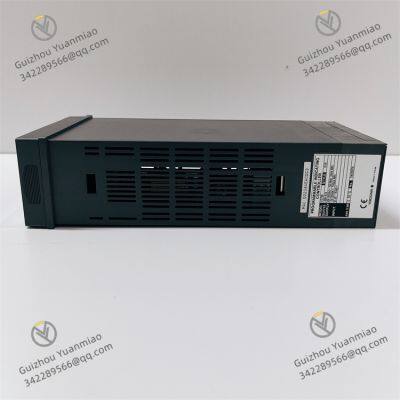

Yokogawa YS1700-000/A34 Programmable Indicating Controller photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Voltage input accuracy ±0.2%±0.1%

Voltage output accuracy ±0.3%±0.1%

Current output accuracy ±1.0%±0.2%

Yokogawa YS1700-000/A34

Functional Features

Anti-Interference and Reliability
Strong anti-interference capability and high reliability ensure stable operation in industrial environments.
Programming and Calculation
Supports YS1700 custom programming and parameter settings for all YS1000 models. It enables calculations using engineering units and floating-point mathematics, includes over 100 operation modules such as exponential, logarithmic, temperature/pressure correction, etc., and allows saving and reusing function blocks.
Password Protection
Assigns passwords to user programs to prevent unauthorized access, and the host password prevents accidental modification of engineering parameters.
Rich Control Functions
Can run 2 PID control operations simultaneously, with multiple control types including basic PID control and proportional control, as well as various control functions such as setpoint filters and self-tuning.
Communication Capability
Supports communication methods like Modbus/TCP and RS-485, enables convenient connection to devices such as DAQWORX via Ethernet, and achieves interconnection of up to 32 YS1700 units through point-to-point communication.
Convenient Installation and Maintenance
Adopts a modular structure, featuring small size, light weight, simple installation, and easy maintenance. The front panel complies with IP54 dustproof and drip-proof standards, enhancing adaptability to harsh environments.

Technical Parameters

Power Supply
Supports 100V AC and 24V DC. DC power supply has no polarity requirement (220V power supply needs to be specified when ordering).
Input/Output

Analog input: 1-5V DC (5 channels or 8 channels with extended I/O).
Analog output: 4-20mA (1 or 2 channels) or 1-5V DC (2 channels or 3 channels with extended I/O).
Digital signals: 6 channels (each channel can serve as both input and output simultaneously).
Total I/O points: Including the instrument body and extended I/O, 8 analog inputs, 4 analog outputs, and 14 DI/DO points.

Accuracy

Voltage input accuracy: ±0.2%±0.1%.
Voltage output accuracy: ±0.3%±0.1%.
Current output accuracy: ±1.0%±0.2%.

Resolution

Internal data resolution for I/O signals: 1/1000 or 1/10000.
Internal operation resolution for PID and other calculations: 1/4096 or 1/65536.

Program Capacity
400 modules (function blocks), 1000 lines (text).

Working Principle

The YS1700-000/A34 uses a programmable memory to store instructions for executing logical operations, sequence control, timing, counting, arithmetic operations, etc. It receives signals from external sensors and other devices through digital or analog inputs, processes them via internal calculations, and outputs control signals to actuators, thereby achieving control over industrial processes.

Common Faults and Solutions

Communication Failure

Possible causes: Incorrect communication parameter settings, damaged communication cable, or interface failure.
Solutions: Check if communication parameters match the connected device, replace the communication cable, and inspect the interface for looseness or damage.

Control Abnormality

Possible causes: Unreasonable PID parameter settings, abnormal input signals, or internal operation module failure when control output is inaccurate or control fails.
Solutions: Readjust PID parameters, verify that input signals are within the normal range, refer to the manual to determine if operation modules are faulty, and contact professionals for maintenance if necessary.

Display Issues

Possible causes: Power failure, damaged display, or connection problems in case of no display or abnormal display.
Solutions: First check the power supply, then inspect the display connection. Replace the display if it is damaged.

Module Overheating

Possible causes: Poor ventilation in the installation environment or long-term high-load operation.
Solutions: Install the module in a well-ventilated location, avoid obstructions around it, and consider reducing the load or enhancing heat dissipation measures for long-term high-load operation.

Product Tags: YS1700-000/A34 , ATK4A-00 , SC42-SP34
