Yokogawa PW501
Overview
The PW501 power supply module is suitable for both small-scale and large-scale factories. It inherits the inherent high reliability of the CENTUM system and relies on the latest information technology.
Functional Features
  • Diversified Control Functions
    It can collaborate with DCS systems to implement various operational control algorithms, such as arithmetic operations, logical operations, feedforward, PID control, adaptive control, dead-time compensation, etc., as well as sequence control, interlock protection, and alarm functions.
  • High Reliability
    The DCS system features automatic fault detection diagnostics and restart functions. Additionally, I/O modules and intelligent devices can operate independently, limiting the impact of faults. Measures such as component redundancy effectively ensure the long-term safe and stable operation of production processes.
  • Easy Assembly and Maintenance
    The hardware is designed with standardization, modularization, and serialization. Modules have single functions, facilitating assembly, maintenance, and replacement.

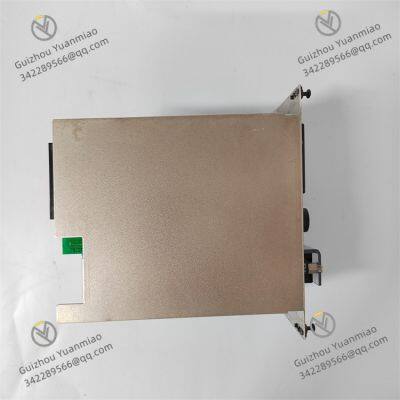

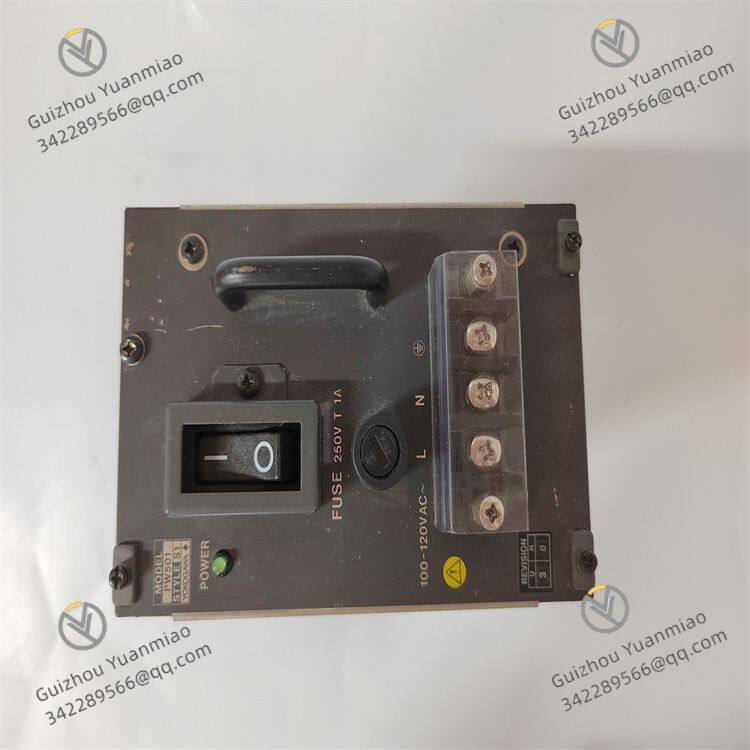

PW501(6)

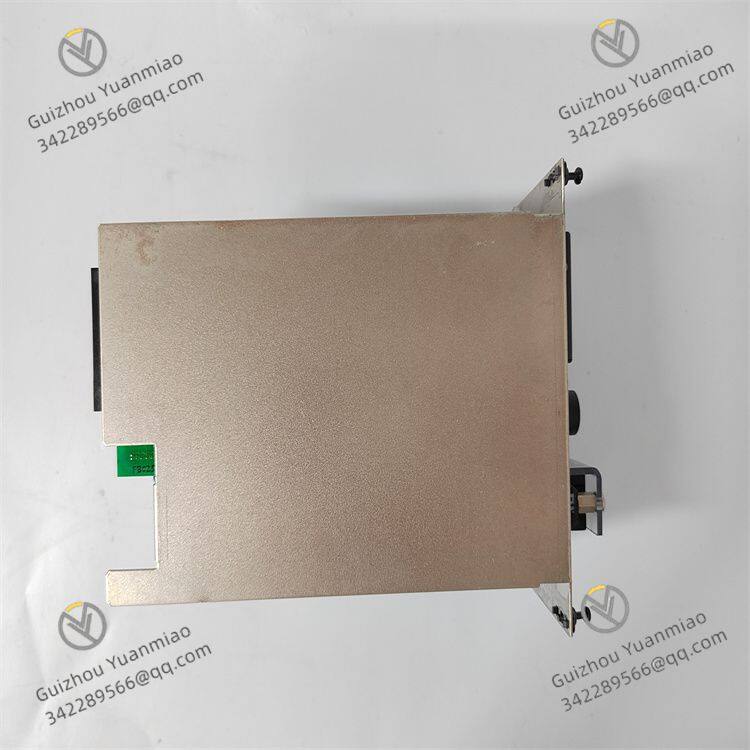

PW501(5)

PW501 (2)

Working Principle
The PW501 power supply module converts external input power into stable voltage and current suitable for the internal components of electronic devices (such as application-specific integrated circuits, digital signal processors, microprocessors, etc.), providing power supply to ensure normal equipment operation. Through internal circuit structures like transformers, rectifier circuits, filter circuits, and voltage regulator circuits, it processes the input power via transformation, rectification, filtering, and voltage stabilization to output the required DC power.
Common Faults and Solutions
  • Difficult Startup

    • Possible causes: Excessive external capacitance, capacitive load or excessive output load, insufficient input power, etc.

    • Solutions: Adjust the capacitance of the output and load, select appropriate capacitive loads, series inductors to reduce capacitive loads, or replace with a more powerful input power supply.

  • Overheating Issues

    • Possible causes: Use of linear power modules, excessive or insufficient load current (load power below 10% of the module's output power), high ambient temperature, or poor heat dissipation.

    • Solutions: Add heat sinks, adjust the load to be no less than 10% of the rated load, and reduce ambient temperature while improving heat dissipation conditions.

  • Module Damage

    • Possible causes: Too light output load, excessive output capacitance, or prolonged high input voltage.

    • Preventive measures: Ensure the output load is no less than 10% of the rated load, select capacitors that meet specifications, and use appropriate input voltage.
