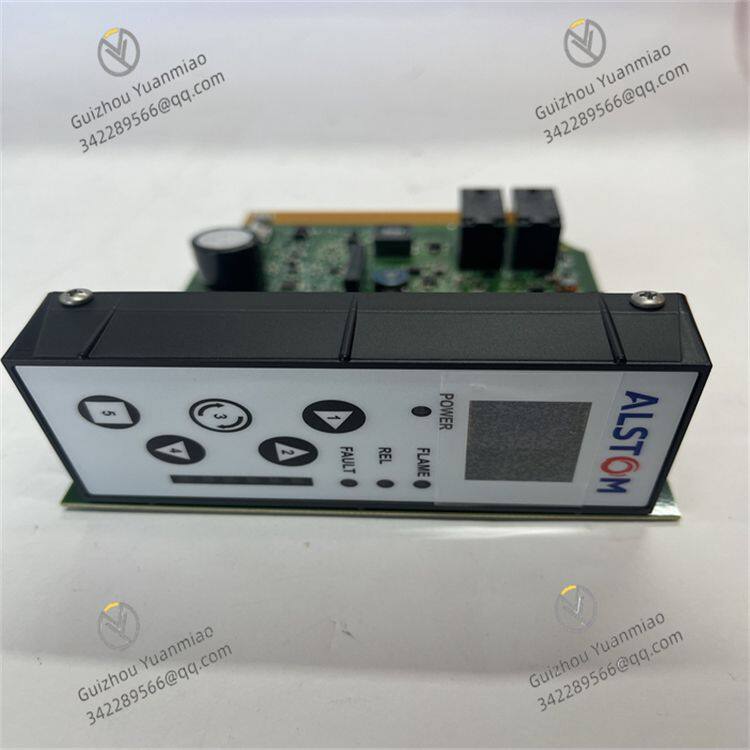

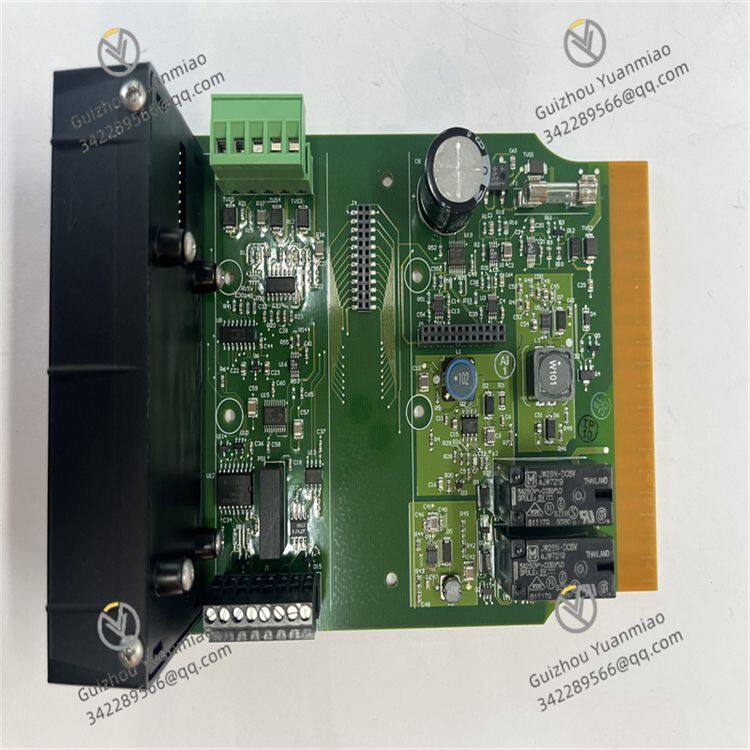

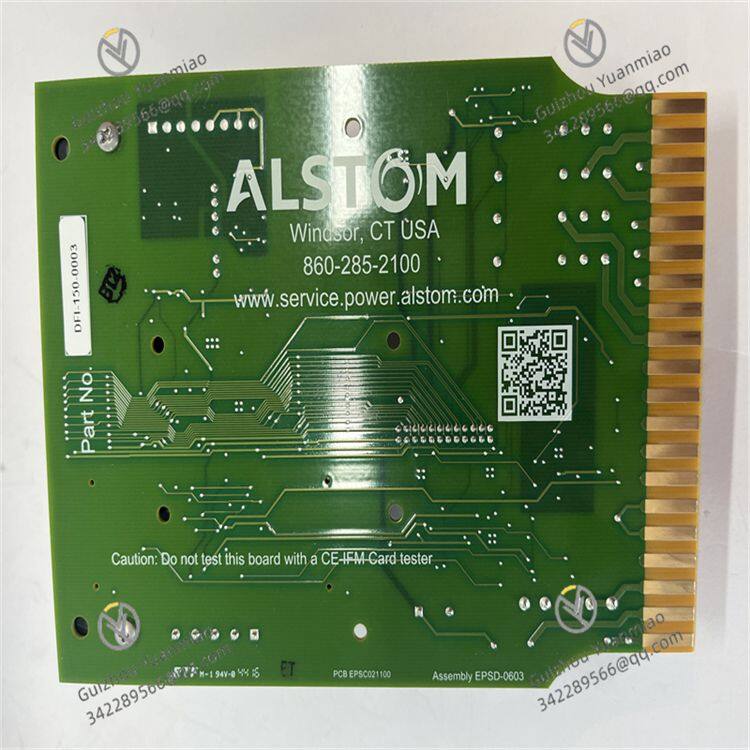

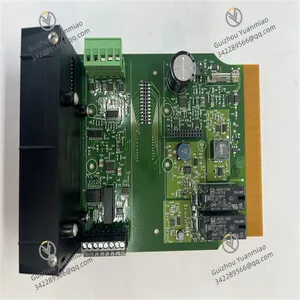

ALSTOM DFI-150-0003 Flame Detector Circuit Board

ALSTOM DFI-150-0003 Flame Detector Circuit Board thumbnail-3

ALSTOM DFI-150-0003 Flame Detector Circuit Board photo-1

ALSTOM DFI-150-0003 Flame Detector Circuit Board photo-2

ALSTOM DFI-150-0003 Flame Detector Circuit Board photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40°C to +85°C

Isolation Voltage 2500Vrms

Dynamic Current ≤25mA

ALSTOM DFI-150-0003

Overview

This circuit board is mainly used for flame detection and safety monitoring in industrial processes such as welding and cutting, serving as a key component of the flame detection system. It provides reliable feedback information to the control system through diagnosing and analyzing flame signals, ensuring the safety and stability of the production process.

Functional Features

Flame Detection and Diagnosis: Capable of detecting the presence of flames and monitoring parameters such as flame intensity and stability, providing precise flame status information for the combustion process.
Fault Diagnosis and Alarm: Equipped with self-diagnosis function, it monitors its own operating status and can quickly issue alarms when detecting faults or abnormal conditions in the flame detection system.
Industrial-Grade Design: Features high reliability, durability, and anti-interference capability, adapting to harsh industrial environments to ensure long-term stable operation.
Digital Reading Function: Intuitively displays the flame status through a digital display, facilitating maintenance and monitoring for users.
Customization Capability: Can be custom-designed according to specific customer needs to meet requirements of different application scenarios.

Technical Parameters

Operating Voltage: Typically 24V DC.
Rated Current: 15A.
Frequency: 50/60Hz.
Protection Level: IP66.
Operating Temperature Range: -40°C to +85°C.
Input Signal Types: Supports infrared, ultraviolet, ion current, visible light, and multi-band flame signal inputs.
Output Signal Types: Multiple switching value outputs and analog outputs, supporting RS485 communication port.
Isolation Voltage: 2500Vrms.
Overvoltage Protection: ±30V.
Static Current: ≤5mA.
Dynamic Current: ≤25mA.
Response Time: Less than 1 second.
Dimensions: Approximately 172mm x 95mm x 142mm.

Working PrincipleFlame Signal Acquisition

The circuit board supports multi-band inputs such as infrared, ultraviolet, and ion current. By connecting corresponding flame sensors, it can real-time acquire signals like infrared and ultraviolet generated by flames or detect ion current in flames to sense the presence of flames.

Signal Processing and Analysis

The internal circuit of the board processes the collected signals, including operations such as amplification and filtering, to enhance useful signals and remove interference. Then, the processed signals are compared with preset thresholds to determine whether the flame is normal. For example, if the detected ultraviolet signal intensity exceeds a set value, the flame is considered to be in a normal combustion state; if the signal intensity is too low, it may indicate flame weakening or extinction.

Status Judgment and Output

Based on the signal analysis results, the board determines the flame status. If the flame is normal, it maintains a normal output state; if abnormal flame conditions such as extinction or instability are detected, it sends corresponding signals through multiple switching value and analog output ports, and may transmit fault information to the upper control system via the RS485 communication port to achieve alarms or trigger relevant protection measures, ensuring the safety and stability of the combustion process.

Fault Diagnosis Function

In addition to flame detection, the circuit board also has fault diagnosis capability. It monitors its own working status and can automatically identify and issue alarm signals when internal circuit failures occur, such as component damage or power supply anomalies, facilitating maintenance personnel to troubleshoot and repair problems in a timely manner.

Common Faults and Solutions

False Alarm: May be caused by improper sensor sensitivity settings or external interference. Readjust the sensor sensitivity parameters, check whether the sensor installation position is appropriate, and whether there are strong electromagnetic interference sources. Take shielding measures if necessary.
No Flame Signal Output: May be due to sensor failure, open circuit of connection lines, or damage to the board's input channel. Check whether the sensor is working normally, measure whether the connection lines are conducting. If the lines and sensor are normal, further detect the input channel of the board. If damaged, replace the board or repair relevant components in a timely manner.
No Display on Screen: May be caused by display failure, abnormal power supply, or faults in the internal circuit of the board. First, check whether the power supply of the board is normal. If the power supply is normal, it may be that the display itself is damaged or the circuit connected to the display has problems. Try replacing the display or checking the connection and components of the relevant circuit.

Product Tags: DFI-150-0003 , ALSTOM
