YS-227Y Medical Protective Clothing Synthetic Blood Penetration Tester (4-Station)

【Scope of Application】:
Performs high-pressure penetration testing on products.

【Compliant Standards】:

1. GB 19083-2010 Technical requirements for medical protective masks

2. YY 0469-2011 Surgical masks

3. YY/T 0691-2008 Test method for resistance of medical face masks to penetration by synthetic blood (fixed volume, horizontal projection)

4. ISO 22509-2004; F1862/F1862M-2013

5. ASTM F1671 Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Blood-Borne Pathogens Using Phi-X174 Bacteriophage Penetration as a Test System

6. ASTM F1670 Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Synthetic Blood

7. ASTM F903 Standard Test Method for Resistance of Protective Clothing Materials to Penetration by Liquids

8. ISO 16603-2004 Clothing for protection against contact with blood and body fluids — Determination of the resistance of protective clothing materials to penetration by blood and body fluids — Test method using synthetic blood

9. ISO 16604-2004 Clothing for protection against contact with blood and body fluids — Determination of resistance of protective clothing materials to penetration by blood-borne pathogens — Test method using Phi-X 174 bacteriophage

10. YY/T 0699-2008 Test method for resistance of protective clothing materials to penetration by liquid chemicals under pressure

11. YY/T 0689-2008 Test method for resistance of protective clothing materials to penetration by blood-borne pathogens using Phi-X174 bacteriophage

12. YY/T 0700-2008 Test method for resistance of protective clothing materials to penetration by synthetic blood

13. GB/T 19082-2009 Technical requirements for medical disposable protective clothing

【Instrument Features】:

1. Silent air pump.

2. Positive pressure sensor for real-time monitoring.

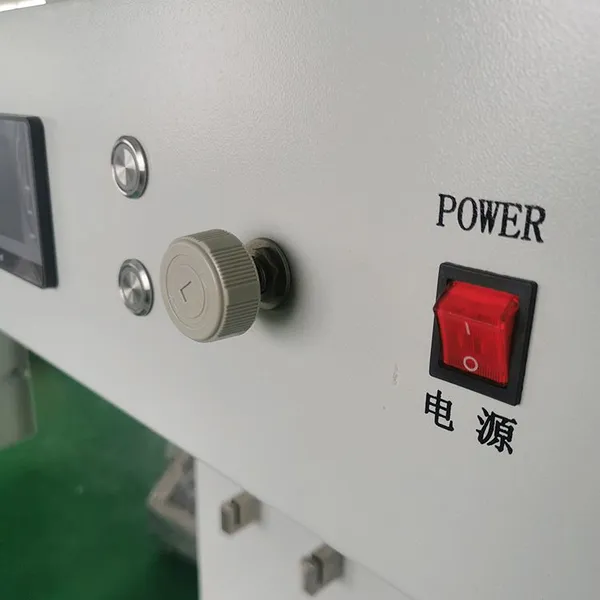

3. Precision pressure regulating valve for stepless adjustment.

4. Adjustable spray time; automated operation.

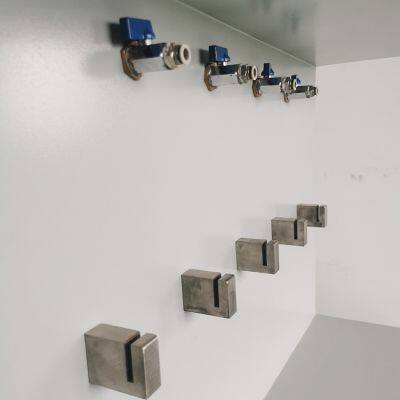

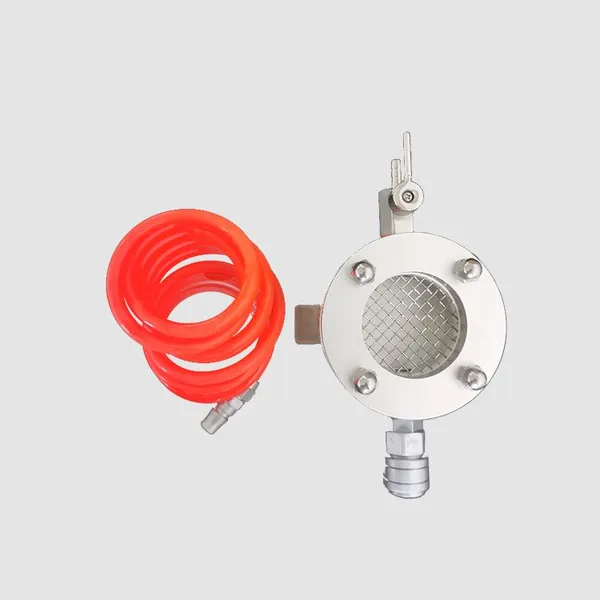

5. Clamping device for easy sample handling.

【Technical Parameters】:

1.Blood volume: 2ml/60mL test

2.Control: Manual/button

3.Pressure: Adjustable 16kPa/2psi (accuracy 0.1kPa)

4.Test pressure: 0-16kPa (2psi)

5.Micromanometer range: 0-0.1kPa

6.Pressure resolution: 0.1kPa

7.Timing accuracy: 0.1s

8.Test medium: Synthetic blood (customer-provided)

9.Control: Manual/button

10.Blood volume: 2ml/60ml

【Test Procedure】:
Secure sample on fixture. Spray 2ml/60ml synthetic blood (surface tension 0.042±0.002N/m) horizontally from 30.5cm distance using a 0.84mm ID needle at 16kPa/2psi pressure onto target area. Remove and visually inspect within 10s/60s.
