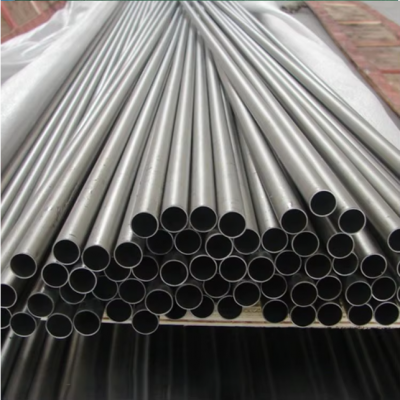

Titanium Pipe Seamless Tube
Titanium pipe and Titanium tube
Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length: Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:Material: Gr1,Gr2,Gr3,Gr5,Gr9
| Name | Size(MM) | Grade |
| Seamless Tubes | OD(3~114)×(0.2~6.0)×L | Gr1,Gr2,Gr3,Gr4,Gr5, Gr7,Gr11,Gr23etc |
| Welded Tubes | OD (10~40)×(0.5~5.0)×L | |
| Extruded Tubes | OD (25~210)×(6.0~30)×L |
Titanium Seamless Tube
Specifications
| Product | ATitanium Pipe seamless pipe |
| Size |
Cold-rolled: OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59")factory price 1.5mm 1.6mm 40mm titanium seamless pipe tube Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7") |
| Material | Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc. |
| Standard | ASTM B 338, ASTM B 337, ASTM B 861 |
| Shape | Round |
Specific dimension for cold-rilled tubes & pipes:
| OD(mm) | 8.0-10.0 | 10.0-15.0 | 15.0-20.0 | 20.0-25.0 | 25.0-30.0 | 30.0-35.0 |
| WT(mm) | 0.15-2.0 | 0.2-2.0 | 0.4-2.7 | 0.45-3.2 | 0.45-3.3 | 0.45-3.4 |
| OD(mm) | 35.0-40.0 | 41.0-45.0 | 46.0-50.0 | 51.0-55.0 | 56.0-60.0 | 61.0-65.0 |
| WT(mm) | 0.5-3.5 | 0.6-3.8 | 0.6-3.8 | 0.6-4.4 | 0.8-4.6 | 0.9-4.7 |
| OD(mm) | 66.0-70.0> | 71.0-75.0> | 76.0-95.0 | 96.0-114.0 | ||
| WT(mm) | 1.0-4.9 | 1.2-6.0> | 1.2-7.1 | 1.3-7.5 |
Related Products
company profile
Zhejiang Zhongzheng Stainless Steel Manufacturing Co., Ltd. specializes in manufacturing stainless steel seamless pipes. Its business scope includes pipes ranging from 6mm to 325mm, with materials such as 304, 321, 316L, and 2205. The stainless steel products are applied in industries such as petroleum, chemical engineering, chemical fibers, smelting, pharmaceutical machinery, papermaking, insulation and refrigeration, mechanical equipment, food, power, water conservancy, construction, underwater engineering, navigation and shipbuilding, environmental protection, etc. Zhongzheng Stainless Steel Manufacturing Co., Ltd. is a powerful company with strong credibility, adhering to contracts, ensuring product quality, and adopting the principle of diversified product range and low prices for high sales volume to win the trust of numerous customers. All employees of the company sincerely welcome your calls for inquiries!
Q:How to gurantee the quality? A:We have advanced production equipment such as isostatic press machine, medium frequency sintered furnace. And we also have many professional inspection equipment, such as chemical analysis machine, physical performence machine metallo scope, browett hardness tester. With these these equipments, we could gurantee the quality very well. Q: What’s the quality control in your company? A: We have ISO 9001:2015 certificate, we must inspect our production strictly by our QC before shipping. Q:How you guarantee the quality of tungsten products? A:We have professional QC team and inspection equipment, Atomic Absorption, Apectrometer(AAS), Electronic Precision Balance, Scanning, Electron Microscope(SEM) Q: How to guarantee the quality of tungsten copper alloy products? A:Our tungsten-copper alloy products conform to national standards GB/T8320-2017 and ASTM B702, We can provide the product quality inspection certificate, including chemical composition, density, hardness, conductivity and so on. Of course, our factory also does ultrasonic flaw detection to ensure product quality. Q:How do you guarantee the quality of your products? A:We have advanced production and inspection equipment and first-class technical production personnel, in addition, we also have strict inspection means to control our production quality. Q:Can you make the product with my design? A: Yes, we can,we supply customized service.You can send us all the details of what you need,then we will provide detailed quotation.
