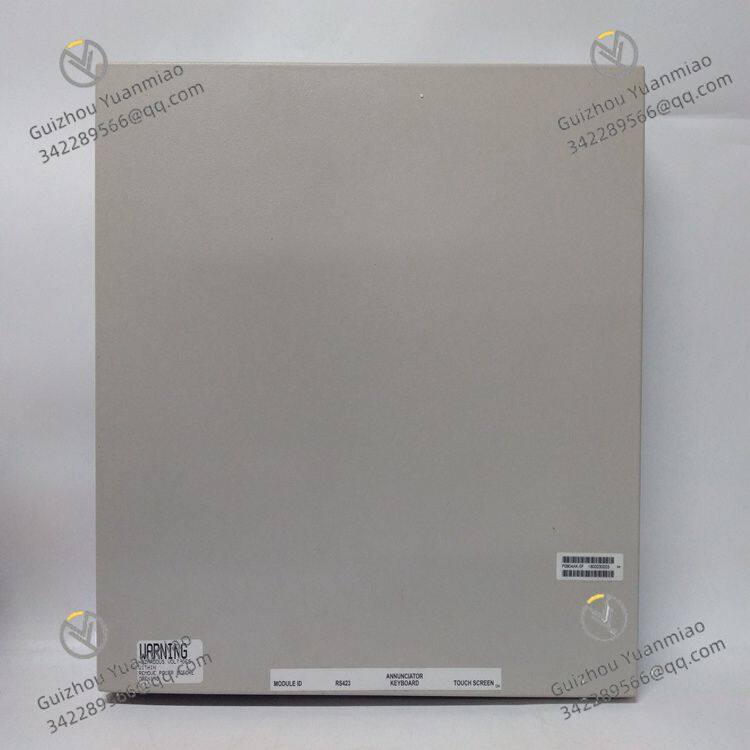

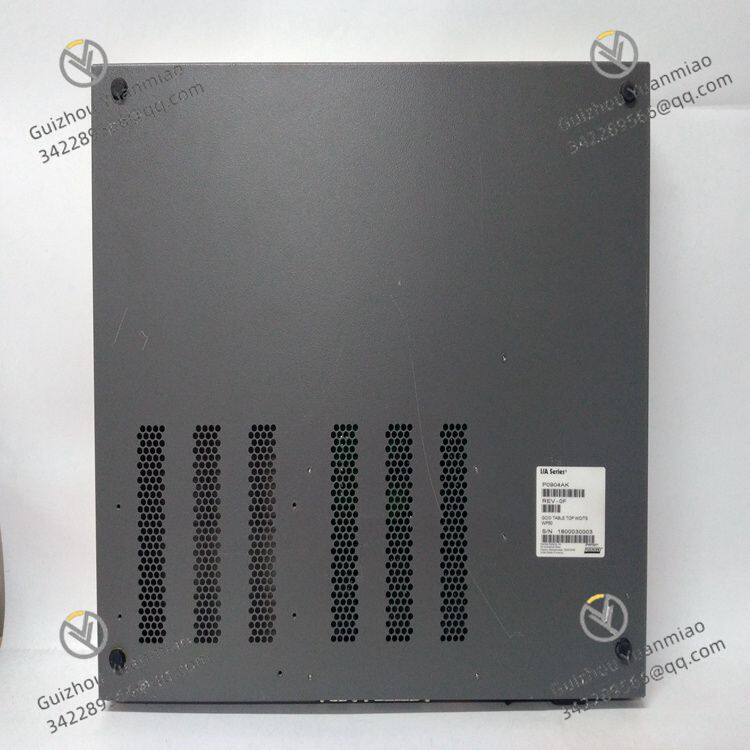

Foxboro P0904AK GCIO Tabletop Module

RAM temporarily stores running control programs, real-time data (e.g., temperature and pressure values collected by sensors), and intermediate calculation results.

ROM stores firmware, including boot programs, basic input/output systems (BIOS), and underlying drivers, ensuring the module initializes hardware normally after startup.

Processor Module: Equipped with a high-performance microprocessor (e.g., RISC architecture chip) as the computing core, responsible for executing control algorithms, logical operations, and data processing tasks. The processor communicates with components like memory and I/O interfaces via high-speed buses to ensure real-time response to signal changes in industrial fields.

Memory System: Includes random-access memory (RAM) and read-only memory (ROM).

Analog Input (AI): Receives 4–20mA current signals or 0–10V voltage signals from field sensors (e.g., pressure transmitters, temperature sensors), converting analog signals to digital values via an analog-to-digital converter (ADC) for processor processing. For example, after an ADC converts the current signal from a temperature sensor to a digital value, the processor calculates the actual temperature.

Analog Output (AO): The processor generates digital control signals based on control algorithms, converting them to 4–20mA or 0–10V analog signals via a digital-to-analog converter (DAC) to drive actuators (e.g., control valves, variable frequency drives) and adjust process parameters.

Digital Input/Output (DI/DO): Processes switch signals (e.g., button status, motor start/stop signals). The DI interface reads the on/off status of field devices, while the DO interface outputs switch signals to control relays, indicator lights, etc.

Ethernet Interface: Supports industrial communication protocols like Modbus TCP/IP and EtherNet/IP to communicate with host computers (operation stations, engineer stations) or other controllers, uploading field data and receiving control commands. For example, transmitting real-time process data to monitoring software for operator viewing.

Serial Communication Interfaces (e.g., RS-485/RS-232): Connect to third-party devices (e.g., intelligent instruments, PLCs) for data interaction and protocol conversion.

Fieldbus Interface: May support dedicated buses like FOXBUS to connect with distributed I/O modules (e.g., P0914XX series) and expand system I/O capacity.

Runs a dedicated RTOS (e.g., VRTX or a customized system) to ensure real-time scheduling of control tasks (e.g., data collection, algorithm operation, communication) by priority. For example, sensor data collection tasks have higher priority than fault alarm information uploads to ensure control real-time performance.

Adopts a periodic scanning mechanism: executes the "data collection → control calculation → output update" process cyclically at fixed intervals (e.g., 100ms, 1s) to ensure continuous monitoring of industrial processes.

Basic Control Functions: Supports industrial common algorithms such as PID (Proportional-Integral-Derivative) control, logical control (e.g., ladder diagram, sequential function chart), and batch control. For example, in a temperature control scenario, the processor calculates output signals via the PID algorithm based on the deviation between the set value and actual temperature to adjust the power of heating equipment.

Advanced Control Functions: Implements complex strategies like feedforward control, cascade control, and adaptive control to handle nonlinear and large-lag industrial processes (e.g., temperature control of chemical reactors).

Algorithm Configuration and Download: Engineers write control logic through Foxboro I/A series configuration software (e.g., IA Architect), compile it, and download it to the memory of P0904AK for real-time execution by the processor.

Data Filtering and Calibration: Performs digital filtering (e.g., moving average filtering) on collected sensor data to eliminate noise interference; calibrates the output of nonlinear sensors (e.g., thermocouples) via linearization algorithms to improve measurement accuracy.

Historical Data Storage: Built-in non-volatile memory (e.g., Flash) stores historical records of key process parameters (e.g., trend data, alarm events) for fault analysis and process optimization.

Built-in hardware monitoring circuits real-time detect processor temperature, power voltage, memory status, etc., and issue alarms via indicator lights (e.g., LED) or communication interfaces when anomalies are found. For example, when a memory parity error occurs, the module triggers an alarm and attempts to switch to a backup memory area.

At the software level, a "Watchdog" timer monitors program operation status. If the program freezes or malfunctions, the timer forces the module to restart after timeout to ensure system reliability.

In critical scenarios, P0904AK can be configured as a redundant pair (master/standby mode), with two modules running control programs synchronously. When the master module fails, the standby module automatically takes over control tasks, ensuring control logic continuity during switching via hardware synchronization mechanisms (e.g., high-speed synchronization buses).
