Electric Cable Conveyor Belt Laying Machine Construction Site Cable Conveying Equipment Power Cable Conveyer
US$ 1750 - 1800
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Cable Pusher
Certification:
CE, ISO
Feature:
Moistureproof, Insulation
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/shanghai/qingdao/shenzhen/shanghai
Delivery Detail:
3 days
Related Products
-
Automatic Crawler Type Stepless Speed Wireless Remote Control Cable Traction Machine Bridge Laying MachineUS$ 2400 - 2450MOQ: 1 Unit -
Electric Power Cable Conveyor Laying Equipment for Cable Transfer Pulling Machine Crawler Cable ConveyorUS$ 1000 - 1050MOQ: 1 Unit
-
Power Cable Conveyer Intelligent Remote Control Cable Conveying Equipment Cable Laying MachineUS$ 2300 - 2350MOQ: 1 Unit
-
Underground Cable Hauling Wire and Cable Conveyor Crawler Cable Tractor MachineUS$ 1760 - 1800MOQ: 1 Unit
-
Cable Pusher Tank 900 All-Terrain Cable Puller for Slope and Mountainous TerrainUS$ 4100 - 4200MOQ: 1 Set
Type
Other, Cable Pusher
Certification
CE, ISO
Feature
Moistureproof, Insulation
Condition
New
Customized
Customized
Color
blue
Push-pull force
8000N
Weight
243kg
Transport Package
Wooden crate packaging
Specification
1154mm*580mm*530mm
Trademark
Changyun Technology
Origin
China

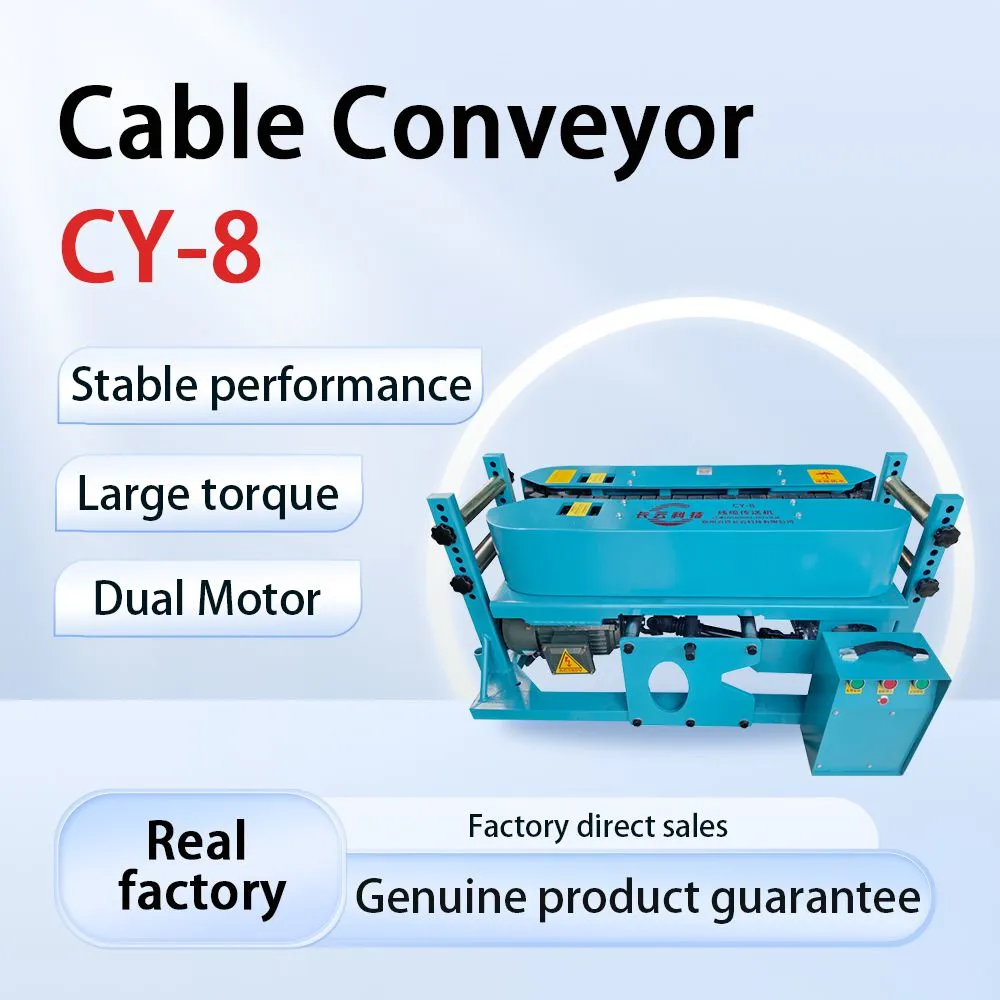

The CY - 8 Conveyor Cable Blower is a high - performance piece of equipment specially designed for power construction projects. It is an essential tool for efficiently transporting cables during the construction process.
-

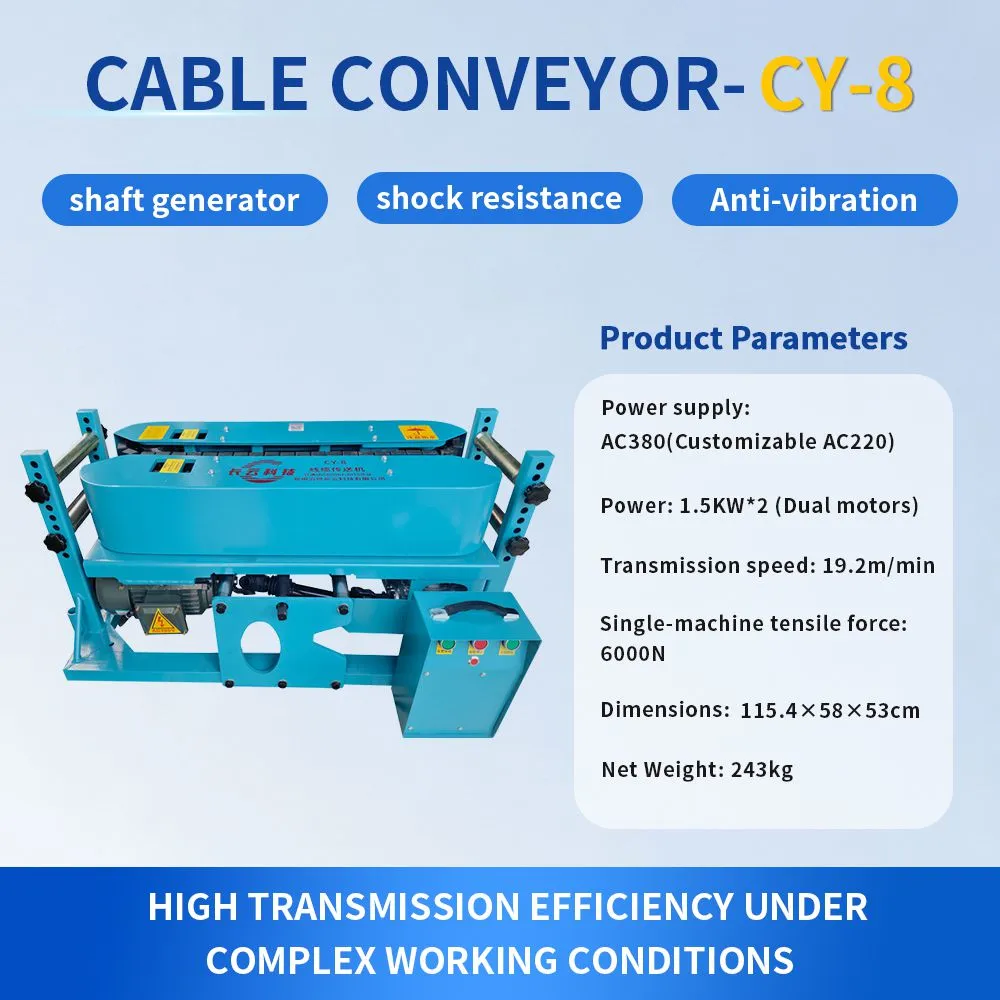

Model: CY - 8 -
Power Supply: Standard AC380V, with AC220V available for customization to meet different on - site power requirements. -
Speed Regulation: Fixed - speed operation ensures stable cable - conveying speed. -
Control Mode: Equipped with switch control, along with standard forward - reverse - stop functions and button control for easy and convenient operation. -
Power: 1500W x 2, providing strong power support for cable conveying. -
Conveying Speed: Up to 19.2m/min, which greatly improves construction efficiency. -
Maximum Pulling Force: With a powerful double pure - copper core motor, it can generate a maximum pulling force of 6000N, capable of handling various cable - laying tasks. -
Cable Diameter Range: Suitable for cables with a diameter from 2cm to 24cm, covering a wide range of cable types used in power construction. -
Overall Dimensions: 115.4X58X53cm, compact in size for easy transportation and on - site placement. -
Net Weight: 243kg, ensuring stability during operation.
-

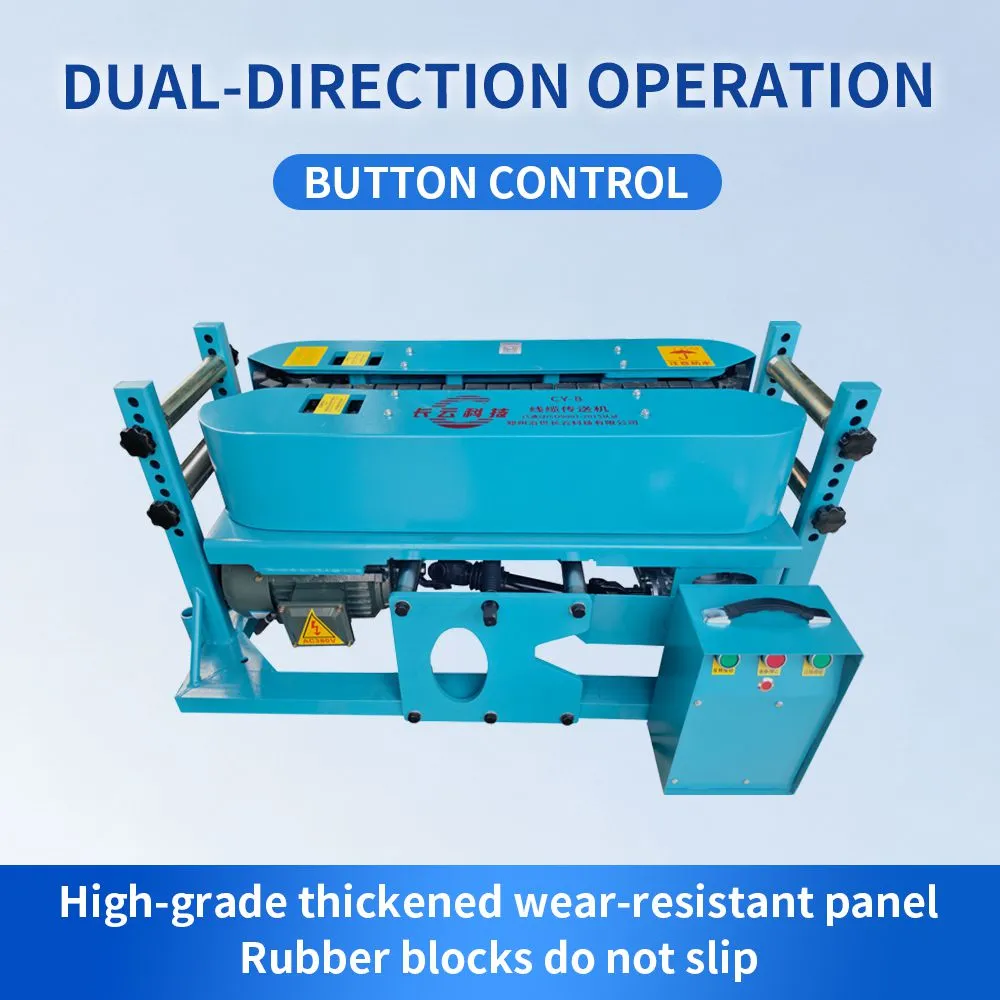

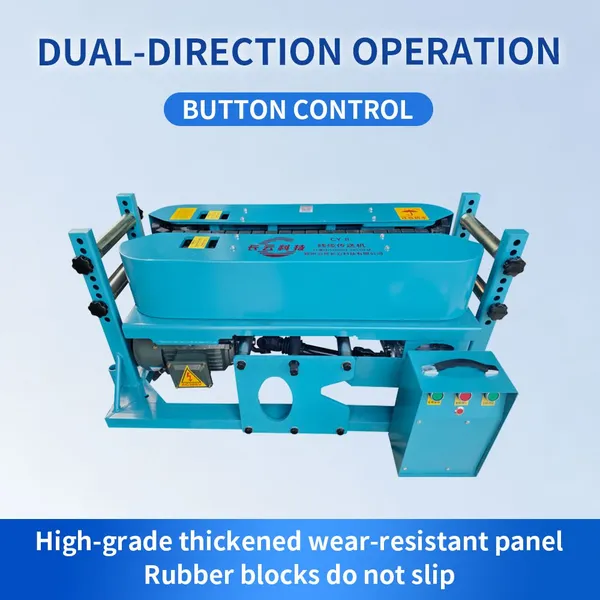

Powerful Performance: The use of a double pure - copper core motor not only provides high pulling force but also ensures fast - speed and stable operation with low noise, reducing noise pollution at the construction site. -
Durable and Reliable: Adopts high - quality wear - resistant rubber blocks, which are thickened for enhanced wear resistance and anti - slip performance, extending the service life of the equipment. The shaft drive system is resistant to impact and vibration, with high transmission efficiency, ensuring reliable operation even in harsh construction environments. -
Easy Operation: The simple control mode, including switch control and button control, makes it easy for operators to master, reducing the learning curve and improving work efficiency.
