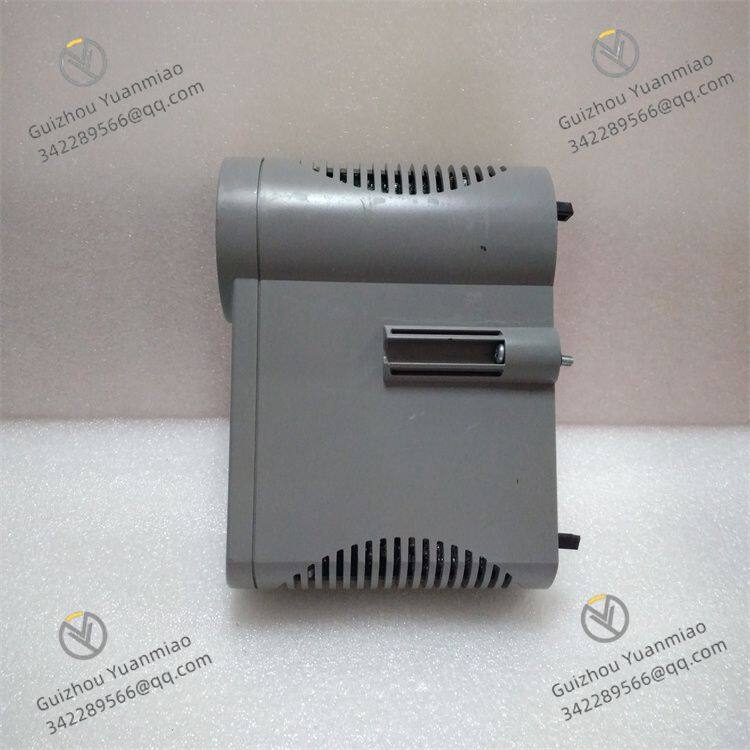

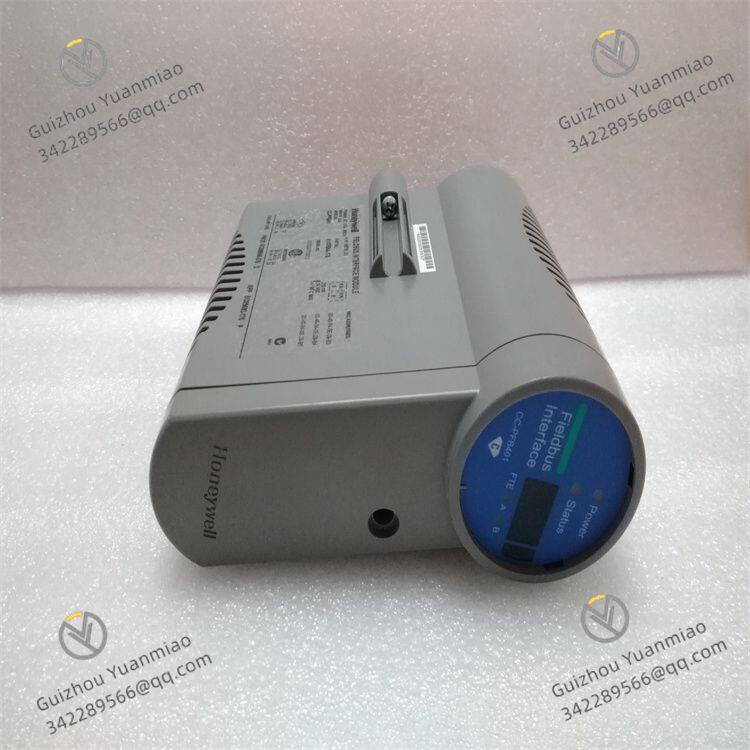

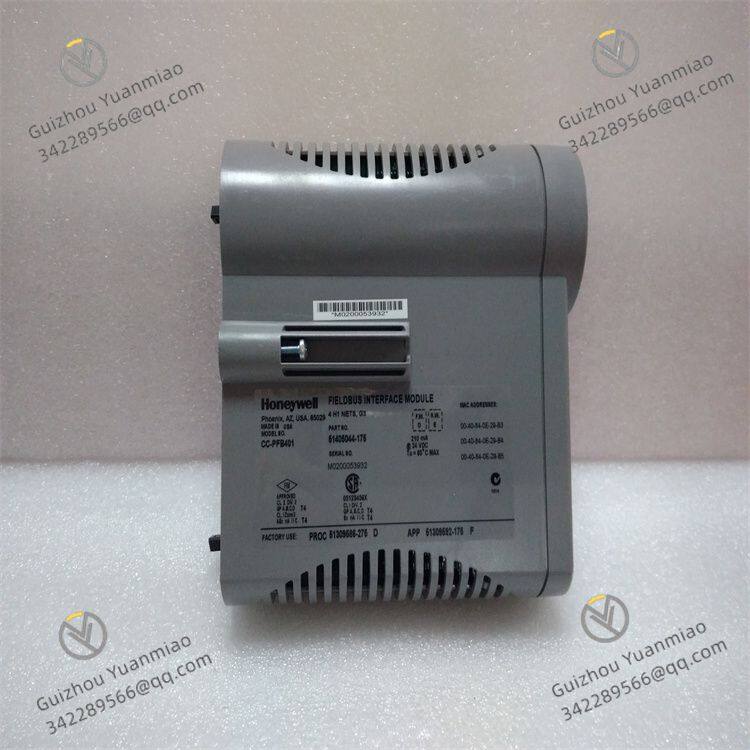

Honeywell CC-PFB401 51405044-175 Fieldbus Interface Module

31.25kbps under H1 protocol.

Up to 1Mbps for other protocols (e.g., DeviceNet, CANopen).

The number of analog input/output and digital input/output channels varies by model, typically with multiple channels to meet different needs.

Supports 4 H1 network connections.

Operating temperature: -40°C to +70°C.

Protection level: IP67 (dustproof and waterproof), suitable for harsh industrial environments.

Analog Input: Receives analog signals from sensors, converts them into digital signals via internal analog-to-digital conversion circuits for control system processing, and parses HART protocol data to obtain device status and configuration information.

Analog Output: Converts digital signals from the control system into analog signals via digital-to-analog conversion circuits for output to actuators.

Digital I/O: Directly connects to discrete devices, receiving or outputting high/low level signals to achieve logic control.

Check if communication cables are firmly connected, free of damage, or interference (replace cables for testing).

Verify that communication parameters (baud rate, data bits, parity, etc.) match those of connected devices; reset via module configuration software if inconsistent.

Review system diagnostic logs. Communication error codes (e.g., CRC check failure) may indicate protocol incompatibility or interface chip faults—contact technical support.

Inspect sensors, actuators, and other connected devices for normal operation by measuring output signals or checking device status.

Observe signal indicator lights on the module to confirm normal signal transmission/reception.

Use a multimeter to measure voltage/current at module I/O terminals. Abnormal parameters compared to ratings may indicate internal circuit faults—further inspection or module replacement is required.

Measure the voltage at the module’s power terminals with a multimeter to ensure it is approximately 24V DC. Excessive deviation may cause malfunctions.

Check power cable connections, power adapter functionality, and fuse integrity (if applicable).

For systems with redundant power supplies, verify both supplies are operational and the module can switch normally.

Ensure the installation environment temperature is within -40°C to +70°C, avoiding direct sunlight or heat sources.

Check for dust, moisture, etc., at the installation site; clean the module surface promptly to prevent faults from poor heat dissipation or short circuits.

Keep the module away from electromagnetic interference sources (e.g., large motors, transformers). Shield communication and power cables if necessary.
