HONEYWELL 05701-A-0325 DC Input Card in System 57 Series

HONEYWELL 05701-A-0325 DC Input Card in System 57 Series thumbnail-1
HONEYWELL 05701-A-0325 DC Input Card in System 57 Series thumbnail-2
HONEYWELL 05701-A-0325 DC Input Card in System 57 Series thumbnail-3
HONEYWELL 05701-A-0325 DC Input Card in System 57 Series thumbnail-4

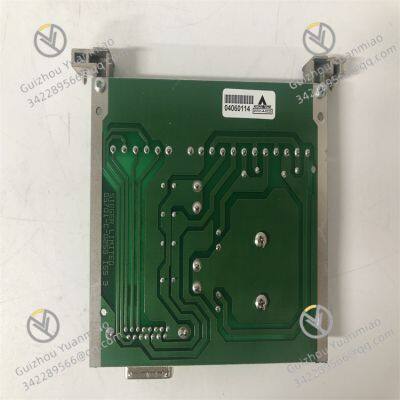

HONEYWELL 05701-A-0325 DC Input Card in System 57 Series photo-1

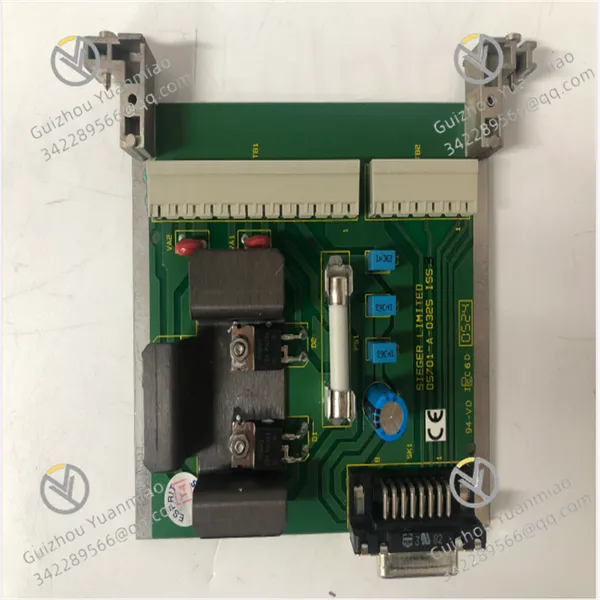

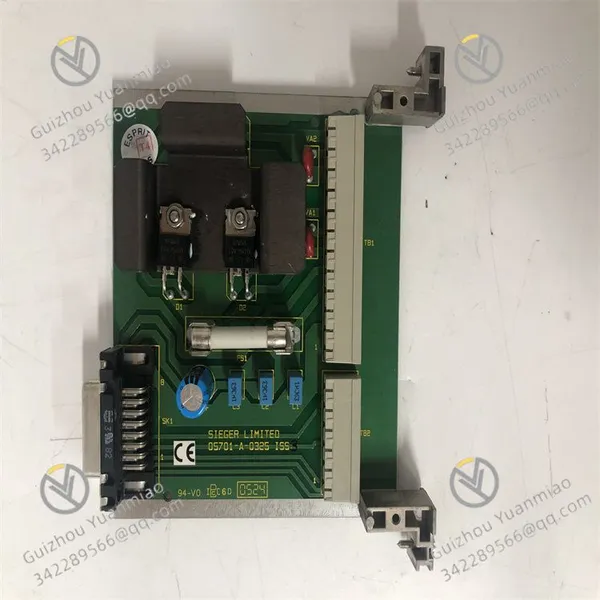

HONEYWELL 05701-A-0325 DC Input Card in System 57 Series photo-2

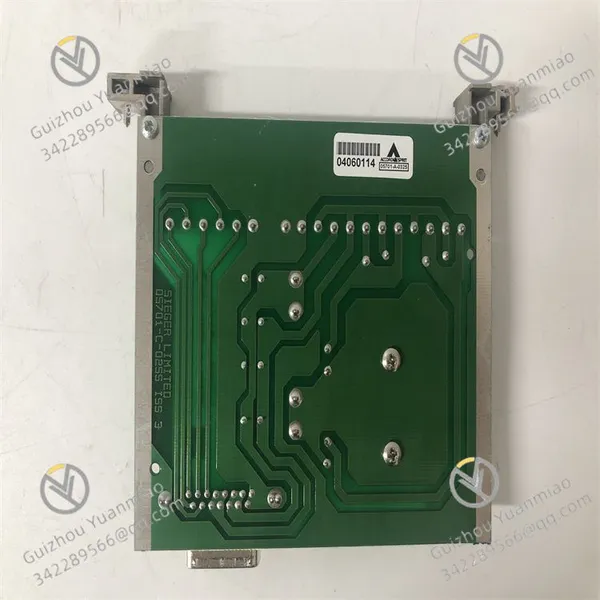

HONEYWELL 05701-A-0325 DC Input Card in System 57 Series photo-3

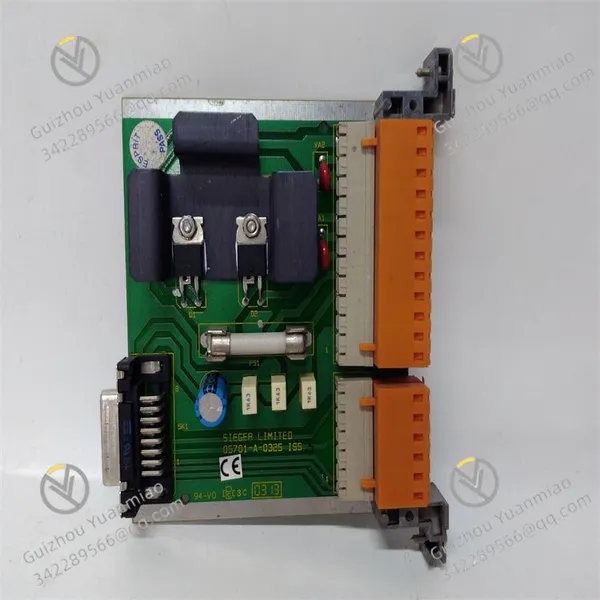

HONEYWELL 05701-A-0325 DC Input Card in System 57 Series photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




Honeywell 05701-A-0325 is a DC input card in the System 57 series. Below is relevant content from its user manual:
Product Overview
The 05701-A-0325 DC input card primarily provides DC power input for the System 57 subrack. It can be powered by an external nominal 24V DC power supply, and the power is distributed to other cards in the rack via the engineering card and subrack backplane.
Product Parameters

  • Input Voltage Range: 18-30V DC.

  • Output Voltage: 24V DC (to backplane).

  • Maximum Output Current: 5A.

  • Protection Functions: Equipped with input fuse protection, reverse polarity protection, and RFI filtering.

  • Auxiliary DC Input: Supported (for backup power supply); main power supply and auxiliary power supply are isolated via diodes.

  • Terminal Block: TB1, two-part detachable.

  • Mounting Method: Installed in Honeywell System 57 series rack slots.


05701-A-0325 (4)



Functional Features

  • Centralized Power Supply Management: Acts as a central node for power input, simplifying power wiring of the System 57 rack and providing a unified and protected power supply for all modules.

  • Enhanced Electrical Protection: Built-in input fuses, reverse polarity protection, and RFI filtering effectively protect the system from external electrical interference and incorrect wiring.

  • Redundant Power Supply Support: Through the auxiliary DC input connection, a backup battery power supply can be connected to ensure continuous system operation when the main power supply fails.

  • Convenient Maintenance Design: Adopts a two-part detachable terminal block (TB1), eliminating the need to disconnect all wires when replacing or maintaining the card, thus reducing downtime.

Application Fields

  • Industrial Gas Detection Systems: Provides reliable DC power for Honeywell System 57 controllers and related gas detection modules, ensuring continuous operation of gas concentration monitoring systems.

  • Petrochemical Industry: Used in gas leakage monitoring systems in refineries, chemical plants, etc., to ensure production safety.

  • Power Industry: Applied in gas safety monitoring systems in power plants and other facilities to prevent harmful gas leakage.



05701-A-0325 (1)






Related products:

HONEYWELL CC-PDOB01
HONEYWELL CC-PCNT01
HONEYWELL CC-PAIH01
HONEYWELL CC-PAOH01
HONEYWELL CC-PDIL01
HONEYWELL CC-PDIL01
HONEYWELL CC-TAIX01
HONEYWELL CC-TDOB01
HONEYWELL CC-TDIL01






Product Tags: 05701-A-0325 , HONEYWELL , DC input card in System 57 series
