HONEYWELL CC-PAIX02 Analog Input Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
HONEYWELL CC-PAIX02 Analog Input Module thumbnail-1
HONEYWELL CC-PAIX02 Analog Input Module thumbnail-2
HONEYWELL CC-PAIX02 Analog Input Module thumbnail-3
HONEYWELL CC-PAIX02 Analog Input Module photo-1

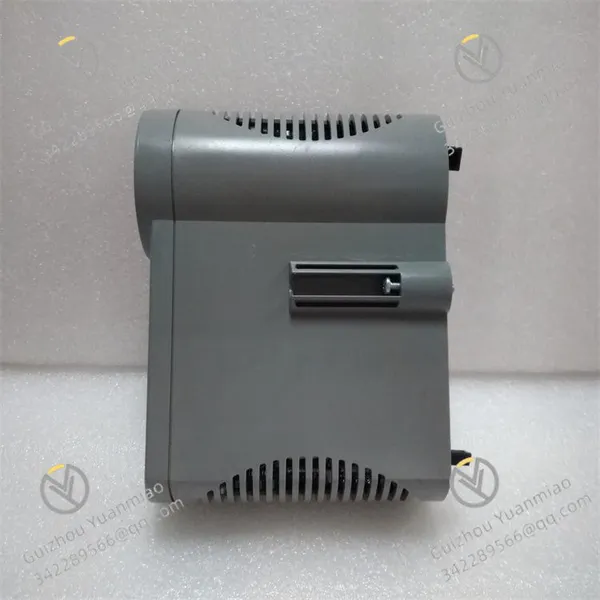

HONEYWELL CC-PAIX02 Analog Input Module photo-2

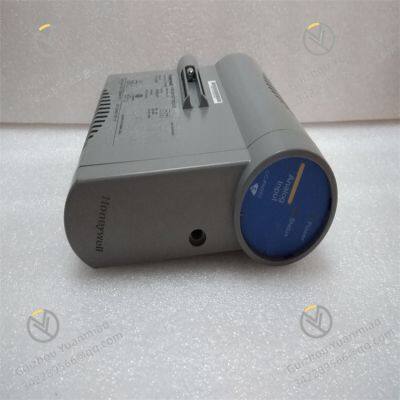

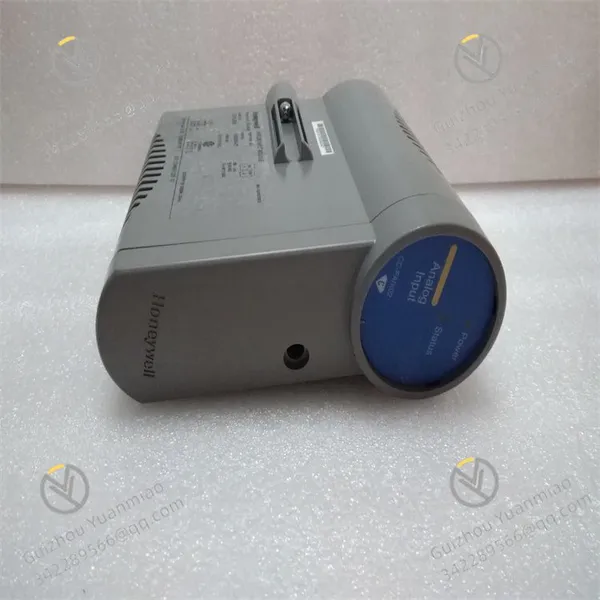

HONEYWELL CC-PAIX02 Analog Input Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




CC-PAIX02 is an analog input module belonging to Emerson's DeltaV distributed control system (DCS), designed for high-precision acquisition and processing of analog signals in industrial automation processes. Below is relevant content from its user manual:
Product Overview
The CC-PAIX02 analog input module is engineered to integrate seamlessly with the DeltaV DCS, specializing in receiving and processing analog signals from field devices such as sensors, transmitters, and transducers. It converts these analog signals (including current, voltage, thermocouple, and RTD signals) into digital data through signal conditioning and A/D conversion, then transmits the data to the DeltaV controller via the system bus. This module is widely used in industrial process monitoring, providing accurate and real-time data support for process control and safety management.

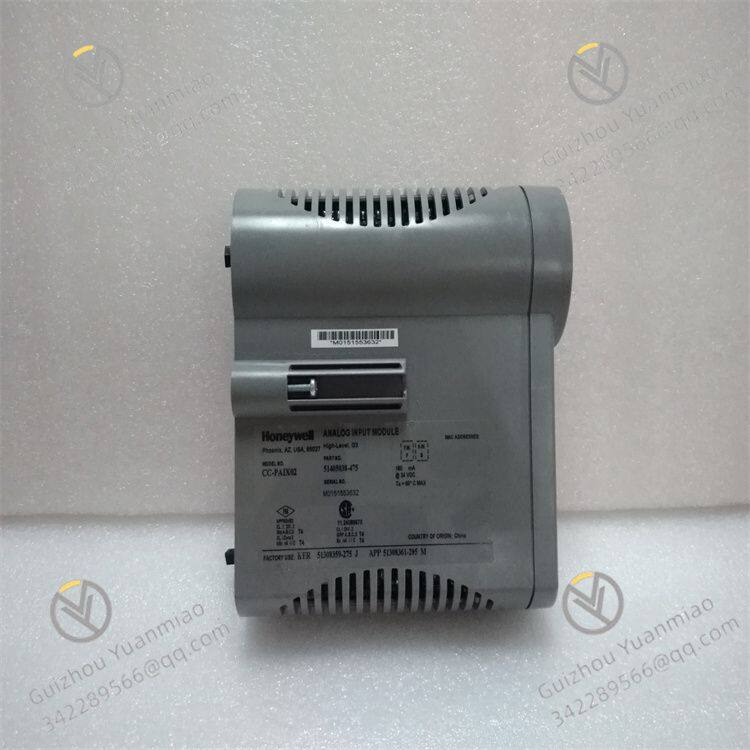

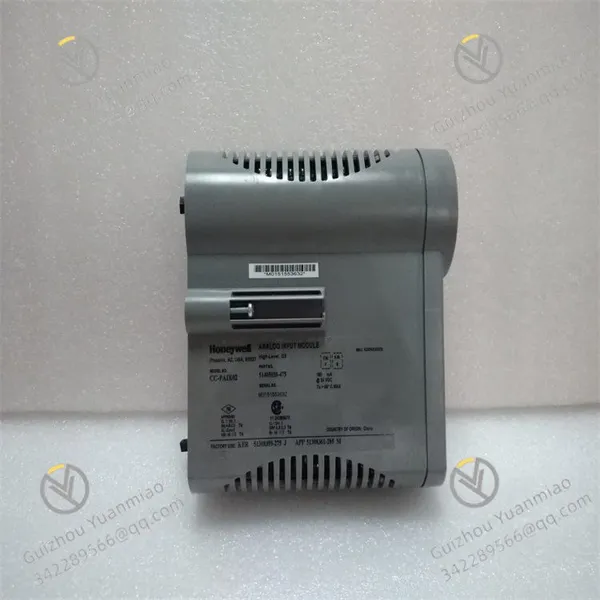

CC-PAIX02 51405038-475 (1)



Technical Parameters

  • Power Supply:

    • Operating voltage: 24VDC (supplied by the DeltaV chassis backplane).

    • Typical power consumption: 3.2W.

  • Input Channels: 8 independent analog input channels with channel-to-channel isolation.

  • Supported Signal Types:

    • Current: 4-20mA (two-wire/four-wire), 0-20mA.

    • Voltage: 0-5V, 1-5V, 0-10V, ±5V, ±10V.

    • Thermocouple: J, K, T, E, R, S, B, N (with built-in cold junction compensation).

    • RTD: Pt100 (3-wire/4-wire), Pt1000, Cu100 (3-wire).

  • Accuracy:

    • Current/voltage: ±0.05% of span (at 25°C).

    • Thermocouple: ±0.1°C (typical, varies by type).

    • RTD: ±0.05°C (typical for Pt100).

  • Resolution: 16-bit A/D conversion.

  • Sampling Rate: Up to 10 samples per second per channel (configurable).

  • Isolation:

    • Channel-to-channel: 250V AC.

    • Module to backplane: 500V AC.

  • Operating Temperature: 0°C to 60°C (ambient).

  • Storage Temperature: -40°C to 85°C.

  • Dimensions: Fits DeltaV standard chassis, approx. 122mm × 81mm × 29mm (varies by chassis).

  • Weight: Approximately 0.22kg.

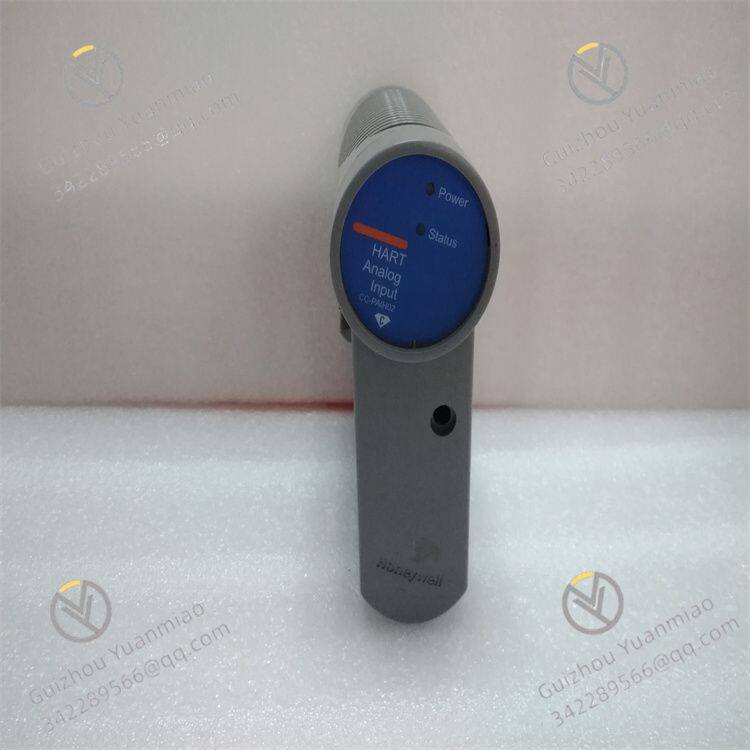

CC-PAIH02 51405038-375 (3)






Related products:

HONEYWELLCC-PDOB01
HONEYWELLCC-PCNT01
HONEYWELLCC-PAIH01
HONEYWELLCC-PAOH01
HONEYWELLCC-PDIL01
HONEYWELLCC-PDIL01
HONEYWELLCC-TAIX01
HONEYWELLCC-TDOB01
HONEYWELLCC-TDIL01






Product Tags: CC-PAIX02 , HONEYWELL , analog input module
