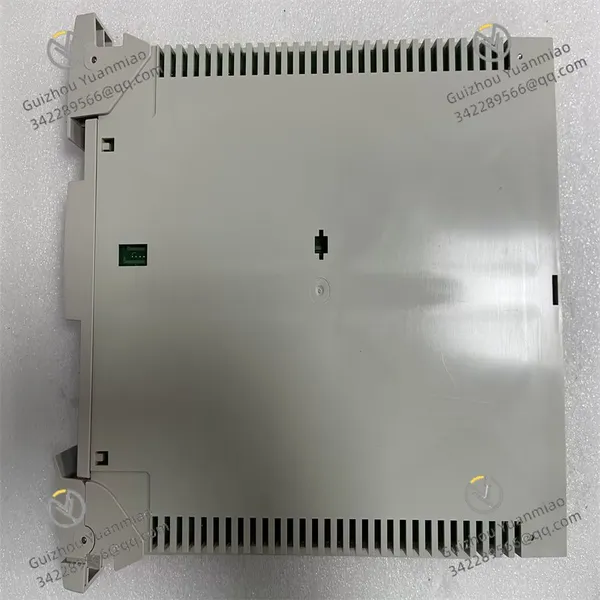

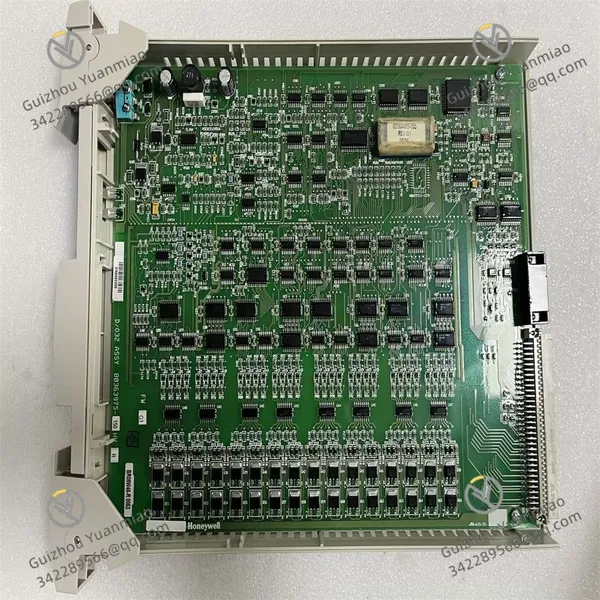

Honeywell MC-PDOY22 Digital Output Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40°C to 70°C

Storage temperature: -40°C to 85°C

Honeywell MC-PDOY22Functional FeaturesDigital Output Module Characteristics

Relay Output Structure
Using relays as output components, supporting wide voltage loads for AC/DC (such as 250V AC/30V DC). The maximum output current is typically 5A, capable of driving high-current devices like relays, contactors, and solenoid valves.
High-Reliability Design
Manufactured with industrial-grade materials, featuring resistance to electromagnetic interference (EMI) and radio-frequency interference (RFI). It adapts to a wide temperature range of -40°C to 70°C, suitable for harsh industrial sites.
Flexible Control Capability
Output logic (such as pulse output, hold output) can be set through configuration software, supporting manual forced output functions for easy debugging and maintenance.
Protection and Diagnostic Functions
Output channels have overload and short-circuit protection, real-time monitoring of channel status, and fault feedback (such as contact anomalies, power errors) through LED indicators.

Channel and Interface Characteristics

Number of Output Channels
Typically 2 independent digital output channels, supporting simultaneous control of 2 load devices.
Input/Output Isolation
Electrical isolation between channels avoids mutual interference and improves system stability.

Technical Parameters

Parameter Category	Specific Indicators
Output Type	Relay output (AC/DC universal)
Output Voltage Range	AC 250V / DC 30V (maximum)
Maximum Output Current	5A per channel (resistive load)
Contact Life	Mechanical life: approximately 10 million times; electrical life: approximately 100,000 times (full load)
Input Control Signal	DC 24V (typical value), supporting source/sink input modes
Communication Interface	Usually connected to the controller through a backplane or dedicated bus (e.g., Modbus, EtherNet/IP require matching with the main module)
Power Supply	Powered by the backplane or external 24VDC (low power consumption, typically
Operating Temperature	-40°C to 70°C, storage temperature: -40°C to 85°C
Protection Level	IP20 (panel mounting), supporting DIN rail or panel fixed installation

Application Areas

Manufacturing Automation
Controlling cylinders, motor start/stop, conveyor switching on production lines, or driving alarm devices (such as audio-visual alarms).
Building and Building Automation
Controlling air conditioning system valves, lighting circuit switches, elevator signal indication, or integrating into access control systems to drive electromagnetic locks.
Power and Energy
Controlling auxiliary contacts of circuit breakers and isolating switches in substations, or switching relay circuits in photovoltaic inverters.
Process Control
Starting/stopping agitator motors in chemical equipment, controlling solenoid valves of safety valves, or driving actuators of filling equipment in food processing.
Environmental Protection and Water Treatment
Controlling the start/stop of pumps and valves in wastewater treatment plants, or switching sampling pipelines in water quality monitoring equipment.

Common Faults and Solutions

No Output Action
Possible Causes: Control signal not input, relay contact oxidation, load overload or short circuit.
Solutions: Use a multimeter to detect whether there is a 24V DC signal at the input terminal; manually press the relay contact to confirm whether the mechanical action is normal; check if the load current exceeds 5A, and replace the contact or module.
Abnormal Contact Heating
Possible Causes: Long-term full-load operation or excessive contact resistance.
Solutions: Reduce the load current (it is recommended not to exceed 80% of the rated value); clean the contact oxidation layer, and replace the module if the fault occurs frequently.
Inter-channel Interference
Possible Causes: No grounding or poor grounding, or the output wire is laid in parallel with the high-voltage cable.
Solutions: Ensure that the module grounding terminal is reliably grounded; the output wire is spaced ≥30cm from the high-voltage cable, or use a shielded wire and ground it at a single end.
Abnormal LED Indicator
Possible Causes: Power failure or internal circuit abnormality.
Solutions: Check whether the 24V power supply is normal (±15% fluctuation range). If the power supply is normal but the indicator light is off, it may be an internal module fault, and maintenance should be contacted.

Comparative Advantages over Similar Products

Wide Voltage Compatibility
Relay output supports AC/DC dual modes, adapts to different load types, and reduces the complexity of model selection.
High Protection Design
Wide temperature working range and anti-interference ability, suitable for harsh environments such as dust and vibration (such as metallurgical and mining scenarios).
Maintenance Convenience
Independent channel design, single-channel failure does not affect the operation of other channels, and supports hot swapping (some models).
