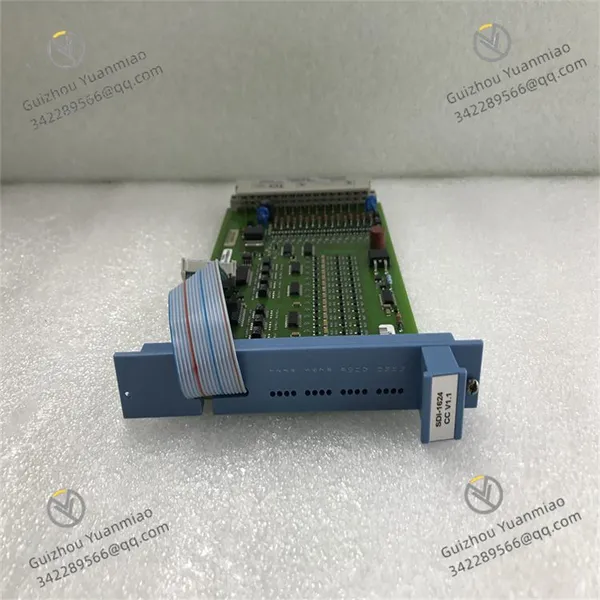

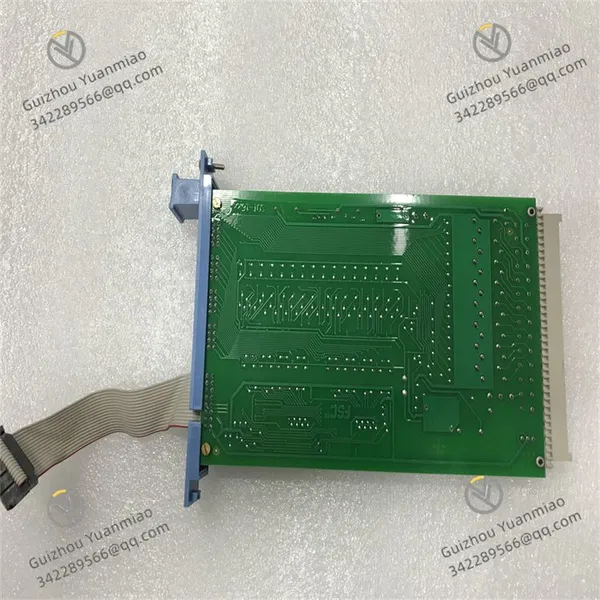

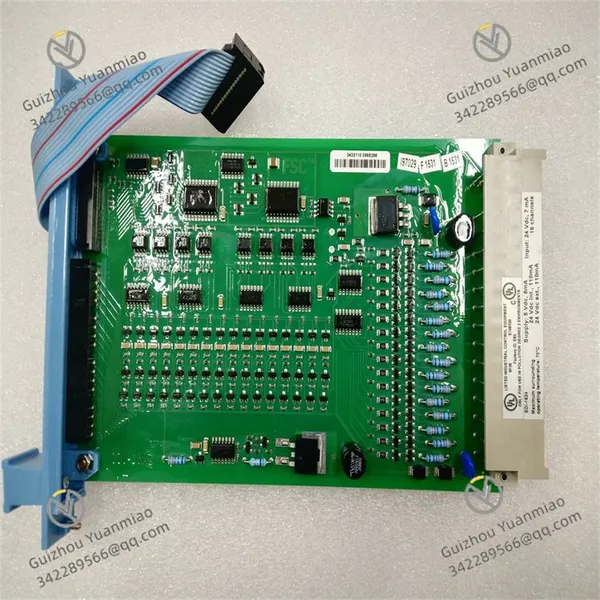

Honeywell FC-SDI-1624

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Phase:

Other, Global universal model

Brand:

Other, Honeywell

Cooling Method:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Phase Other, Global universal model

Brand Other, Honeywell

Cooling Method Other, Global universal model

Frequency Characteristics Other, Global universal model

Winding Type Other, Global universal model

Shape of Core Other, Global universal model

Core Other, Global universal model

Dimensions 100mm×200mm×50mm

Temperature -20℃~+60℃

Power Specifications DC 24V (±10%) or AC 100-240V

Honeywell FC-SDI-1624I. Functional Overview

The Honeywell FC-SDI-1624 is an industrial-grade digital input controller and a core component of Honeywell's automation control system. It is primarily used for collecting switch signals and performing logical processing, suitable for industrial scenarios requiring high-reliability digital signal monitoring. Its core functions include:

Digital Signal Acquisition: Receives and processes various switch signals (such as button status, relay contacts, and sensor on/off signals).
Logical Operation and Control: Executes preset logic (such as AND/OR/NOT operations and timing control) based on input signals and outputs control commands.
Communication and System Integration: Supports communication with host computers, PLCs, or DCS systems to achieve centralized monitoring and interlocking control.

II. Technical Parameters

Parameter Category	Specific Indicators
Input Channels	16 digital input (DI) channels, supporting dry contact or wet contact input
Signal Type	- Dry contact: Non-voltage contacts (e.g., mechanical switches, relay contacts). - Wet contact: DC 5-30V level signals.
Input Isolation	Optoelectronic isolation for each channel, isolation voltage ≥500V AC to prevent electrical interference and surge damage
Response Time	Typical value ≤10ms, supporting high-speed signal acquisition (e.g., pulse counting, encoder signals)
Communication Interfaces	Supports Modbus RTU, Ethernet (TCP/IP), and Honeywell proprietary protocols (e.g., UCN, C300)
Power Specifications	DC 24V (±10%) or AC 100-240V (wide voltage design), power consumption ≤10W
Operating Environment	Temperature: -20℃~+60℃; Humidity: 5%~95% (non-condensing); Protection class IP20 (indoor installation)
Installation Method	Standard 35mm rail mounting or panel mounting, dimensions approximately 100mm×200mm×50mm

III. Working Principle

Signal Acquisition and Preprocessing

Dry contact signals: Detect the on/off status of contacts; no voltage is regarded as "open," and closure is regarded as "closed."
Wet contact signals: Converted to digital quantities (0/1) through level detection (e.g., ≥15V is regarded as "high level," and ≤5V is regarded as "low level").
Optoelectronic isolation circuits prevent external interference from invading the internal circuits of the controller.

Input Interface Design: Connects to switch signal sources (such as limit switches and proximity sensors) via terminal blocks. Each channel supports dry/wet contact switching to be compatible with different types of sensors.
Signal Processing Flow:

Data Processing and Logical Operations

Scans the status of input channels in real time and stores them in registers.
Executes operations according to preset logic (e.g., "when input 1 and input 2 are simultaneously closed, trigger output 1") and generates control signals.

Built-in Processing Unit: Adopts an industrial-grade MCU, supporting the configuration of logical rules (such as alarm thresholds and interlocking conditions) through programming software (e.g., Honeywell Experion, PKS).
Logical Execution Flow:

Communication and System Integration

Data Interaction: Communicates with upper-level systems via Modbus or proprietary protocols, uploads input statuses (such as equipment start/stop signals and fault alarms), and receives remote control commands (such as logical parameter modification).
Expansion Function: Supports interlocking with other Honeywell controllers (such as AI modules and PID controllers) to build complex automation systems.

Protection and Diagnostic Mechanisms

Hardware Protection: Overvoltage protection for input channels (such as automatic current limiting when wet contacts are mistakenly connected to high voltage), and the power module integrates surge protection.
Self-Diagnosis Function: Monitors channel faults (such as input short circuits and disconnections) in real time, reports anomalies through LED indicators (such as channel status lights and fault lights) or communication interfaces, and supports querying historical fault records.

IV. Typical Application Scenarios

Industrial Process Control

Manufacturing: Monitoring the status of production line equipment (such as motor start/stop and conveyor operation signals), and interlocking safety interlocks (such as emergency stop buttons triggering shutdown).
Chemical/Petroleum: Collecting tank level switch signals and monitoring valve switch status, cooperating with DCS to achieve process safety control.

Building Automation

Security Systems: Collecting access control switches and fire alarm contact signals, and interlocking lighting and ventilation equipment.
HVAC: Monitoring the start/stop status of fans and accessing air conditioner filter clogging alarm signals to optimize equipment operation logic.

Power and Energy

Substations: Monitoring the on/off status of circuit breakers and collecting relay protection signals to assist in the operation of power monitoring systems (SCADA).
Renewable Energy: Detecting the status of circuit breakers in photovoltaic array combiner boxes and collecting fault signals of wind power equipment to achieve remote operation and maintenance.

Mechanical and Equipment Automation

Machine Tool Control: Collecting travel switch and tool in-position signals to achieve automation of the processing flow.
Logistics Transportation: Accessing conveyor belt deviation and blockage sensor signals to trigger fault shutdown and alarms.

V. Comparison with FC-SAI-1620M (Analog vs. Digital)

Characteristics	FC-SAI-1620M (Analog Input)	FC-SDI-1624 (Digital Input)
Signal Type	Continuous quantities (e.g., 4-20mA, temperature, pressure)	Discrete quantities (switch status, contact on/off)
Processing Method	ADC conversion, filtering, linearization	Level detection, optoelectronic isolation
Application Scenarios	Precise parameter monitoring (e.g., flow regulation, temperature control)	Status monitoring and logical control (e.g., equipment start/stop, alarm triggering)
Accuracy Index	±0.1%~±0.5% FS (analog conversion accuracy)	Binary (0/1) with no accuracy error, focusing on response speed
Typical Functions	PID regulation, analog output control	Logical operations, pulse counting, interlocking protection

VI. Selection and Configuration Suggestions

Application Scenarios: If it is necessary to monitor "on/off" and "open/closed" statuses (such as equipment operation status and safety interlock signals), FC-SDI-1624 is preferred; if it is necessary to collect continuously changing physical quantities (such as temperature values and pressure values), FC-SAI-1620M is selected.
System Integration: When paired with Honeywell DCS systems (such as Experion), seamless communication can be achieved through proprietary protocols; when integrating with third-party PLCs, it is recommended to use Modbus RTU/TCP protocols.
Expansion Design: According to the number and type of on-site signals, analog and digital modules can be mixed and configured to optimize system cost and reliability.

Product Tags: FC-SDI-1624 , 8406-121
