Honeywell FC-TSHART-1620M Safety Manager System Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
Honeywell FC-TSHART-1620M Safety Manager System Module thumbnail-1
Honeywell FC-TSHART-1620M Safety Manager System Module thumbnail-2
Honeywell FC-TSHART-1620M Safety Manager System Module photo-1
Honeywell FC-TSHART-1620M Safety Manager System Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Phase:
Other, Global universal model
Brand:
Other, Honeywell
Cooling Method:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Phase Other, Global universal model
Brand Other, Honeywell
Cooling Method Other, Global universal model
Frequency Characteristics Other, Global universal model
Winding Type Other, Global universal model
Shape of Core Other, Global universal model
Core Other, Global universal model
Honeywell FC-TSHART-1620MFunctional Features
  • HART Communication Capability
    Supports the HART protocol, a bidirectional communication protocol in industrial fields for connecting field intelligent instruments and control room devices. It enables digital signal communication over existing analog signal transmission lines, facilitates connection with various field instruments equipped with HART interfaces, realizes bidirectional data transmission, and allows operators to remotely control or monitor field intelligent devices.
  • Multi-channel Design
    The "16" in the model likely indicates 16 channels, which can connect to multiple external devices or sensors simultaneously, enabling collection and processing of signals from multiple different points or types. This makes it suitable for industrial scenarios requiring simultaneous monitoring of multiple parameters or locations.
  • Signal Processing and Conversion
    Capable of processing signals from external devices or sensors, including functions such as signal amplification, filtering, and analog-to-digital conversion. It converts analog signals into digital signals for subsequent processing and transmission, and may also process and convert digital signals to meet the interface requirements of different devices.
  • Isolation Protection
    Equipped with isolation functions to achieve electrical isolation among inputs, outputs, and power supplies. This effectively prevents external interference signals from entering the system, avoids internal signal interference with other devices, improves system stability and reliability, and enhances the device's anti-interference capability in complex industrial environments.

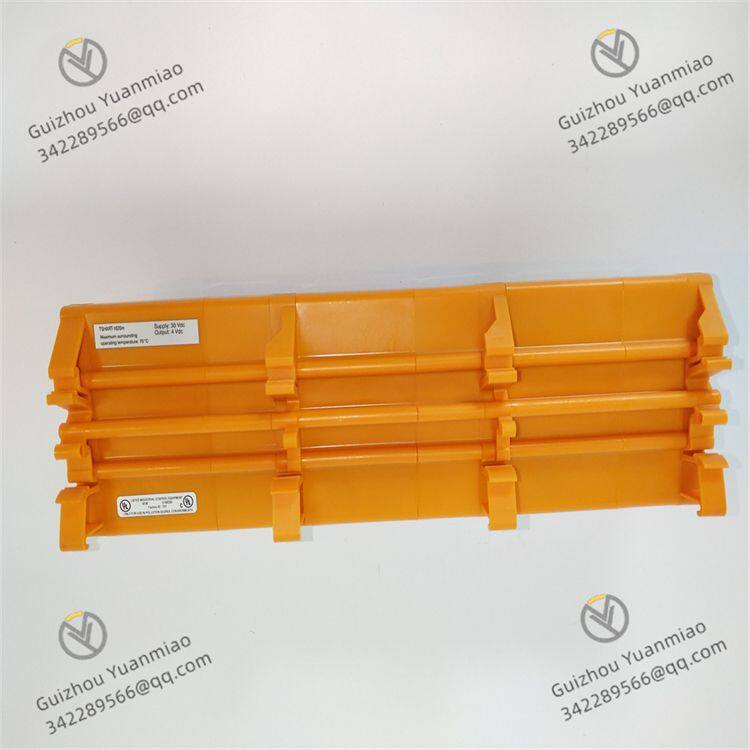

FC-TSHART-1620M (2)

Working Principle
  • HART Communication Principle
    Adopts a half-duplex communication mode based on Bell202-standard FSK (Frequency Shift Keying) signals, superimposing 0.5mA audio digital signals onto low-frequency 4-20mA analog signals for bidirectional digital communication. Since the average value of FSK signals is 0, it does not affect the magnitude of analog signals sent to the control system, ensuring compatibility with existing analog systems. In communication, main variables and control information are transmitted via 4-20mA, while additional measurement, process parameters, device configuration, calibration, and diagnostic information are accessed through the HART protocol.
  • Signal Processing Flow
    When signals from external devices or sensors enter the FC-TSHART-1620M, they first go through signal conditioning circuits for amplification, filtering, etc., to improve signal quality. Then, analog signals are converted to digital signals via an analog-to-digital converter, which are processed by an internal microprocessor or digital signal processor. Data is encapsulated and parsed according to the HART protocol to enable communication and data interaction with other devices. At the output, processed data may be converted into corresponding analog or digital signals to meet the input requirements of external devices.
Technical Parameters

  • Number of Channels: 16 channels.

  • Signal Types: Supports signals compatible with the HART protocol, including 4-20mA analog signals and HART digital signals superimposed on them.

  • Communication Rate: Complies with the HART protocol's standard data transmission rate, typically 1.2kbps.

  • Isolation Performance: Has a specified isolation voltage rating (e.g., capable of withstanding thousands of volts) to ensure electrical safety and anti-interference capability.

  • Operating Temperature Range: Adapts to a wide industrial temperature range, such as -20°C to 70°C.

  • Power Requirements: Supports common industrial power voltages, such as DC 24V±10%.

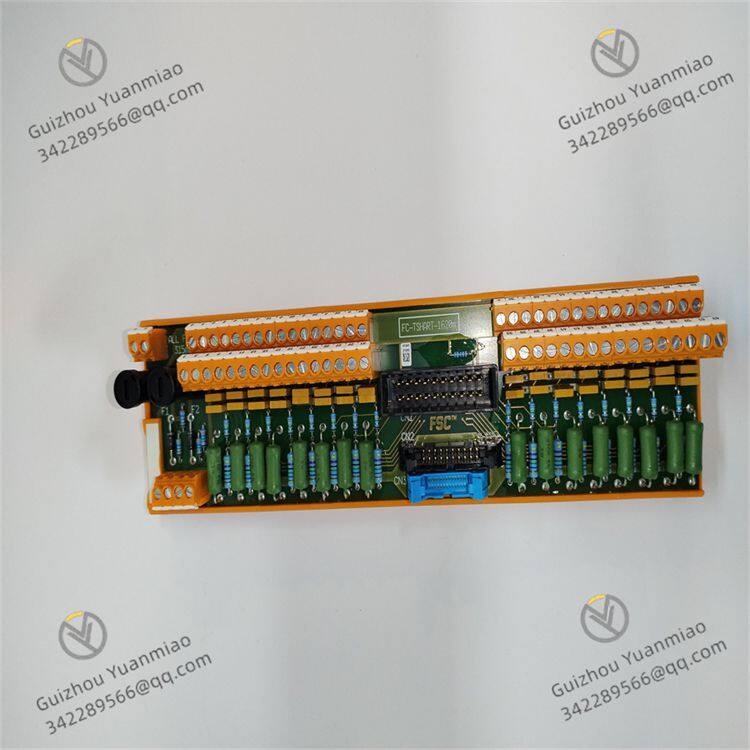

FC-TSHART-1620M (1)

Application FieldsI. Petrochemical and Energy Industries
  1. Production Process Parameter Monitoring

    • Scenario: Real-time monitoring of process parameters (temperature, pressure, flow, etc.) in reactors and pipeline systems of refineries and chemical plants.

    • Application Value: Collects signals from sensors (e.g., thermocouples, RTDs, pressure transmitters) at different points via 16 channels, connects data to DCS/PLC systems, enables precise production process control, and prevents material leakage or equipment failures caused by parameter anomalies.

    • Typical Case: Monitoring reactor temperature and pressure in ethylene cracking units, linkage controlling feed rate and cooling systems to ensure cracking efficiency and safety.

  2. Energy Medium Metering and Management

    • Scenario: Metering and consumption monitoring of energy media (steam, natural gas, fuel oil) in power plants and natural gas transmission stations.

    • Application Value: Collects signals from flow meters, calorimeters, etc., uploads data via Modbus or HART protocol, supports energy consumption statistics and cost accounting, and helps enterprises achieve energy saving and consumption reduction.

II. Water Treatment and Environmental Protection Engineering
  1. Wastewater Treatment Plant Process Monitoring

    • Scenario: Monitoring dissolved oxygen in aeration tanks, sludge concentration, and water quality indicators (COD, pH) in wastewater treatment plants.

    • Application Value: Connects multiple sensor types (e.g., dissolved oxygen electrodes, turbidimeters) via 16 channels, uploads data to SCADA systems via Modbus protocol, optimizes aeration time and chemical dosage in real time, and improves wastewater treatment efficiency.

    • Typical Case: Parameter monitoring in multi-stage treatment tanks of municipal wastewater treatment plants to ensure effluent quality compliance.

  2. Waste Gas Treatment Equipment Monitoring

    • Scenario: Monitoring temperature, pressure, and pollutant concentration in industrial waste gas treatment devices (e.g., desulfurization towers, denitrification reactors).

    • Application Value: Collects sensor signals and transmits them via HART protocol, linkage controls spray volume or catalyst activity to ensure waste gas emissions meet environmental standards.

Product Tags: FC-TSHART-1620M
