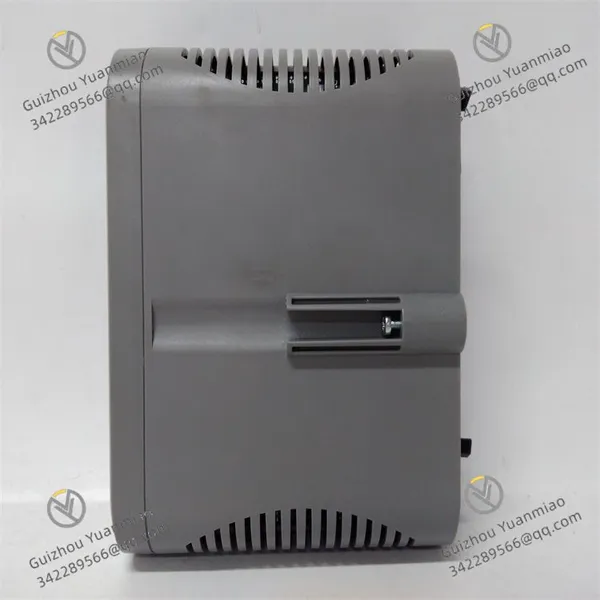

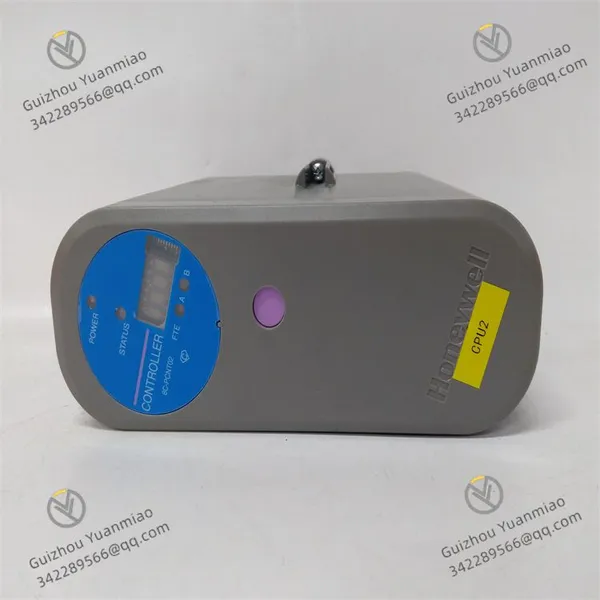

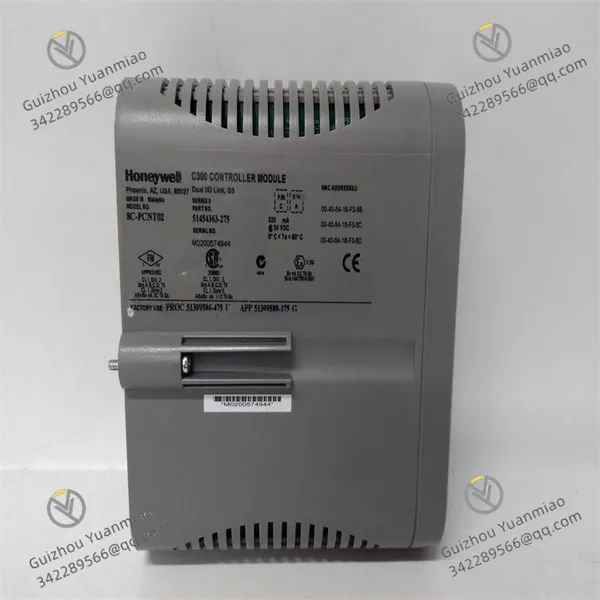

Honeywell 8C-PCNT02 51454363-275 Control Pulse Card Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Honeywell 8C-PCNT02 51454363-275Functional Features

Pulse Counting Function
Designed for processing and counting pulse signals, it receives pulse inputs from sensors, encoders, and other devices, enabling accurate calculation and processing.
Multi-channel Input
Typically equipped with multiple input channels, supporting connection of multiple pulse sources. Each channel can be independently configured and processed to meet diverse input signal requirements.
High-precision Counting
Features high-precision pulse counting capability for accurate measurement, suitable for applications requiring precise control and measurement of pulse signals.
Configuration Flexibility
Offers flexible configuration options, allowing adjustment of parameters such as pulse input modes and counter resolution through software settings.
High Reliability
Constructed with Honeywell's high-quality materials and manufacturing processes, and subjected to rigorous design and testing, ensuring excellent reliability and durability.
Compatibility
Compatible with other Honeywell automation control products and systems, facilitating integration into existing control systems.

Technical Parameters

Communication Protocols
Supports Modbus TCP/IP, Ethernet/IP, etc.
Power Consumption
Maximum 10W.
Memory Capacity
256MB RAM, 512MB flash memory.
Protection Level
IP67, suitable for harsh industrial environments with dust and water protection.
Dimensions
245mm (Length) × 178mm (Width) × 54mm (Height).

Application Areas

Industrial Automation
Monitors pulse signals from sensors on production lines.
Power Systems
Monitors pulse signals from generators or power grids.
Process Control
Used in chemical, petroleum, natural gas, and other industries to monitor and count pulse signals in processes.
Instrumentation and Measurement Systems
Records pulses output by measuring devices.
Equipment Health Monitoring
Monitors the operational status of equipment.
Laboratory Instruments
Enables data collection and counting for experimental instruments in scientific laboratories.

Common Faults and Solutions

Inaccurate Pulse Counting
Possible Causes: Sensor failure, interference in input cables, or incorrect module parameter settings.
Solutions: Check sensor operation, ensure input cables are well-shielded, and verify parameters such as pulse input modes and counter resolution in the module.
Communication Failure
Possible Causes: Poor communication cable connection, incorrect communication parameter settings, or electromagnetic interference.
Solutions: Inspect communication cable connections, confirm parameters match other devices, and shield communication lines to reduce interference.
Module Malfunction
Possible Causes: Power supply failure or internal circuit damage.
Solutions: Use a multimeter to check input voltage. If the power supply is normal, contact professional maintenance personnel to inspect internal circuits.
