ABB Bailey IMFCS01 Frequency Counter Slave Module

ABB Bailey IMFCS01 Frequency Counter Slave Module thumbnail-3

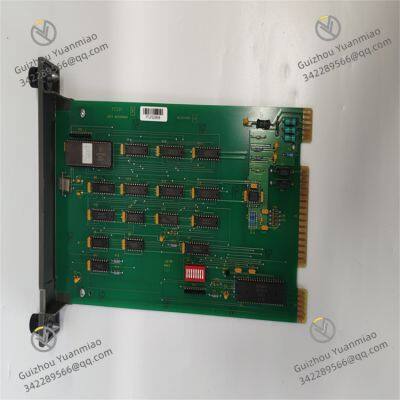

ABB Bailey IMFCS01 Frequency Counter Slave Module photo-1

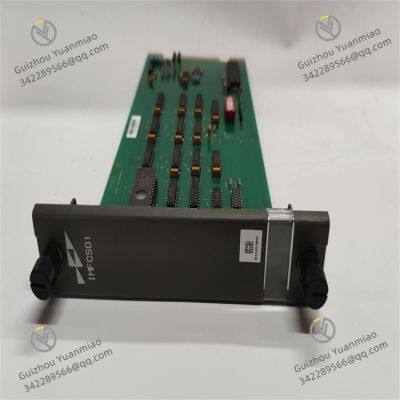

ABB Bailey IMFCS01 Frequency Counter Slave Module photo-2

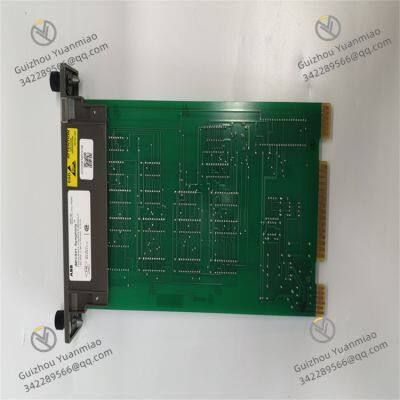

ABB Bailey IMFCS01 Frequency Counter Slave Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Communication Rate 9.6kbps~12Mbps

Operating Temperature -20℃ ~ +60℃

Operating Voltage DC 24V (±10%)

ABB Bailey IMFCS01I. Basic Overview

The IMFCS01 is a Fieldbus Communication Module in ABB's AC 800M controller series, primarily used to connect distributed I/O systems or third-party fieldbus devices for high-speed data interaction with AC 800M control systems. The module supports multiple mainstream fieldbus protocols (such as PROFIBUS DP, Modbus RTU/TCP, etc.), and can function as a master or slave station, suitable for industrial automation scenarios requiring high real-time performance and reliability, such as process control, power systems, or complex equipment cluster management.

II. Functional Features1. Communication Protocol Support

Mainstream Protocol Compatibility: Supports PROFIBUS DP (master/slave mode), Modbus RTU (RS485), and Modbus TCP (Ethernet), adapting to field devices from different manufacturers.
Flexible Configuration Modes: Configurable as a bus master (actively polling slave devices) or slave (responding to master commands) based on requirements, supporting parallel operation of multiple protocols.

2. Interface and Electrical Design

Physical Interfaces: Equipped with PROFIBUS DP interface (9-pin Sub-D connector), RS485 serial port (Modbus RTU), and Ethernet interface (Modbus TCP); some models support fiber optic expansion.
Electrical Isolation: Isolation voltage ≥500V AC between each interface and the system, effectively resisting electromagnetic interference in industrial environments.

3. Data Processing and Real-Time Performance

High-Speed Data Transmission: PROFIBUS DP reaches a maximum rate of 12Mbps, supporting real-time data mapping (e.g., directly mapping field I/O data to controller memory).
Periodic and Event Triggering: Configurable communication cycle (minimum 1ms), supporting event-triggered mechanisms (e.g., proactive data reporting upon device status changes).

4. Diagnosis and Safety Mechanisms

Real-Time Fault Monitoring: Supports bus disconnection and slave fault detection, with real-time status feedback via LED indicators (POWER, RUN, COM, ERROR) and system software.
Redundancy and Fault Tolerance: Configurable dual-module redundancy in some scenarios (e.g., PROFIBUS master redundancy) to enhance system reliability.

III. Performance Parameters

Parameter Category	Specific Indicators
Operating Voltage	DC 24V (±10%), power consumption ≤20W
Communication Interfaces	PROFIBUS DP, RS485 (Modbus RTU), Ethernet (Modbus TCP)
Communication Rate	PROFIBUS DP: 9.6kbps~12Mbps; Modbus RTU: 1200bps~115.2kbps; Modbus TCP: 10/100Mbps
Maximum Connected Devices	PROFIBUS DP: Up to 126 slave stations; Modbus RTU: 32 slave stations; Modbus TCP: Dependent on network configuration
Data Processing Capacity	Maximum data frame support: 244 bytes (PROFIBUS DP), 256 bytes (Modbus RTU), 1024 bytes (Modbus TCP)
Operating Temperature	-20℃ ~ +60℃ (non-condensing), storage temperature -40℃ ~ +85℃
Protection Level	IP20 (requires installation in control cabinets)
Installation Method	35mm DIN rail mounting, compatible with AC 800M controller I/O slots, supporting horizontal/vertical installation

IV. Installation and Wiring Guide1. Installation Precautions

ESD Protection: Wear an anti-static wrist strap during operation to avoid direct contact with circuit board interfaces.
Heat Dissipation: Maintain module spacing ≥15mm; configure fans or ventilation structures in control cabinets to ensure the operating temperature stays within the rated range.

2. Wiring Specifications

PROFIBUS DP Wiring: Use twisted shielded cables to connect A/B terminals of the D-type plug. 93Ω terminal resistors are required at both ends of the network, and the shield is single-point grounded.
RS485 Wiring: Connect A/B terminals with twisted shielded cables, and terminate with a 120Ω matching resistor at the end to avoid signal reflection.
Ethernet Wiring: Connect RJ45 interfaces with CAT5e or higher cables, supporting direct connection or expansion via switches. A fixed IP address is recommended for configuration.
Power Supply Wiring: Use 1.5mm² shielded cables to connect to 24V DC power (+24V, GND), with a 3A fuse in series to prevent overcurrent.

V. Debugging and Fault Troubleshooting1. Indicator Status Interpretation

POWER (Green): Steady on indicates normal power supply; off requires checking power, fuse, or wiring.
RUN (Green): Steady on indicates module initialization is complete; flashing may signal configuration errors or bus communication anomalies.
COM (Yellow/Green): Flashing indicates bus data transmission; constant off may signal bus disconnection or slave unresponsiveness.
ERROR (Red): Steady on indicates hardware faults, protocol parameter errors (e.g., baud rate mismatch), or configuration errors. Logs should be checked via ABB Control Builder software.

2. Common Fault Handling

PROFIBUS Communication Interruption: Verify that bus address and rate settings match the slave station, check if terminal resistors are connected, and measure bus voltage with a multimeter (approximately 5V no-load, 3.5V loaded).
Modbus Data Anomalies: Check if CRC check configuration is correct. If data errors are caused by interference, try reducing the communication rate or enhancing cable shielding.
Module Unresponsiveness: Restart the module or re-download configuration. If ineffective, hardware damage may require module replacement and contact with ABB technical support.

VI. Application Scenarios

Distributed I/O System Integration: As a PROFIBUS master, connect ABB S800 I/O modules or third-party distributed devices (e.g., Siemens ET200M) to build large-scale control systems.
Cross-Protocol Data Interaction: Connect Modbus devices (e.g., smart meters, frequency converters) to the AC 800M system for energy data collection or remote equipment control.
High-Speed Production Line Control: Utilize PROFIBUS high-speed characteristics to connect servo drives, encoders, etc., for high-precision motion control.
Legacy System Upgrades: Compatibility with traditional PROFIBUS or Modbus devices via IMFCS01 avoids full-system replacement costs while integrating with new control systems.

VII. Comparison with Similar Modules (IMFCS01 vs. INIIT13)

Comparison Dimension	IMFCS01 (Fieldbus Communication Module)	INIIT13 (General Intelligent Interface Module)
Core Positioning	Focus on high-speed fieldbus (e.g., PROFIBUS) communication	Focus on multi-protocol conversion and general interface integration
Protocol Support	PROFIBUS DP, Modbus RTU/TCP	Modbus RTU/TCP, CANopen (no PROFIBUS)
Communication Rate	PROFIBUS up to 12Mbps (high-speed scenarios)	Modbus RTU up to 115.2kbps (medium-low speed scenarios)
Typical Applications	Distributed I/O control, high-speed production lines	Heterogeneous device integration, legacy system compatibility
Interface Expandability	Supports PROFIBUS fiber optic expansion	Supports CANopen interface expansion

VIII. Conclusion

As a high-speed fieldbus hub for ABB's AC 800M system, the IMFCS01 addresses real-time communication challenges between distributed devices and control systems through deep compatibility with protocols like PROFIBUS. Its high reliability, high-speed data processing capability, and flexible protocol configuration make it a core component for large-system integration and high-speed control scenarios in industrial automation—particularly suitable for projects requiring connection to PROFIBUS devices or strict real-time performance.

Product Tags: INNIS21 , IMASI23 , IMRIO02
