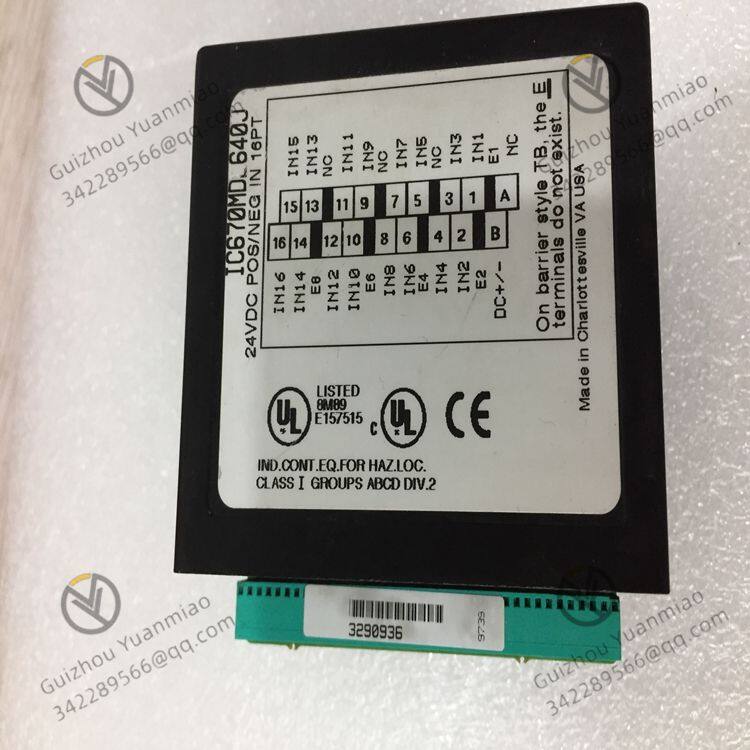

GE IC670MDL640 Industrial Automation I/O Module

GE IC670MDL640 Industrial Automation I/O module

I. Module Types and Basic Functions

The IC670MDL640 is a Digital Input Module, mainly used to collect switch signals (such as buttons, limit switches, proximity sensors, etc.) in industrial sites and convert them into digital signals recognizable by PLCS to achieve the monitoring and control of equipment status.

Ii. Technical Characteristics

Channel specification:

It usually contains 16 isolated digital input channels and supports dry contact or NPN/PNP type sensor signal input.

Each channel can be independently configured as either DC or AC input, depending on the model version (common DC versions support 24VDC input).

Electrical parameters:

Input voltage range: The typical value is 24VDC (±10%). Some models support 110VAC/220VAC input. Please confirm according to the actual specifications.

Input current: Approximately 10-15mA for a single channel (at 24VDC).

Isolation method: Photoelectric isolation is adopted between channels, and the isolation voltage is usually 500VAC or higher to enhance the anti-interference ability.

Response time:

The filtering time of the input signal can be configured (such as 1-10ms) to eliminate high-frequency interference or jitter and ensure signal stability.

Mechanical and environmental characteristics:

Installation method: Standard DIN rail installation, supports side-by-side installation with other Series 90-70 modules.

Operating temperature: 0-60℃ (industrial grade), storage temperature: -40 -85℃.

Protection grade: IP20 (preventing solid foreign objects from entering), suitable for installation in control cabinets.

Iii. Application Scenarios

The IC670MDL640 is widely used in industrial automation systems that require the collection of switch signals. Typical scenarios include:

Manufacturing production line

Monitor the start and stop status of the conveyor belt, the limit position of the mechanical arm, the signal of the material arrival sensor, etc., provide equipment operation status data for the PLC, and achieve process automation control.

For example, in an automotive welding production line, this module collects sensor signals from each workstation and coordinates the action sequence of multiple devices.

Electric Power and Energy System

Monitor the opening and closing status of circuit breakers and contactors, the oil temperature alarm signal of transformers, as well as the input of the start and stop buttons of generator sets, to achieve status monitoring and fault alarm of power equipment.

Process control industry

In fields such as chemical engineering and pharmaceuticals, signals such as the status of liquid level switches, pressure switches, and safety valves in storage tanks are collected to ensure the safety monitoring of the production process.

For example, when the pressure in the reaction vessel is too high, the module receives the pressure switch signal and transmits it to the PLC, triggering the emergency shutdown program.

Architecture and Municipal Engineering

It is used in building automation systems to collect signals such as access control switches, fire damper status, and water pump start and stop buttons, achieving centralized monitoring and management.

Iv. Wiring and Configuration

Wiring method:

The module is connected to external signals through terminal blocks, usually supporting screw terminals or spring terminals. It is necessary to distinguish between the input common terminal (COM) and the wiring of each channel according to the drawings.

For DC input types, it is necessary to pay attention to the polarity of the power supply (positive and negative poles). For AC input types, it is necessary to distinguish between the live wire (L) and the neutral wire (N).

System configuration:

In PLC configuration:

In PLC programming software (such as Proficy Machine Edition), I/O addresses need to be assigned to the module, and parameters such as input filtering time and signal type (dry contact/active input) need to be set.

Some models support hot plugging (system support is required), which facilitates the replacement of modules during maintenance without affecting system operation.

V. Fault Diagnosis and Maintenance

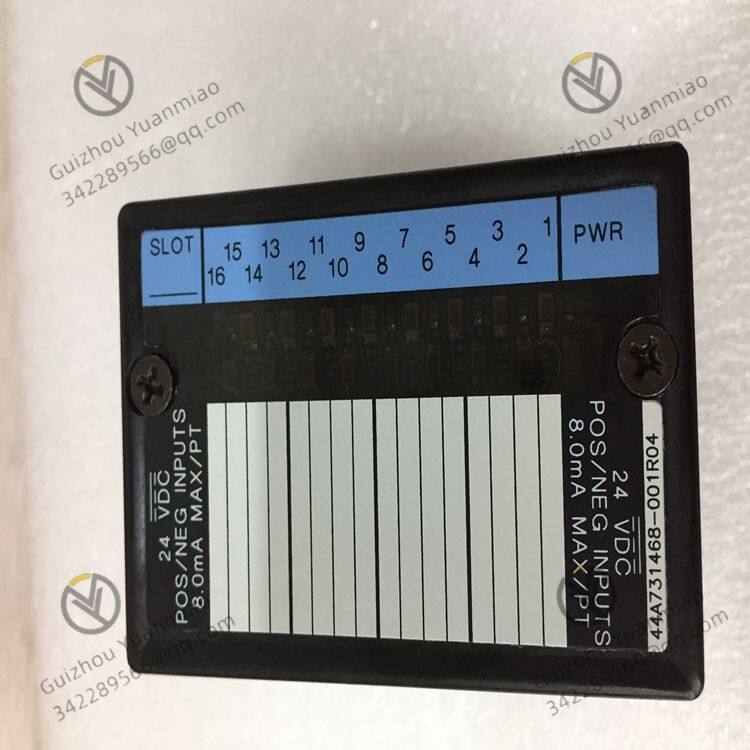

Status indication: The front panel of the module is usually equipped with LED indicator lights to show the input status of each channel (if the light is on, it indicates that the input is "1") as well as the power supply and fault status of the module, facilitating quick location of abnormalities.

Common faults:

No input response in the channel: It may be caused by loose wiring, sensor failure or damage to the internal circuit of the module.

Abnormal indicator light: If the power light does not light up, the power supply circuit needs to be checked. When the fault light is on, the error code needs to be read through the PLC diagnostic program.

Maintenance suggestions: Regularly check if the terminal wiring is tightened to prevent dust accumulation that may affect heat dissipation. In harsh environments, a protective casing can be added.

Vi. Compatibility with other modules

IC670MDL640 is the standard module of the Series 90-70 series. It can be combined with CPU modules of this series (such as IC670CPU780), power modules (such as IC670PWR711) and other I/O modules (such as digital output module IC670MDL740, analog module, etc.) to form a complete control system, and is suitable for medium and large-scale industrial automation projects.

Summary

The IC670MDL640, with its high reliability and flexible configuration capability, has become a core component for digital signal acquisition in the field of industrial automation. It is mainly used to connect switch-type sensors with PLCS, providing real-time equipment status information for the system and supporting the execution of automation control logic. For more detailed technical parameters or installation manuals, you can refer to the official documentation of GE Fanuc or contact the supplier for support.
