Help CenterTW11/PU/P7100 Projectile Loom Parts Picking Stick D35 And D37
Product Spotlights
Related Products
-
Sulzer Loom Parts Gripper Machine P7100 Picking ShoeUS$ 33MOQ: 20 Pieces -
Shuttle Loom Parts 1511 1515 And GA615 Weaving Machine AccessoriesUS$ 25.5MOQ: 100 Pieces
-
960mm Side Lever For Shuttle Loom Picking Stick 1515-2405B Wooden Spare PartsUS$ 4.5MOQ: 100 Pieces
-
Loom Repair Tools Key Puller Wheel Puller And Other Various Angle RegulationsUS$ 110MOQ: 1 Piece
-
Loom Buffer Band B404R B407R B408R B409R B410R 3300-2 And R00-1 Textile Rubber Spare Parts For Picking SetUS$ 2.2MOQ: 500 Pieces

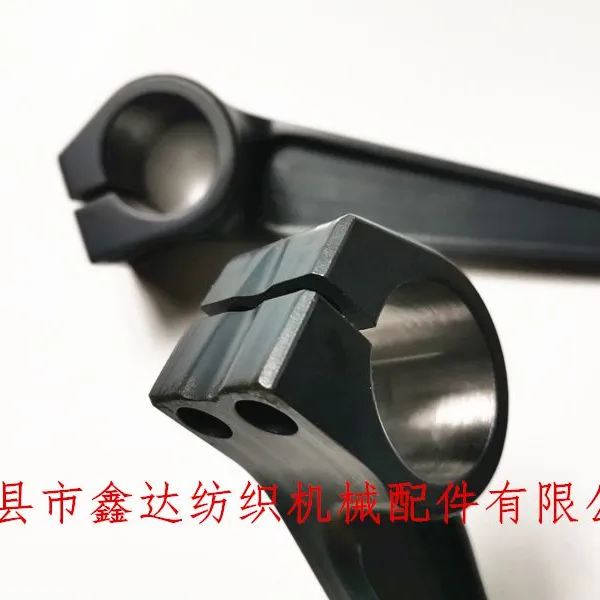

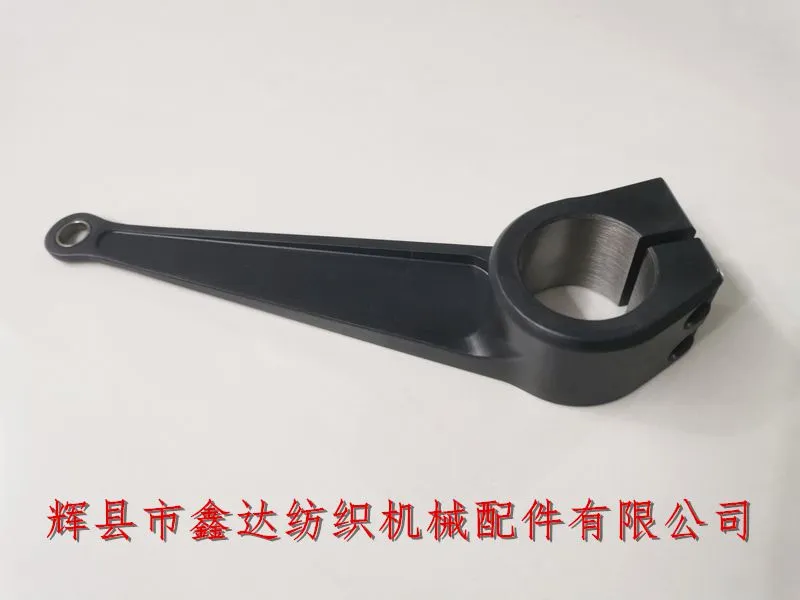

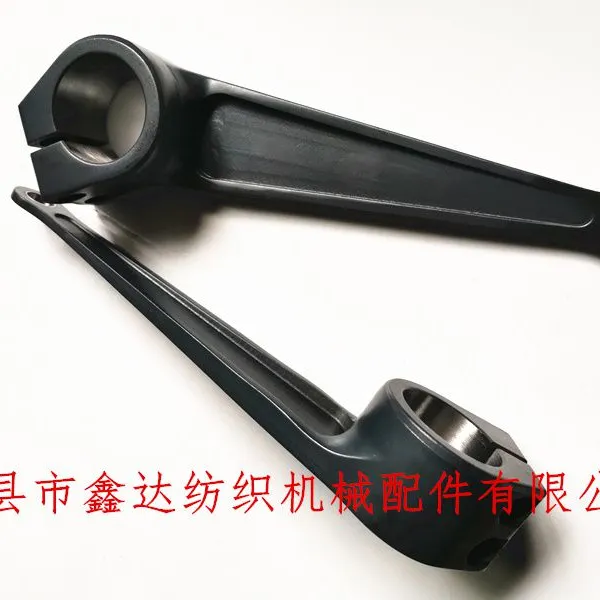

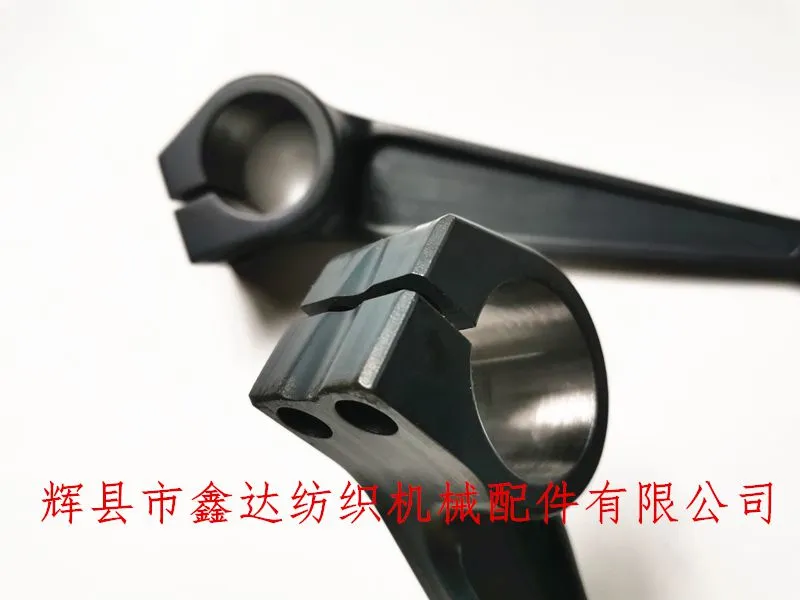

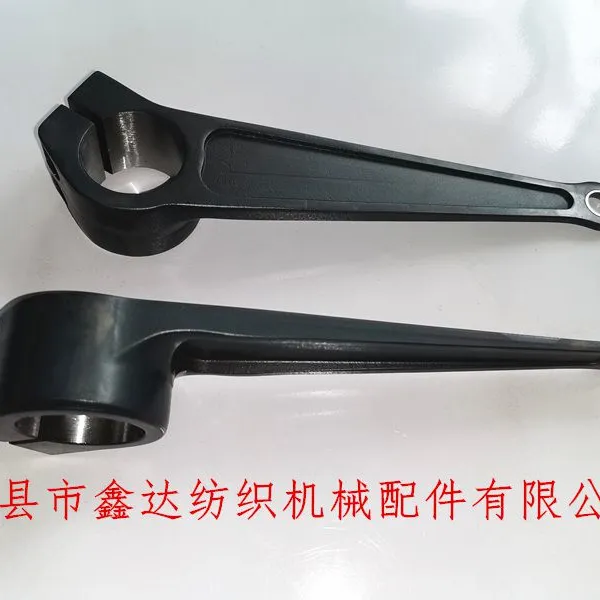

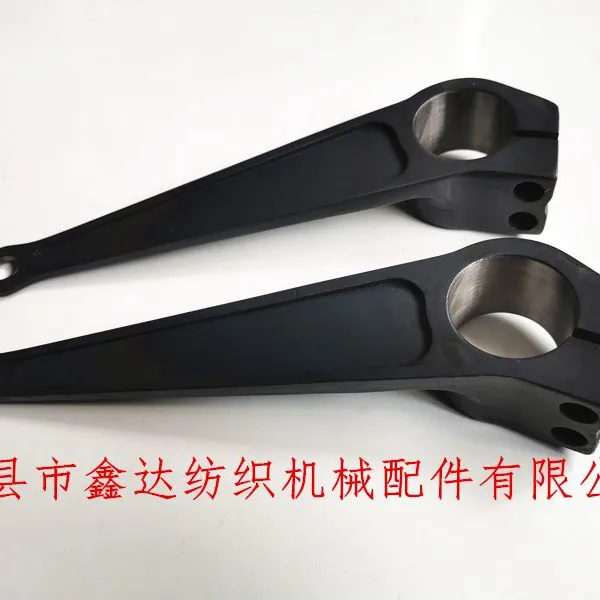

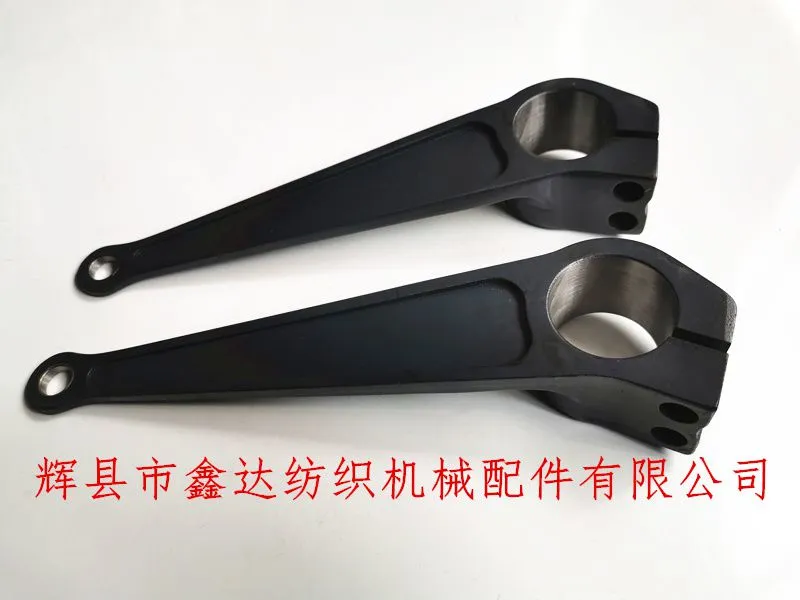

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides accessories for D35 Picking Stick 911 822 024 Sulzer Gripper Machine Parts. TW11 Projectile Loom Parts, Pu Gripper Loom Accessories, P7100 Sulzer Loom Parts, The dimensions of the Picking Stick are: total length (linear length) is 230mm, the diameter of the large hole is 35mm, the diameter of the small hole is 11mm, the diameter of the circular hole fixed by two screws is 10.5mm, the expansion joint width of the Picking Stick 911 822 024 is 3.7mm, and the total thickness is 34 mm. D35/D37 Picking Stick, PU/TW Sulzer accessories, P7100 Gripper machine accessories, Projectile Loom wearing parts.

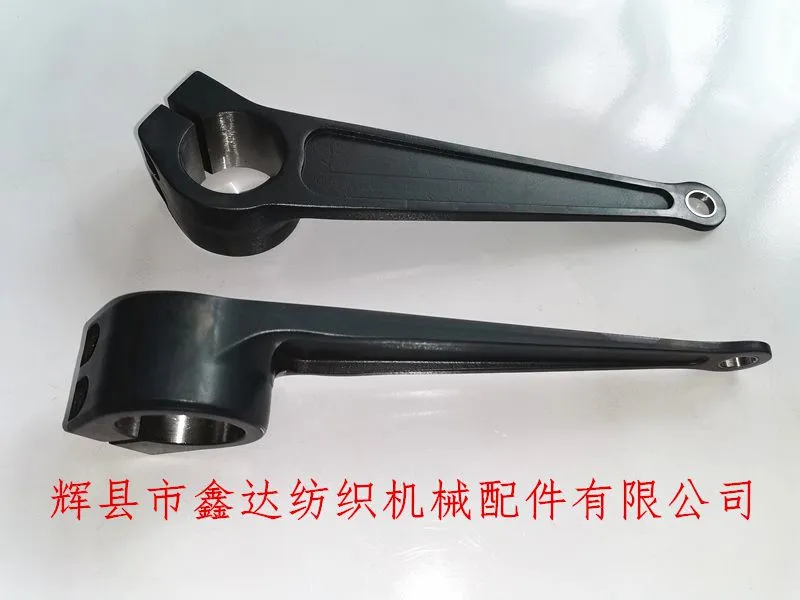

The bushing thickness at the small hole position is 1mm (the inner diameter is 11mm, the outer diameter is 13mm and the thickness is 4mm), the outer length (including expansion joint and outer edge) of the shaft hole is 59.5mm, and the outer width of the bushing position is 22 mm..D37 Picking Stick Art.No911822065,D35 Picking Stick Art.No 911 822 024.
If you need to purchase accessories of Sulzer Shuttle Machine such as P7100 Shuttle Picking Bars, PU Projectile Accessories, TW11 Picking Stick, D35 Sulzer Shuttle Bars and D37 Gripper Picking Stick, please consult Mr. Yang of our company, and we sincerely welcome your visit and guidance!
The weight of a single D35 shuttle bar (Picking Stick 911 822 024) is about 501g, and the thickness of the outer edge of the dragon rib gradually changes from 9.5mm to 4 mm; The center distance between the big hole and the small hole in the above picture is 183.2mm (the distance between the edges of the two holes is 160.2mm).
