Help CenterF18 Picking Stick Stud Steel Castings For 1511 1515 And GA615 Shuttle Looms
Product Spotlights
Related Products
-
F14/F15 Picking Stick Cap F16 Cross Cannon Automatic Loom Parts Multi And Dobby Loom AccessoriesUS$ 4.2MOQ: 100 Pieces -
Dobby Loom Parts Jack Lever 5130 Textile Accessory Large BladeUS$ 9.2MOQ: 100 Pieces
-
15.5 Inches Wooden Shuttle And 15 Inches Nylon Shuttle With 215mm Weft Tube Plastic PirnUS$ 5.60MOQ: 500 Pieces
-
Textile Accessory 1515 Dobby And Multi Loom Parts Magazine Box Wheel Picking DiscUS$ 35.5MOQ: 100 Pieces
-
GA615 Shuttle Loom Spare PartsUS$ 2 - 5MOQ: 2000 Pieces

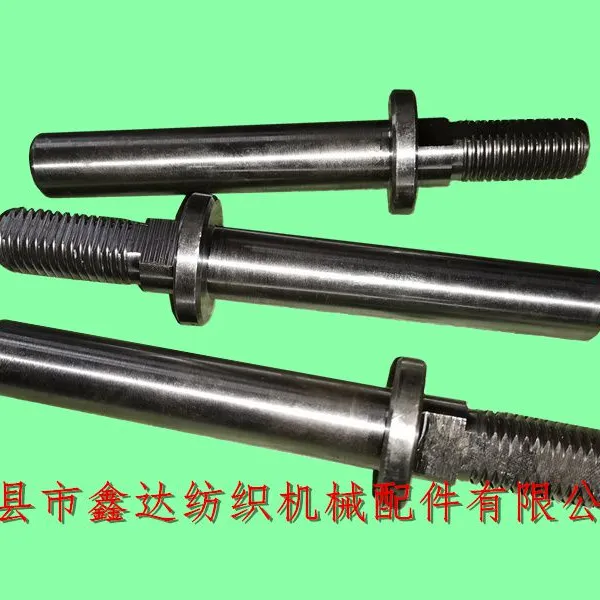

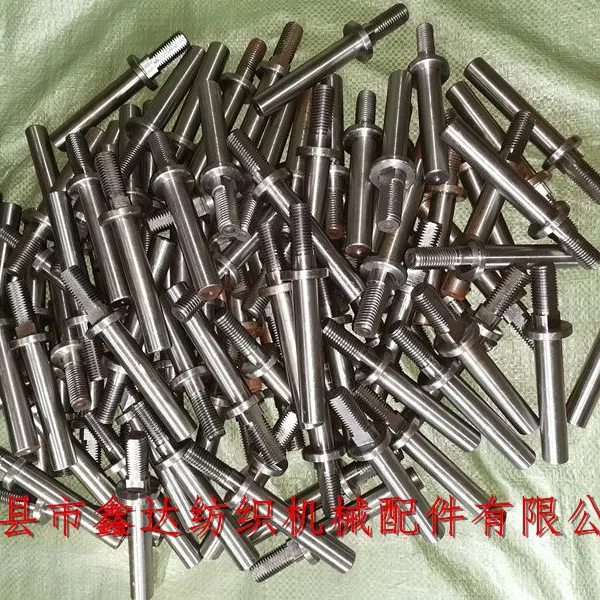

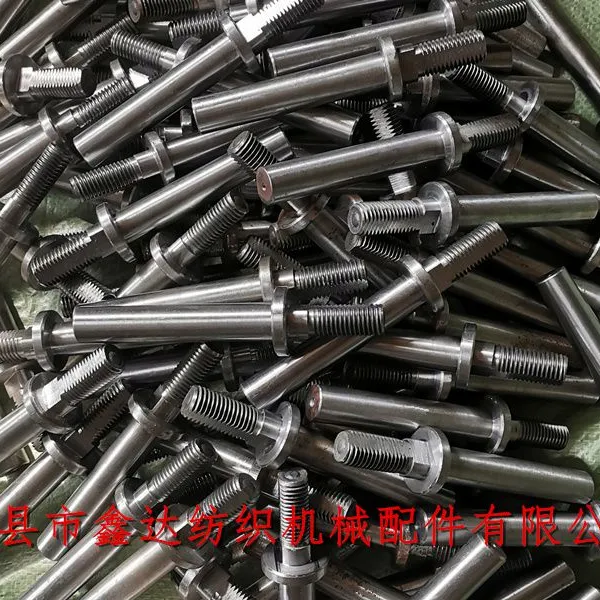

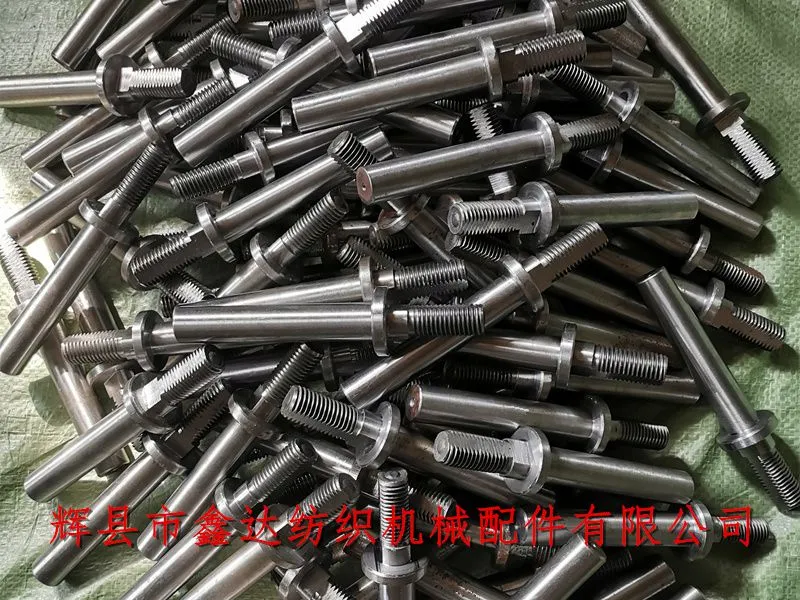

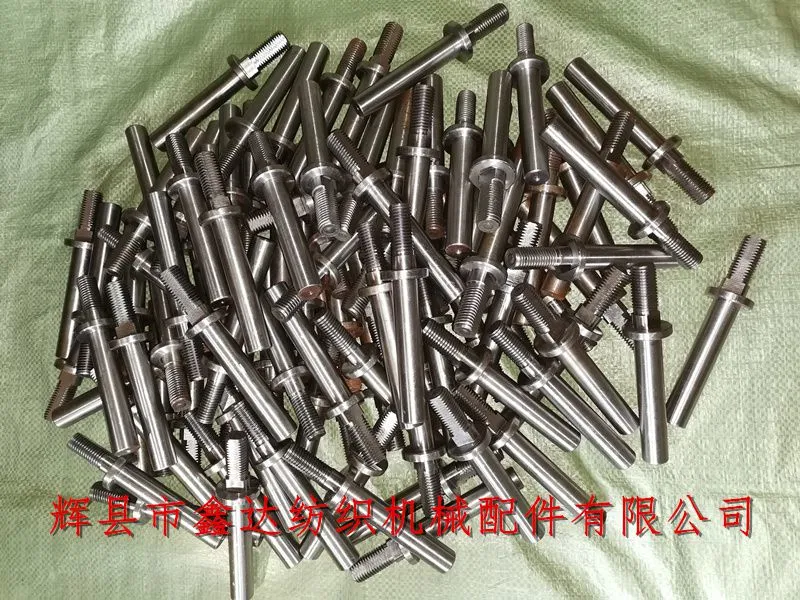

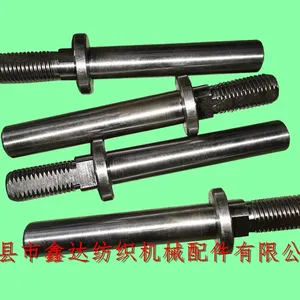

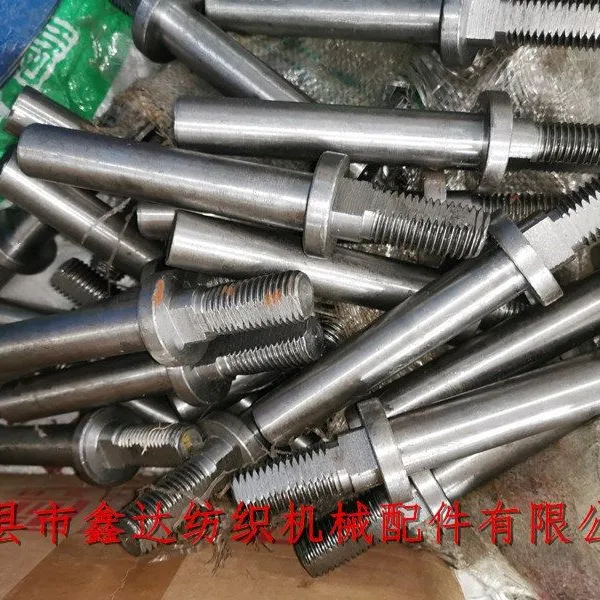

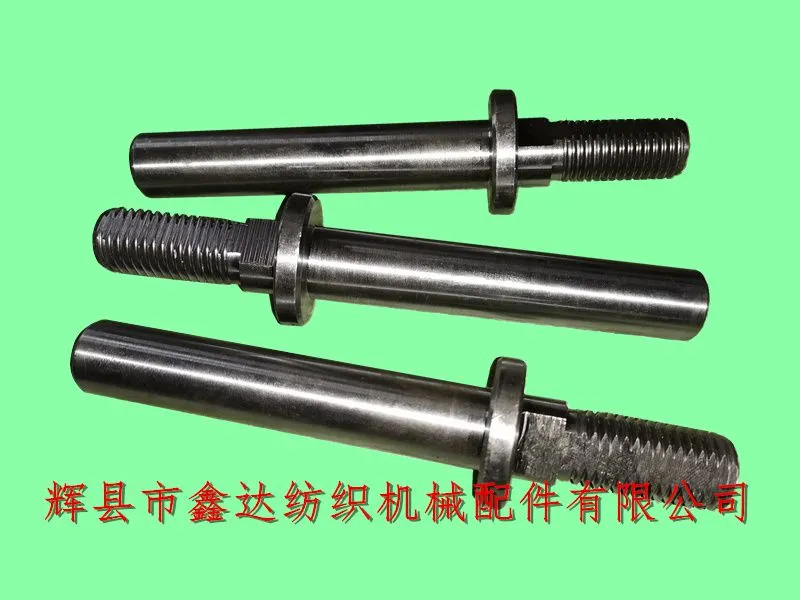

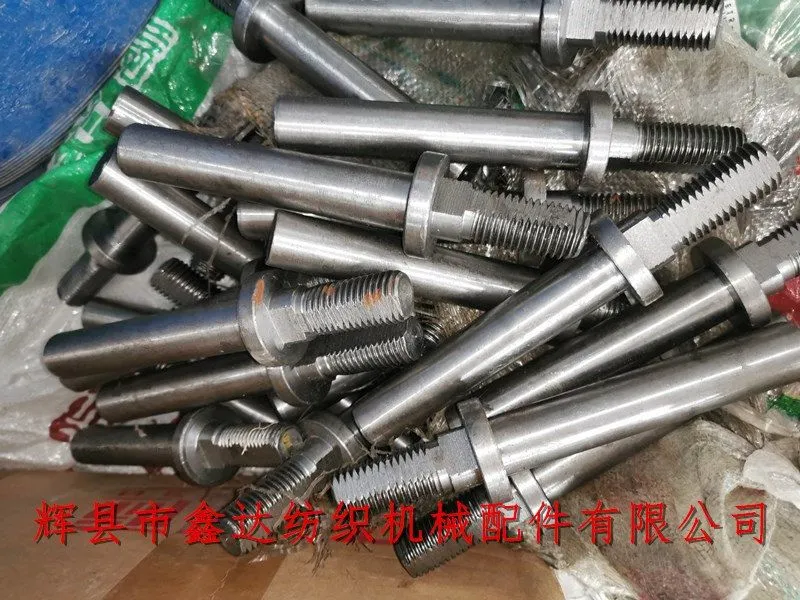

F18 Picking Stick Stud,Fixed with a 20mm diameter screw, thickened to increase strength and significantly reduce damage rate, made of 45 # steel,1515-F18 Picking Stick Stud,GA615-F18A picking stick stud,1511-F18 Shuttle loom Parts, Huixian Xinda Textile Machinery Parts Co., Ltd. provides GA615 weaving machine accessories year-round - weaving machine shuttle board screw core shaft F18A rod shaft accessories. The total length of weaving machine accessory F18A is 177.5mm, the outer diameter of the round stop head is 38.5mm, the thickness is 8.1mm, the diameter of the front flat part is 21.5mm, the flat thickness of the screw pattern is 16.5mm, and the material is 45 # steel.
The front part of the weaving machine's striking shaft is M20 thread, and the outer diameter of the rear shaft body is 21.8mm. It is fixed in the cross gun foot F16 for rotation. GA615 weaving machine is generally a wide width weaving machine, and each machine uses 2 F18A (1 on each side).
The front part of the screw core shaft of the F18A shuttle board is connected to the shuttle board and needs to be matched with the shuttle board when in use (the hole diameter at the big end of the rod is 20.5mm). The packaging of F18A is 50 pieces/box, and the weight of a single F18A is 522 grams.
The usage range of F18 weaving machine, weaving machine, and weaving machine accessories includes various door width weaving machines such as 1511, 1515, GA615, G611, etc.
